ERAYAK 9500W Inverter Generator for Home & Commercial Use
Free US shipping. Sales tax calculated at checkout.
More Power.
More Possibilities.
Meet the ERAYAK TITAN 9000 inverter generator. With 9,000 rated watts, 120/240V selectable output, remote starting, ATS support and parallel capability, TITAN 9000 is built for serious home backup, jobsites, workshops and mobile power needs.
Power That Works Harder.
Powerful inverter technology, flexible voltage options and practical starting features for demanding real-world applications.

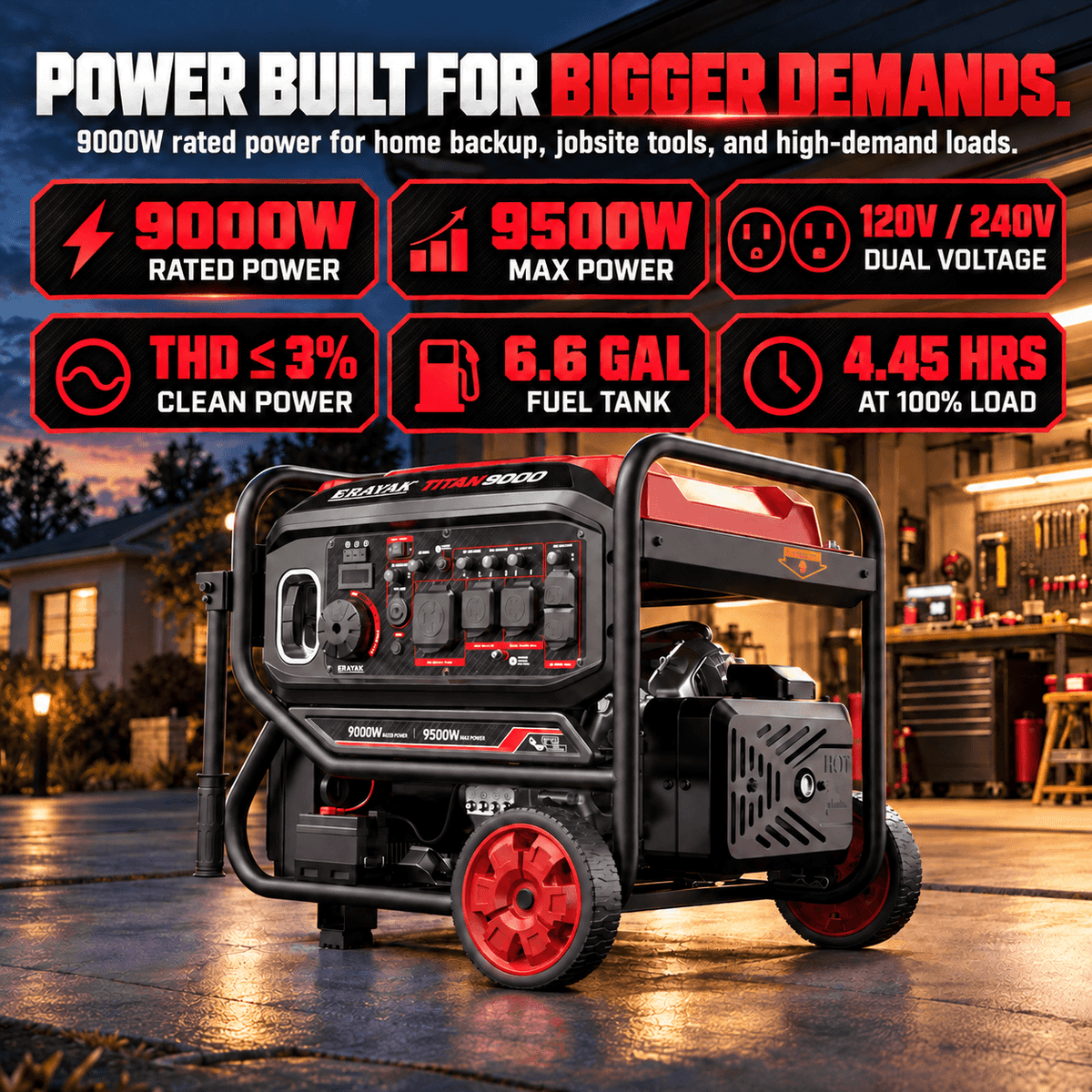

9,500W Maximum Output
Up to 9,500 starting watts and 9,000 rated watts to support demanding power requirements.
120V / 240V Selection
Select the appropriate output voltage for compatible equipment and electrical connections.
3 Starting Methods
Remote, electric and recoil starting provide convenient options for different situations.
THD ≤3%
Low-distortion inverter output helps power compatible electronic devices and equipment.
ATS Support
Supports compatible automatic transfer configurations for properly installed backup power systems.
Parallel Ready
Parallel connection capability allows expansion with manufacturer-approved compatible equipment.

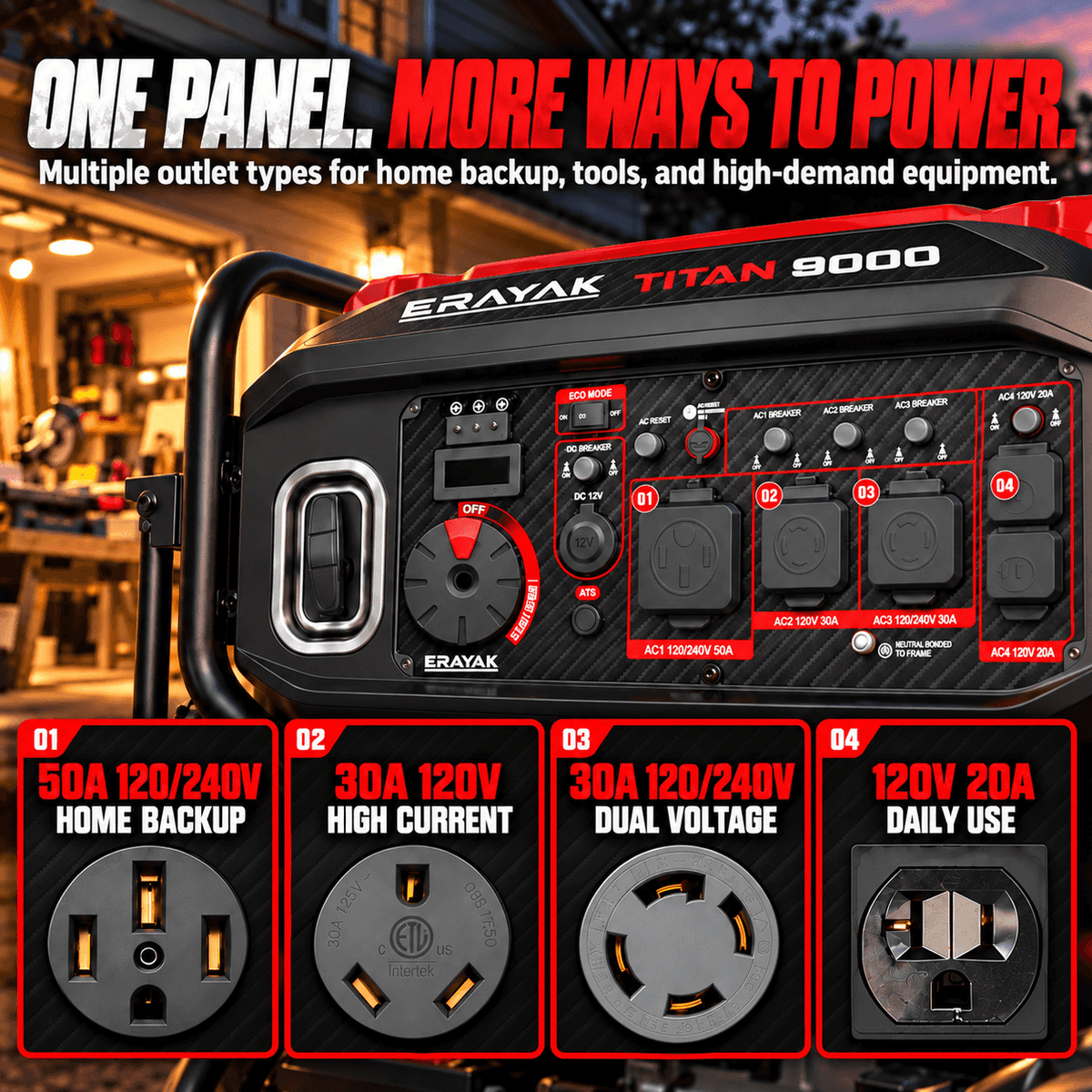

TITAN Power Control Center.
Four connection types give you versatile options for household backup, higher-current equipment and everyday 120V power.
50A · 120/240V
High-capacity connection for compatible home backup systems and equipment.
240V Mode: Up to 9,000W rated total output
30A · 120/240V
Locking receptacle for compatible dual-voltage loads and electrical connections.
30A · 120V
Dedicated high-current 120V connection for compatible tools and equipment.
Exceeding the 30A limit may trigger overload protection.
120V · 20A
Standard household AC power for compatible appliances, tools and accessories.
Power Depends on the Connection.
TITAN 9000 delivers different usable power levels depending on the selected voltage mode and outlet.
50A Outlet · 120V Mode
Maximum available generator output through the 50A connection in 120V mode.
50A Outlet · 240V Mode
Full rated generator output at 240V. Distribute connected 120V loads appropriately across both electrical legs.
30A Outlet · 120V
The 30A receptacle is limited to 3,600W at 120V, even when the generator has more total power available.
The receptacle, breaker, cable, selected voltage and connected equipment all limit usable output. The 9,500W maximum rating is not continuous output. Never exceed rated outlet or circuit capacity, and do not change voltage modes under load.
One Platform.
More Applications.
From household backup power to demanding work environments, TITAN 9000 provides flexible power for properly matched loads.
Home Backup
Essential household circuits
Jobsite
Compatible construction equipment
Workshop
Tools and machinery
RV / Trailer
Mobile electrical setups
Outdoor Events
Power away from fixed outlets
Plan Your Power.
From large home appliances to demanding jobsite tools, TITAN 9000 is designed for serious power needs. Plan for both starting and running watts.
Power Planning Note: These are approximate examples for comparison, not guaranteed appliance ratings. Actual peak and running watts vary by model and conditions. Resistive heating devices generally have little or no additional startup surge. Some motor-driven loads may require substantial starting current. Verify the actual load, electrical leg balance and outlet capacity before use. A 9,000W peak example leaves no meaningful margin for other loads and may exceed individual outlet limits.
Built for Control & Convenience.

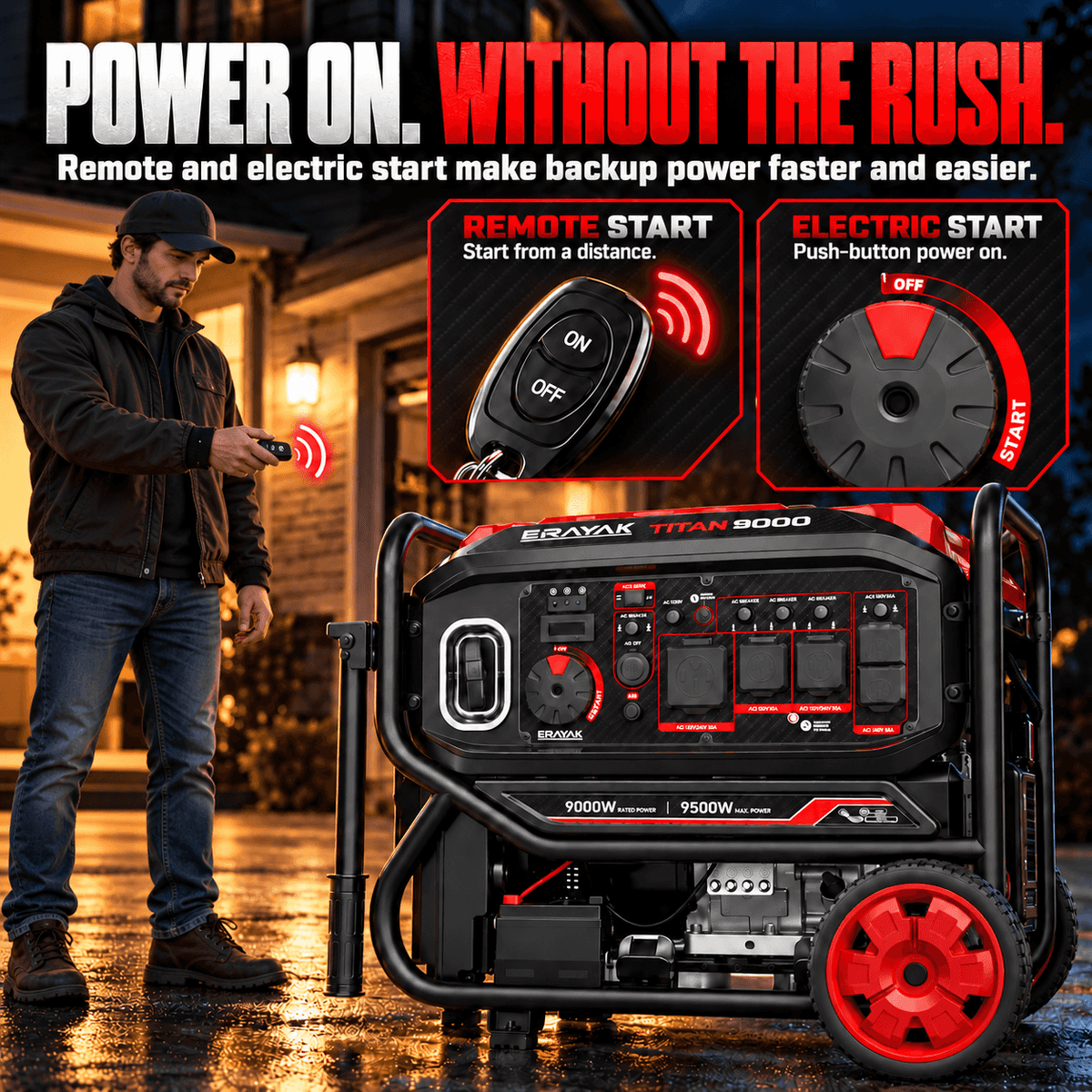

Remote Starting
Start the generator remotely for convenient operation. Always ensure the surrounding area is clear before starting.
Electric & Recoil Start
Additional starting options provide flexibility for daily operation and different working conditions.
ECO Mode
ECO mode adjusts engine operation according to demand. Disable ECO mode when required by large motor starting loads.

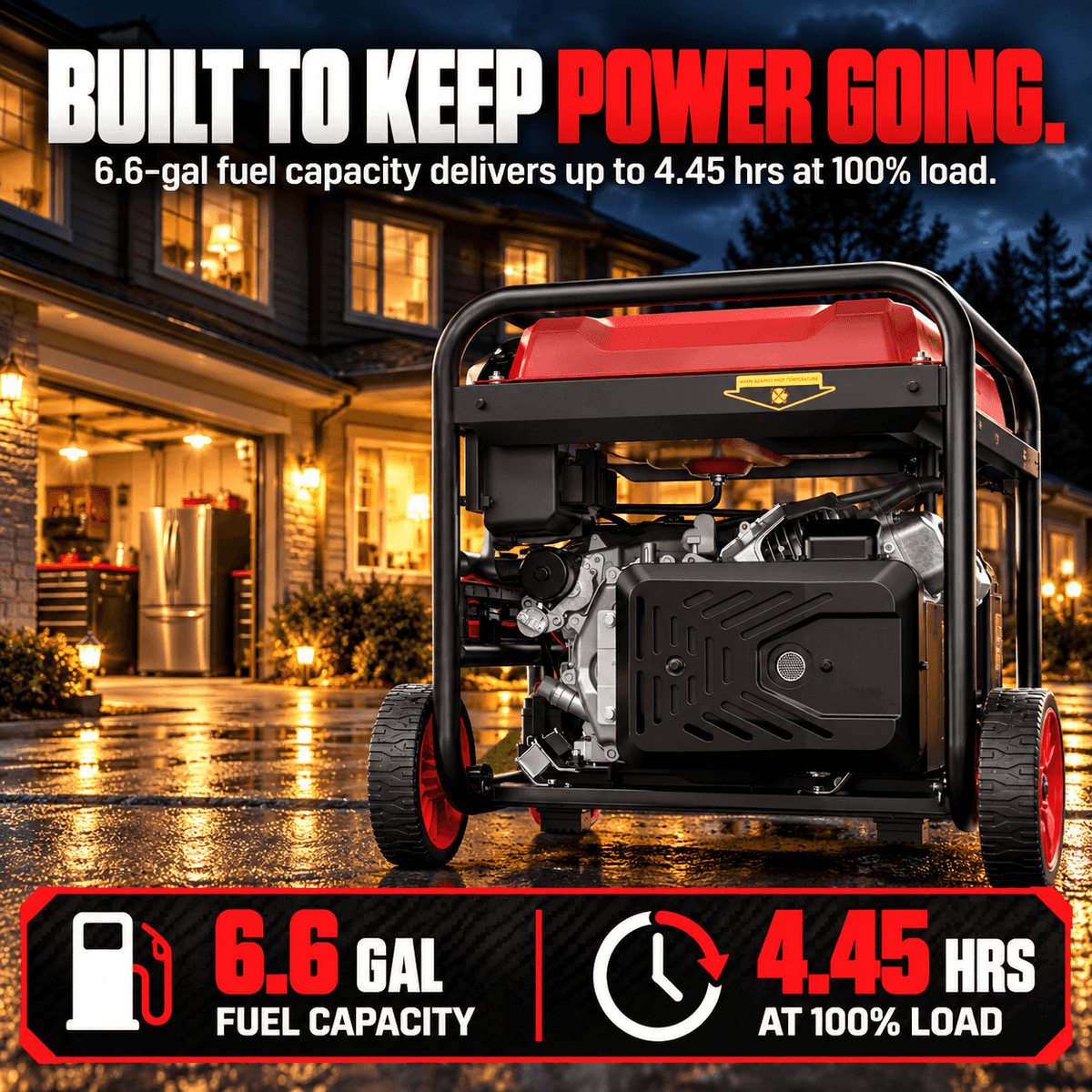

Full-Load Runtime
4.45 hours at 100% load with a 6.6 gal fuel tank, under published test conditions.

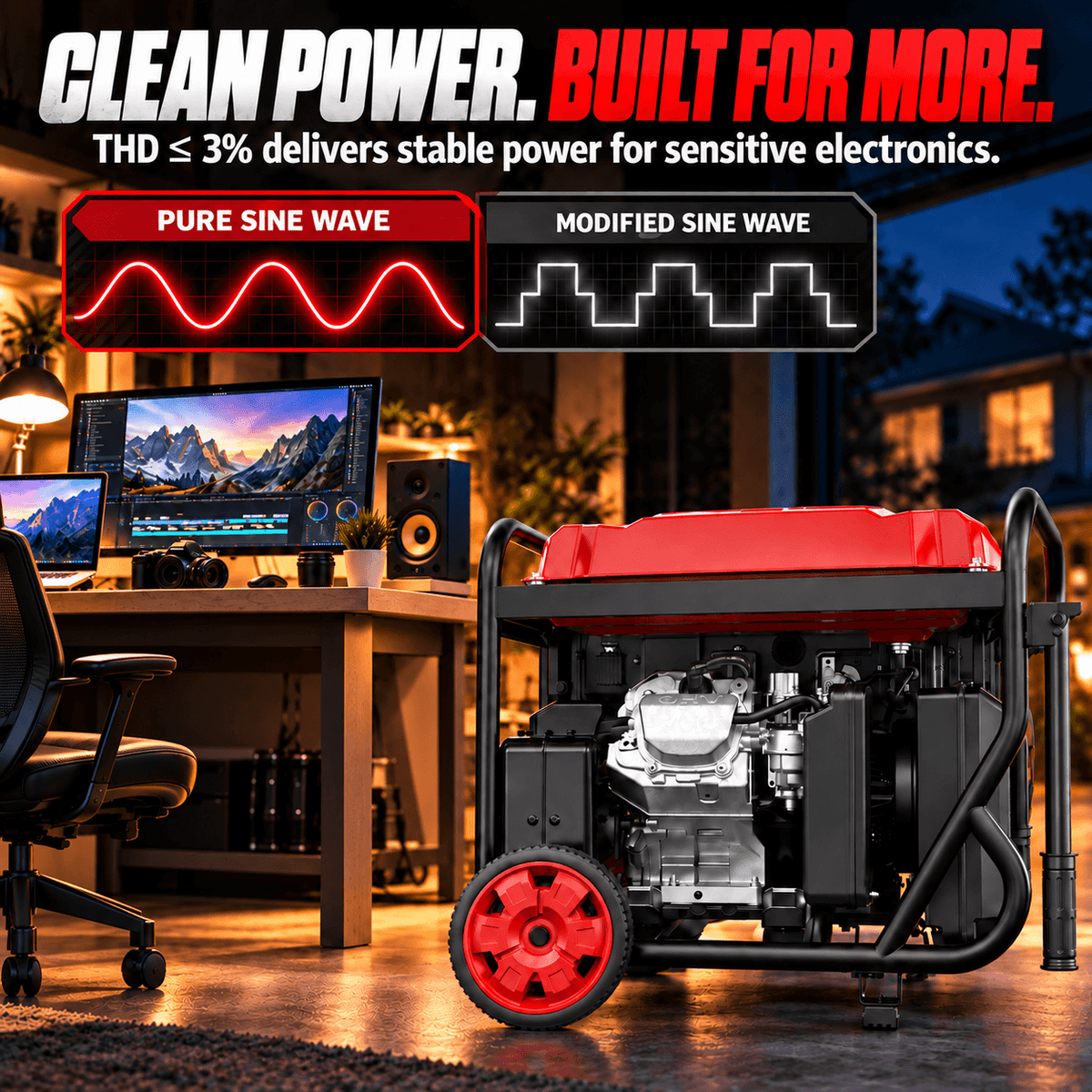

Low-THD Inverter Power
THD ≤3% provides low-distortion output for many compatible electronic and electrical devices.
Noise Performance
Published rating: 76.9 dB(A) measured at 4m / 75% load. Noise varies with load and distance.
Connect Your Home the Right Way.
TITAN 9000 provides powerful 120/240V output, ATS capability and high-current connections for compatible home backup configurations.
Use a Proper Transfer Setup
Have a licensed electrician select and install a listed transfer switch or interlock, a compatible generator inlet and appropriately rated cables according to local electrical requirements. Compatible ATS hardware must match the generator and installation. Never backfeed a household outlet.
Balance Your Circuits
In 240V mode, the rated 9,000W is shared across the electrical system. Distribute 120V loads appropriately across both legs, prioritize essential appliances and allow for motor starting requirements. Individual receptacles may have lower limits.
Operate outdoors only, at least 20 ft from doors, windows and vents, with exhaust directed away from occupied buildings. Never operate in a house, garage, shed, RV or enclosed area, even when doors are open. Use working carbon monoxide alarms. Keep the generator dry, use appropriately rated cords and allow the engine to cool before refueling. Always follow the owner's manual.
| Specification | Details |
|---|---|
| Model | ERAYAK EYG11500iD · US Version |
| Rated Power | 9,000W |
| Maximum Power | 9,500W |
| Voltage/Frequency | 120V/240V · 60Hz |
| Power Factor | 1.0 |
| THD | ≤3% |
| DC Output | 12V / 8.3A |
| Fuel Tank Capacity | 25L |
| Runtime at 100% Load | 4.45 hours |
| Noise Level | 76.9 dB(A) at 4m / 75% load |
| Engine Type | LY192iD |
| Engine Displacement | 459 cc |
| Starting System | Recoil + electric start |
| Oil Capacity | 1.1L |
| Battery | 1.6Ah lead-acid battery |
| Packaging Dimensions | 665 × 557 × 605 mm |
| Net Weight | 69 kg |
- Open-frame inverter generator design for portability.
- Low distortion output (≤3% THD) for sensitive electronics.
- Electronic speed control enhances efficiency and performance.
- Multiple start options: recoil and electric start.
- Large 25L fuel tank for extended runtime (4.45 hours at 100% load).
- Heavy-duty mobility with 8-inch wheels for easy transport.
- Reliable power supply for both home and commercial applications.
- Extended operation reduces the frequency of refueling interruptions.
- Easy to operate with dual starting options for user convenience.
- Low noise output makes it suitable for residential areas.
- Robust build quality ensures durability and long-term usage.
- Optimized for safety with built-in features to prevent overheating and overloading.
- Place the generator outdoors in a dry, well-ventilated area.
- Ensure fuel tank is filled with the appropriate fuel before starting.
- Switch on the battery if using electric start or pull the recoil starter rope.
- Connect your devices using compatible NEMA outlets.
- Monitor the generator performance through the LCD display during operation.
This 9500W generator is excellent for:
- Home backup during power outages.
- Commercial construction sites requiring portable power.
- Outdoor events and parties needing reliable electricity.
- Recreational uses such as camping or RV powering.
- Regularly check and change the engine oil to maintain performance.
- Clean or replace the air filter as needed to avoid clogs.
- Store in a dry location when not in use, away from moisture.
- Ensure cooling vents are clear of obstructions.
- Inspect fuel lines and connections for leaks or wear periodically.
- Perform a full maintenance check every 50 hours of operation.
- Keep the generator clean from dirt and debris.
- Scheduled oil changes every 100 hours or annually, whichever comes first.
- Check battery charge regularly for optimal performance.
| Material | Use |
|---|---|
| Steel | Frame and base construction for durability. |
| Plastic | Fuel tank and casing for lightweight portability. |
This inverter generator is designed with eco-friendly features, reducing emissions and ensuring lower fuel consumption for sustainability.
- EPA Certified
- CARB Compliant
- ISO 9001 Quality Management Certification
- Meets US safety and emission standards.
- Conforms to the NEMA receptacle and generator performance requirements.

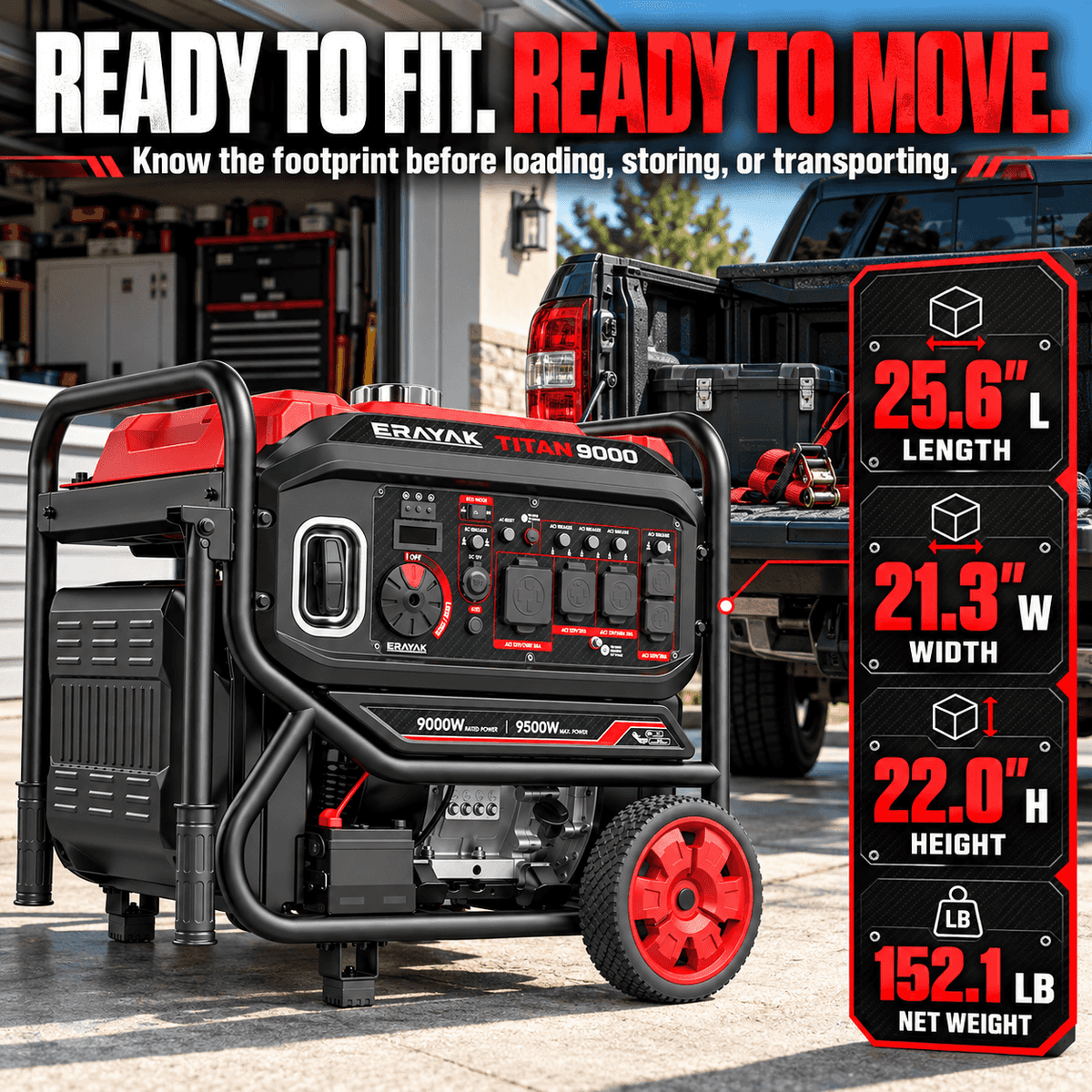

| Dimension | Measurement |
|---|---|
| Product Dimensions | 650 × 542 × 560 mm |
| Packaging Dimensions | 665 × 557 × 605 mm |
- Ensure the generator is placed outdoors in a well-ventilated area.
- Connect the generator to the appropriate NEMA outlet via extension cords.
- Follow the user manual for connecting to home electrical systems using transfer switches.
- Start the generator and check all connections before use.
More Power.
More Possibilities.
Meet the ERAYAK TITAN 9000 inverter generator. With 9,000 rated watts, 120/240V selectable output, remote starting, ATS support and parallel capability, TITAN 9000 is built for serious home backup, jobsites, workshops and mobile power needs.
Power That Works Harder.
Powerful inverter technology, flexible voltage options and practical starting features for demanding real-world applications.
9,500W Maximum Output
Up to 9,500 starting watts and 9,000 rated watts to support demanding power requirements.
120V / 240V Selection
Select the appropriate output voltage for compatible equipment and electrical connections.
3 Starting Methods
Remote, electric and recoil starting provide convenient options for different situations.
THD ≤3%
Low-distortion inverter output helps power compatible electronic devices and equipment.
ATS Support
Supports compatible automatic transfer configurations for properly installed backup power systems.
Parallel Ready
Parallel connection capability allows expansion with manufacturer-approved compatible equipment.
TITAN Power Control Center.
Four connection types give you versatile options for household backup, higher-current equipment and everyday 120V power.
50A · 120/240V
High-capacity connection for compatible home backup systems and equipment.
240V Mode: Up to 9,000W rated total output
30A · 120/240V
Locking receptacle for compatible dual-voltage loads and electrical connections.
30A · 120V
Dedicated high-current 120V connection for compatible tools and equipment.
Exceeding the 30A limit may trigger overload protection.
120V · 20A
Standard household AC power for compatible appliances, tools and accessories.
Power Depends on the Connection.
TITAN 9000 delivers different usable power levels depending on the selected voltage mode and outlet.
50A Outlet · 120V Mode
Maximum available generator output through the 50A connection in 120V mode.
50A Outlet · 240V Mode
Full rated generator output at 240V. Distribute connected 120V loads appropriately across both electrical legs.
30A Outlet · 120V
The 30A receptacle is limited to 3,600W at 120V, even when the generator has more total power available.
The receptacle, breaker, cable, selected voltage and connected equipment all limit usable output. The 9,500W maximum rating is not continuous output. Never exceed rated outlet or circuit capacity, and do not change voltage modes under load.
One Platform.
More Applications.
From household backup power to demanding work environments, TITAN 9000 provides flexible power for properly matched loads.
Home Backup
Essential household circuits
Jobsite
Compatible construction equipment
Workshop
Tools and machinery
RV / Trailer
Mobile electrical setups
Outdoor Events
Power away from fixed outlets
Plan Your Power.
From large home appliances to demanding jobsite tools, TITAN 9000 is designed for serious power needs. Plan for both starting and running watts.
Power Planning Note: These are approximate examples for comparison, not guaranteed appliance ratings. Actual peak and running watts vary by model and conditions. Resistive heating devices generally have little or no additional startup surge. Some motor-driven loads may require substantial starting current. Verify the actual load, electrical leg balance and outlet capacity before use. A 9,000W peak example leaves no meaningful margin for other loads and may exceed individual outlet limits.
Built for Control & Convenience.
Remote Starting
Start the generator remotely for convenient operation. Always ensure the surrounding area is clear before starting.
Electric & Recoil Start
Additional starting options provide flexibility for daily operation and different working conditions.
ECO Mode
ECO mode adjusts engine operation according to demand. Disable ECO mode when required by large motor starting loads.
Full-Load Runtime
4.45 hours at 100% load with a 6.6 gal fuel tank, under published test conditions.
Low-THD Inverter Power
THD ≤3% provides low-distortion output for many compatible electronic and electrical devices.
Noise Performance
Published rating: 76.9 dB(A) measured at 4m / 75% load. Noise varies with load and distance.
Connect Your Home the Right Way.
TITAN 9000 provides powerful 120/240V output, ATS capability and high-current connections for compatible home backup configurations.
Use a Proper Transfer Setup
Have a licensed electrician select and install a listed transfer switch or interlock, a compatible generator inlet and appropriately rated cables according to local electrical requirements. Compatible ATS hardware must match the generator and installation. Never backfeed a household outlet.
Balance Your Circuits
In 240V mode, the rated 9,000W is shared across the electrical system. Distribute 120V loads appropriately across both legs, prioritize essential appliances and allow for motor starting requirements. Individual receptacles may have lower limits.
Operate outdoors only, at least 20 ft from doors, windows and vents, with exhaust directed away from occupied buildings. Never operate in a house, garage, shed, RV or enclosed area, even when doors are open. Use working carbon monoxide alarms. Keep the generator dry, use appropriately rated cords and allow the engine to cool before refueling. Always follow the owner's manual.
| Specification | Details |
|---|---|
| Model | ERAYAK EYG11500iD · US Version |
| Rated Power | 9,000W |
| Maximum Power | 9,500W |
| Voltage/Frequency | 120V/240V · 60Hz |
| Power Factor | 1.0 |
| THD | ≤3% |
| DC Output | 12V / 8.3A |
| Fuel Tank Capacity | 25L |
| Runtime at 100% Load | 4.45 hours |
| Noise Level | 76.9 dB(A) at 4m / 75% load |
| Engine Type | LY192iD |
| Engine Displacement | 459 cc |
| Starting System | Recoil + electric start |
| Oil Capacity | 1.1L |
| Battery | 1.6Ah lead-acid battery |
| Packaging Dimensions | 665 × 557 × 605 mm |
| Net Weight | 69 kg |
- Open-frame inverter generator design for portability.
- Low distortion output (≤3% THD) for sensitive electronics.
- Electronic speed control enhances efficiency and performance.
- Multiple start options: recoil and electric start.
- Large 25L fuel tank for extended runtime (4.45 hours at 100% load).
- Heavy-duty mobility with 8-inch wheels for easy transport.
- Reliable power supply for both home and commercial applications.
- Extended operation reduces the frequency of refueling interruptions.
- Easy to operate with dual starting options for user convenience.
- Low noise output makes it suitable for residential areas.
- Robust build quality ensures durability and long-term usage.
- Optimized for safety with built-in features to prevent overheating and overloading.
- Place the generator outdoors in a dry, well-ventilated area.
- Ensure fuel tank is filled with the appropriate fuel before starting.
- Switch on the battery if using electric start or pull the recoil starter rope.
- Connect your devices using compatible NEMA outlets.
- Monitor the generator performance through the LCD display during operation.
This 9500W generator is excellent for:
- Home backup during power outages.
- Commercial construction sites requiring portable power.
- Outdoor events and parties needing reliable electricity.
- Recreational uses such as camping or RV powering.
- Regularly check and change the engine oil to maintain performance.
- Clean or replace the air filter as needed to avoid clogs.
- Store in a dry location when not in use, away from moisture.
- Ensure cooling vents are clear of obstructions.
- Inspect fuel lines and connections for leaks or wear periodically.
- Perform a full maintenance check every 50 hours of operation.
- Keep the generator clean from dirt and debris.
- Scheduled oil changes every 100 hours or annually, whichever comes first.
- Check battery charge regularly for optimal performance.
| Material | Use |
|---|---|
| Steel | Frame and base construction for durability. |
| Plastic | Fuel tank and casing for lightweight portability. |
This inverter generator is designed with eco-friendly features, reducing emissions and ensuring lower fuel consumption for sustainability.
- EPA Certified
- CARB Compliant
- ISO 9001 Quality Management Certification
- Meets US safety and emission standards.
- Conforms to the NEMA receptacle and generator performance requirements.
| Dimension | Measurement |
|---|---|
| Product Dimensions | 650 × 542 × 560 mm |
| Packaging Dimensions | 665 × 557 × 605 mm |
- Ensure the generator is placed outdoors in a well-ventilated area.
- Connect the generator to the appropriate NEMA outlet via extension cords.
- Follow the user manual for connecting to home electrical systems using transfer switches.
- Start the generator and check all connections before use.
Frequently Asked Questions
-

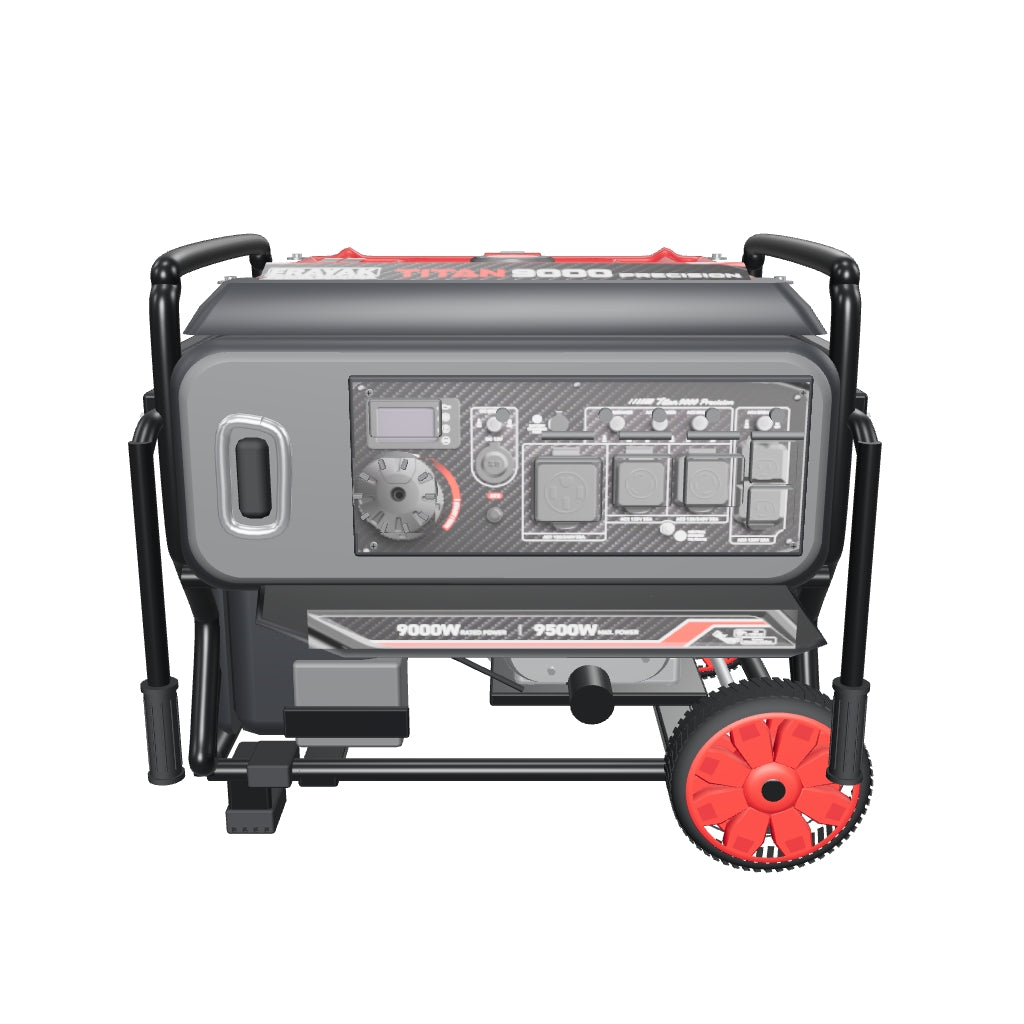

What are the power specifications of the ERAYAK 9500W Inverter Generator?
The ERAYAK 9500W Inverter Generator features a rated power of 9,000W and a maximum power of 9,500W, operating at a voltage of 120/240V and 60Hz. It provides a reliable power source for both home and commercial use.
-
How long can the generator run at full load?
The generator has a fuel capacity of 25L and offers a runtime of 4.45 hours at 100% load. However, actual runtime may vary based on load, operating conditions, and mode.
-
Is this generator suitable for sensitive electronics?
Yes, the ERAYAK 9500W Inverter Generator features a total harmonic distortion (THD) of ≤3%, which makes it compatible with most sensitive electronics. However, compatibility also depends on factors such as voltage, frequency, and specific manufacturer requirements.
-
What kind of start mechanism does this generator have?
The generator is equipped with a dual starting system that includes both recoil and electric start options, allowing for easy operation.
-
What is the noise level of the ERAYAK 9500W Inverter Generator?
The noise level is measured at 76.9 dB(A) at 4 meters with 75% load. It is designed to operate with relatively low noise, making it suitable for various environments.
-
Can this generator be used for outdoor activities?
Yes, the ERAYAK 9500W Inverter Generator is ideal for outdoor use, especially for activities such as camping, tailgating, or as a backup for home and commercial needs. Always ensure it is operated outdoors with proper ventilation to avoid carbon monoxide buildup.
-
What safety features does this generator include?
The generator includes safety measures to prevent carbon monoxide poisoning, such as CO shutoff capabilities (if specified). It's essential to follow all safety guidelines, including running it outdoors and away from windows and entrances.
-
What are the dimensions and weight of the ERAYAK 9500W Inverter Generator?
The generator measures 650 × 542 × 560 mm and has a net weight of 69 kg, making it portable yet sturdy for various applications.
