Expanded AC Output
Includes 120V/20A and 115V/15A AC socket groups.
Erayak 3000W Power Inverter, 12V DC to 120V AC, LCD Display, Modified Sine Wave
Erayak 3000W Power Inverter, 12V DC to 120V AC, LCD Display, Modified Sine Wave
Sale price$220.00 USD
Regular price$260.00 USD
Description
ERAYAK TANK3000
3000W 12V Power Inverter6000W Surge · Modified Sine Wave
Convert 12V battery power into 115V AC modified sine wave output with 3000W continuous power. Maximum TANK Series output with expanded AC connections and a 110V direct-connect terminal.
3000WContinuous power
6000WSurge power
12VBattery input
115V ACNominal output
7.2 lbProduct weight
Output & Monitoring
AC and USB Power with LCD Visibility
Monitor connected-battery level, AC output power, input voltage and fault messages directly on the inverter display.
Connections and System Information
Confirm every connected device supports modified sine wave power and remains within the inverter ratings.

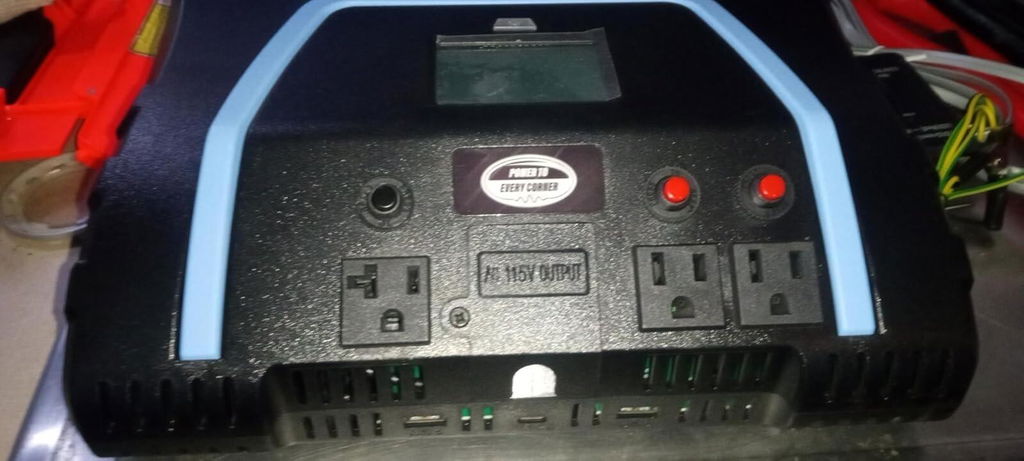

AC Output120V/20A and 115V/15A AC sockets
USB-A + USB-C5V DC, 3.1A shared output
LCD ToggleAC output watts or battery input volts
Remote ControlIncluded

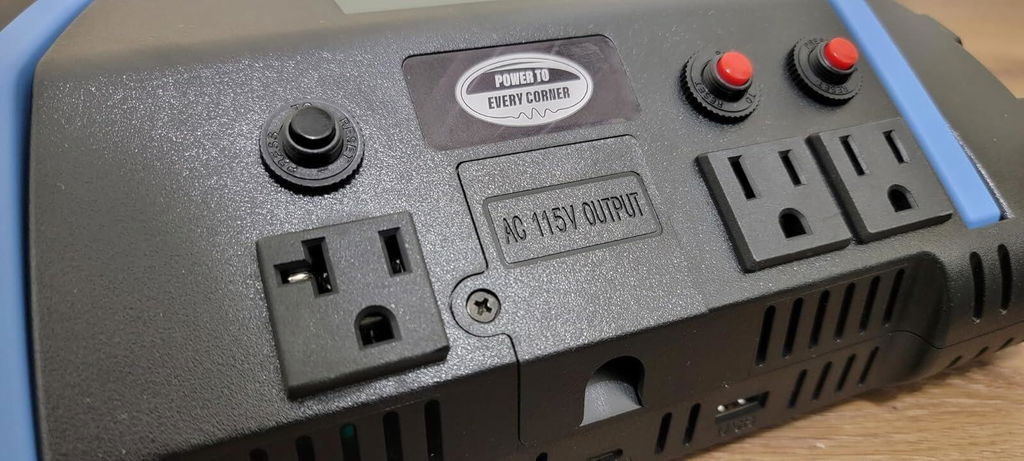

Outlet Reset Buttons
Each AC outlet has its own manual reset button acting as a built-in circuit breaker.
110V Direct Connect
A line, neutral and ground terminal supports external AC output-system connection.
Protection System
Automatic Response Around the 12V System
The inverter monitors battery voltage, internal temperature, output demand and short-circuit conditions.
Low-Voltage ResponseAlarm at 10.5V DC; shutdown at 9.5V DC.
High-Voltage ShutdownShutdown threshold listed at 15.5V DC.
Over-Temperature ProtectionShuts down when internal temperature exceeds the threshold.
Temperature-Controlled FanCooling responds to temperature demand.
Overload ProtectionResponds when power demand exceeds 3000W.
Short-Circuit ProtectionShuts down during an abnormal short-circuit condition.
Low-Battery Alarm
Provides warning before shutdown.
Low-Battery Shutdown
Shuts down under low-input conditions.
High-Voltage Shutdown
Protects against excessive battery input voltage.
Specifications & Package
TANK3000 Product Details
Model-specific information transcribed from the TANK Series user guide.

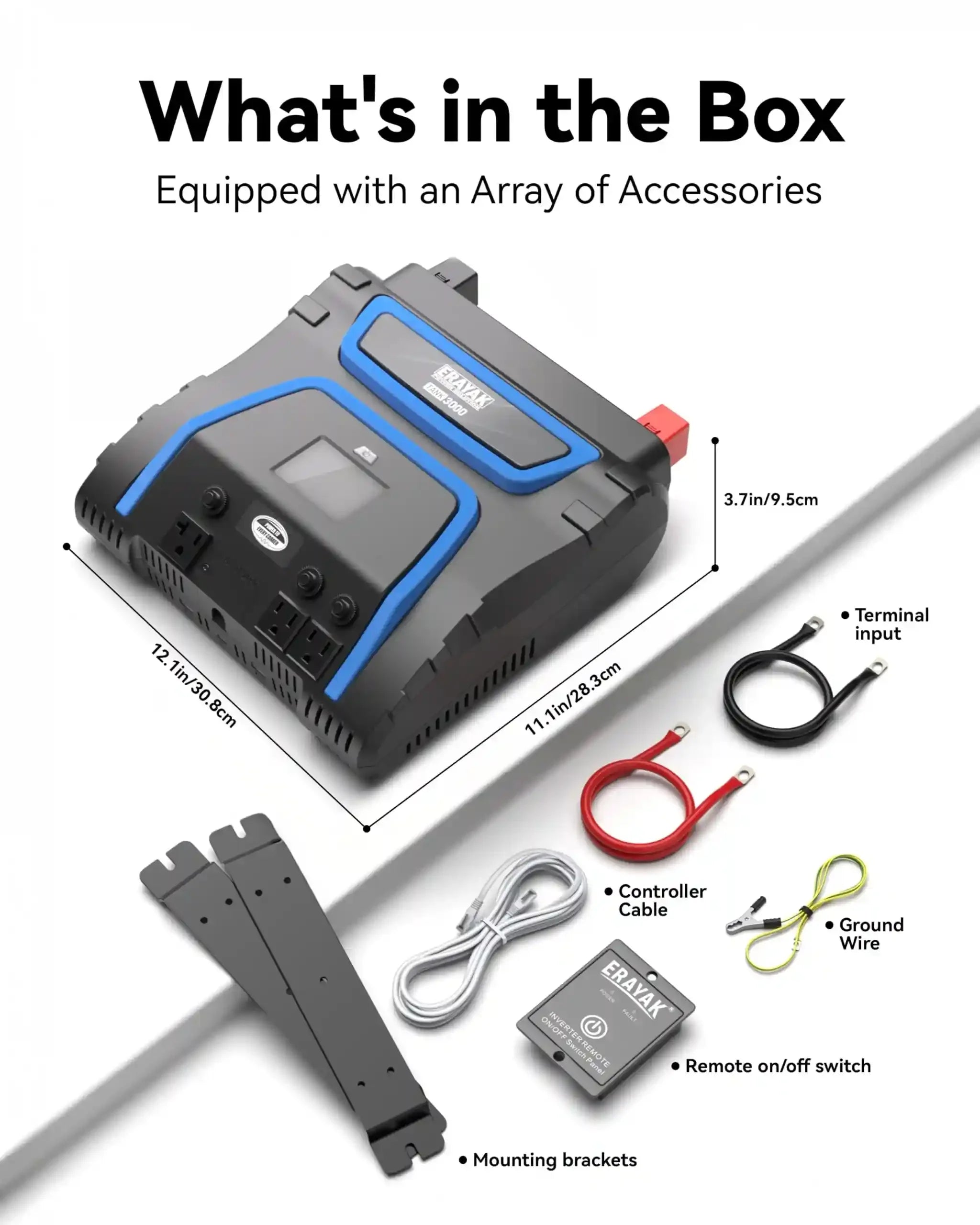

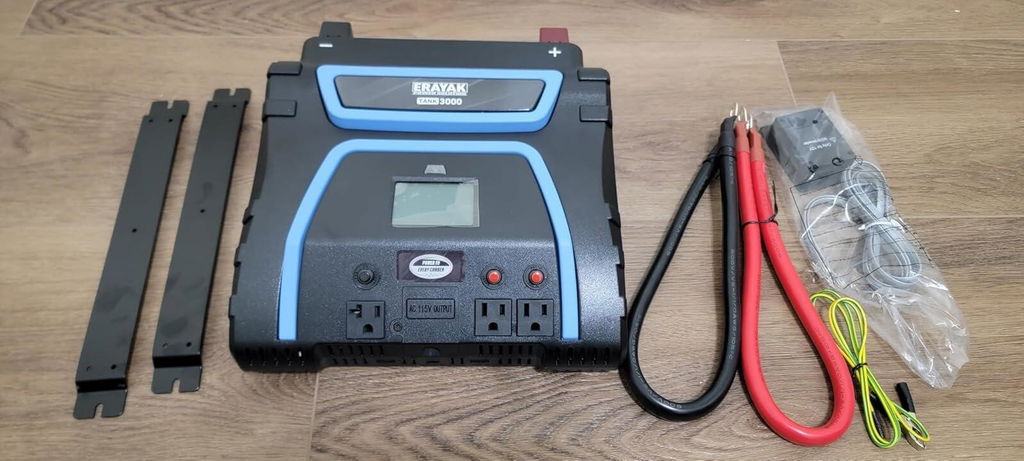

What’s in the Box
- 1× TANK3000 inverter
- 1 pair terminal input cables
- 1× remote on/off switch
- 1× product brochure
Before Connecting a Load
- Confirm modified sine wave compatibility.
- Check continuous wattage and startup surge.
- Use a compatible 12V battery.
- Keep ventilation openings clear.
- Includes a remote on/off switch and a dedicated input port.
| Model | ERAYAK TANK3000 |
|---|---|
| Continuous Power | 3000W |
| Surge Power | 3000W |
| Input | 12V battery system |
| Nominal Output | 115V AC |
| Waveform | Modified sine wave |
| No-Load Draw | <0.45A DC |
| USB | 5V DC, 3.1A shared |
| AC Connections | 120V/20A and 115V/15A AC sockets |
| Remote On/Off | Included |
| Fuse | N/A in manual table |
| Cooling | Temperature-controlled fan |
| Protection | Low/high voltage, over-temperature, overload and short circuit |
| Weight | 7.2 lb / 3.3 kg |
Installation note: The 110V direct-connect terminal uses line, neutral and ground connections. Follow the manual and applicable electrical codes; use a qualified installer where required.
Electrical, Battery & Ventilation Safety
High-current inverter performance depends on correct battery condition, cable connection, ventilation and load management.
- Use only in a dry indoor environment with at least 3 inches (7.5 cm) of ventilation clearance.
- Never cover vents or install the inverter in a fully enclosed compartment.
- Keep away from heat, moisture, conductive dust, flammable gases and fuel fumes.
- Use a compatible 12V battery; do not use frozen or damaged batteries.
- Treat AC outlets like household sockets and keep away from children.
- This inverter is not certified for life-support or medical devices.
- Direct-connect AC wiring must follow the manual, applicable codes and qualified-installation requirements.
Buyer Questions
TANK3000 FAQ
Key checks before installation and operation.
Is TANK3000 pure sine wave?
No. The user guide specifies modified sine wave output. Confirm connected-equipment compatibility before use.
What is the difference between continuous and surge power?
3000W is the continuous rating and 3000W is the surge rating published in the manual. Connected equipment must stay within both limits.

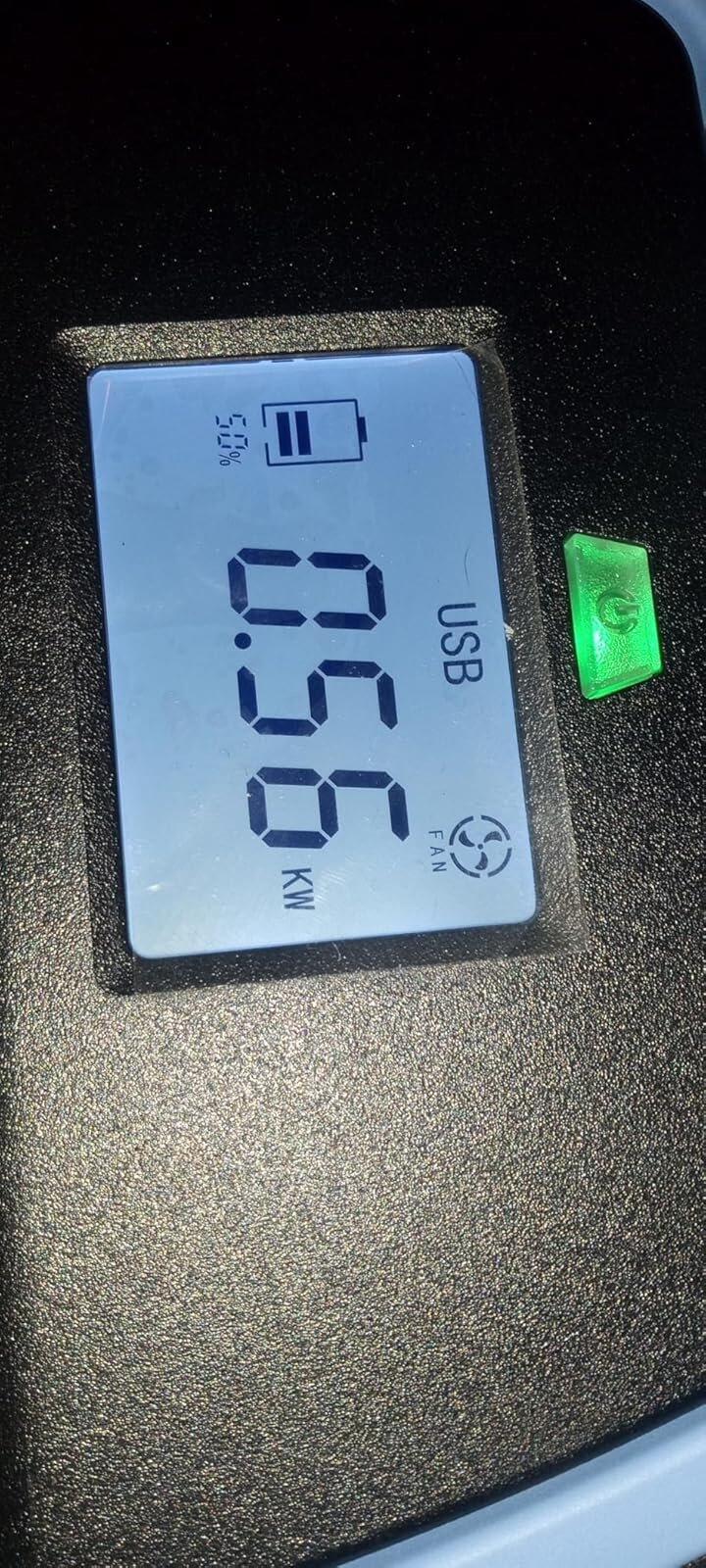

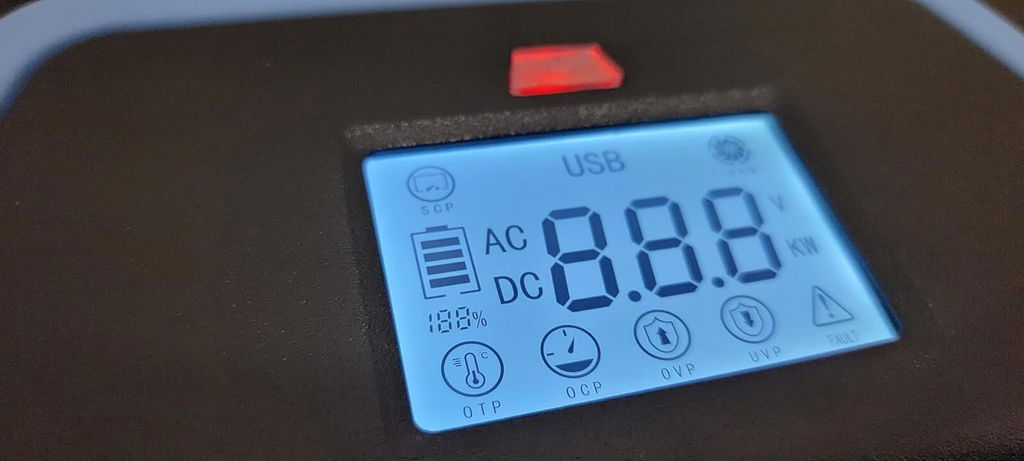

What does the LCD display?
The LCD shows connected-battery level, AC output power in watts, battery input voltage and fault or warning messages.
Why is TANK3000 surge power also listed as 3000W?
The uploaded user guide lists both continuous power and surge power as 3000W. This PDP preserves the published value without assuming a higher surge rating.
How do the AC outlet reset buttons work?
Each AC outlet has a manual reset button acting as a built-in circuit breaker. After an outlet trips, unplug the connected device, wait a few seconds, then press that outlet’s reset button.
What happens during low voltage, overload or overheating?
The inverter displays a fault indication and shuts down under the listed abnormal conditions. Follow the reset procedure in the user guide after correcting the cause.
Can it be used for medical equipment?
No. The manual states that the product is not certified for life-support or medical devices.
ERAYAK Product Support
For product information and support, use the contact address listed in the manual.
support@erayakpower.com
Warranty
| Warranty & Support | Coverage Details |
|---|---|
| Warranty Duration | 1-Year Limited Warranty for eligible ERAYAK TANK3000 purchases, subject to applicable warranty terms, proof of purchase, product condition, and technical verification. |
| Warranty Coverage | Coverage applies to eligible manufacturing defects and product malfunctions that occur under normal use during the applicable warranty period. |
| Technical Diagnosis | ERAYAK Technical Support may assist with troubleshooting issues such as no power output, low-voltage shutdown, high-voltage shutdown, overload or short-circuit shutdown, over-temperature protection, cooling-fan issues, AC outlet reset issues, remote-control issues, and battery-connection problems before confirming the appropriate warranty solution. |
| Replacement Parts Support | For eligible warranty issues, ERAYAK may provide applicable replacement parts, troubleshooting assistance, or other appropriate service solutions after technical verification and warranty review. |
| AC Outlet Reset Support | The TANK3000 includes manual AC outlet reset buttons that function as built-in circuit breakers. ERAYAK Support can assist with reset procedures and related troubleshooting. |
| Battery Connection Support | Support is available for the threaded positive (+) and negative (-) terminals, terminal input cables, compatible 12V battery connection, and related input-power troubleshooting. |
| Remote Control Support | The TANK3000 includes a remote on/off switch and dedicated remote-control input port. ERAYAK Support can assist with remote-control setup and operating questions. |
| Direct-Connect AC Terminal Support | The TANK3000 includes a 110V direct-connect AC terminal. Installation and connection should follow the TANK3000 user guide and applicable electrical requirements. |
| Technical Support | ERAYAK provides assistance with product setup, 12V battery connection, load planning, modified sine wave compatibility, LCD monitoring, remote operation, AC outlet reset procedures, fault diagnosis, ventilation guidance, and after-sales support for the TANK3000. |
| Email Support | support@erayakpower.com Customers may submit proof of purchase, order information, photos, videos, product details, and a description of the issue for technical review. |
| English Phone Support | +1 (573) 455-4565 English-speaking support is available for setup, troubleshooting, warranty questions, replacement-part assistance, and after-sales service. |
| WhatsApp Support | +1 (573) 455-4565 Contact ERAYAK via WhatsApp for convenient technical and after-sales assistance. |
| Warranty Claim Process | Contact ERAYAK Support with your proof of purchase, product model, order information, and a description of the issue. Photos, videos, battery information, connected-device details, installation information, or troubleshooting results may be requested before the appropriate warranty solution is confirmed. |
| Proper Use Requirement | Warranty service is subject to proper operation with a compatible 12V battery, correct polarity, adequate ventilation, appropriate connected loads, and operation within the TANK3000's documented power limits. |
| Service & Repair | Do not perform unauthorized internal repairs or modifications. If the inverter, cables, terminals, remote switch, cooling system, AC outlets, housing, or electrical connections show serious damage, discontinue use and contact ERAYAK Support or qualified service personnel. |
Warranty Note: Warranty service is subject to the applicable ERAYAK warranty terms, proof of purchase, proper operation and maintenance, technical verification, and applicable exclusions. Misuse, incorrect polarity, excessive load, blocked ventilation, improper direct-connect wiring, moisture exposure, unauthorized modification or repair, physical damage, or other operation outside the TANK3000 user guide may affect warranty eligibility.
Shipping Policy
| U.S. Shipping | Details |
|---|---|
| U.S. Warehouses | ERAYAK provides local U.S. fulfillment from warehouses in California, New Jersey, and Georgia. |
| Order Processing | Most orders are confirmed and prepared for shipment within 24 hours after order verification. |
| Tracking Number | A tracking number is provided after the order is shipped so customers can follow the delivery status online. |
| Standard Delivery | Most standard orders are estimated to arrive within 2–4 business days after shipment. |
| Expedited Processing | Expedited service is available for eligible orders. Expedited orders receive priority order confirmation, faster warehouse processing, and priority logistics handling. |
| 2-Business-Day Delivery Option | A 2-business-day delivery option may be available for eligible products and destinations. Availability and any additional shipping charges should be confirmed before ordering. |
| Shipping Coverage | Delivery is available across most locations within the contiguous United States. |
| Hawaii & Offshore Areas | For Hawaii, U.S. islands, offshore territories, or other locations outside the contiguous United States, please contact ERAYAK Support before placing your order to confirm shipping availability and cost. |
| Warehouse Assignment | Orders are fulfilled from the most suitable U.S. warehouse based on product availability and the customer's delivery location. |
| Shipping Support | Email: support@erayakpower.com Phone: +1 (573) 455-4565 WhatsApp: +1 (573) 455-4565 |
Shipping Note: Delivery times are estimates and may vary based on inventory availability, destination, carrier conditions, weather, holidays, and other logistics factors. For urgent, remote-area, or special delivery requests, contact ERAYAK Support before placing your order.
Specifications
| Specification | Details |
|---|---|
| Model | ERAYAK TANK3000 |
| Product Type | 3000W Power Inverter |
| Continuous Power | 3000W |
| Surge Power | 3000W |
| Compatible Power Source | Compatible 12V Battery |
| Nominal AC Output Voltage | 115V AC |
| AC Output Waveform | Modified Sine Wave |
| 120V AC Outlet | 120V / 20A AC Socket |
| 115V AC Outlets | 115V / 15A AC Sockets |
| AC Outlet Reset Buttons | Yes — Manual Reset / Built-In Circuit Breaker Function |
| Direct-Connect AC Terminal | 110V Direct-Connect Terminal |
| USB Ports | USB-A + USB-C |
| USB Output | 5V DC, 3.1A Shared |
| No-Load Power Draw | <0.45A DC |
| LCD Display | Yes |
| Battery Level Indicator | Yes |
| Output Power / Input Voltage Display | Yes |
| Fault Indicator & Warning Messages | Yes |
| Remote On / Off Switch | Yes |
| Remote Control Input Port | Yes |
| Ground Connection | Yes |
| Low Battery Alarm | 10.5V DC |
| Low Battery Shutdown | 9.5V DC |
| High Battery Voltage Shutdown | 15.5V DC |
| Over-Temperature Protection | Yes |
| Cooling Fan | Yes — Temperature-Controlled |

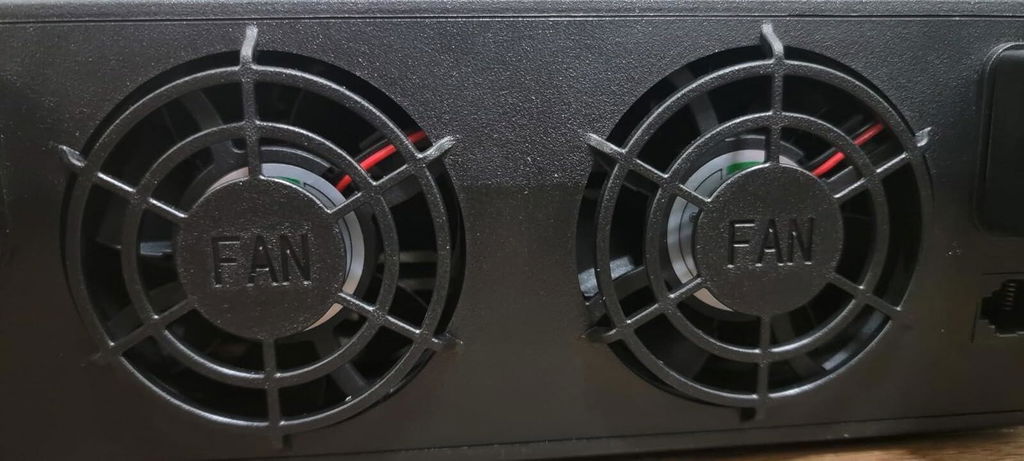

| Cooling Layout | Dual-Fan Rear Cooling Layout |
| Overload & Short-Circuit Protection | Yes |
| Fuse Specification | N/A in User Guide Specification Table |
| Battery Connection | Threaded Positive (+) / Negative (-) Terminals with Terminal Input Cables |
| Dimensions | 11.1 × 12.1 × 3.7 in / 28.3 × 30.8 × 9.5 cm |
| Weight | 7.2 lb / 3.3 kg |
| Package Contents | 1 × TANK3000 Inverter, 1 Pair × Terminal Input Cables, 1 × Remote On/Off Switch, 1 × Product Brochure |
Performance Note: Actual operation depends on battery condition, connected load, startup demand, input voltage, temperature, ventilation, connection method, and device compatibility. The TANK3000 produces modified sine wave AC output, so always verify the connected device's voltage, wattage, startup requirements, and waveform compatibility before use.
Power Efficiency
1. 3000W Continuous Power
The TANK3000 provides up to 3000W of continuous AC power for compatible 12V battery-powered applications.
2. Low No-Load Power Draw
With a no-load power draw of less than 0.45A DC, the TANK3000 helps limit unnecessary battery consumption when the inverter is powered on without a significant connected AC load.
3. Real-Time Power Monitoring
The LCD display lets you monitor battery level, battery input voltage, and AC output power, helping you understand available battery capacity and connected power demand during use.
4. Low-Battery Protection
A low-battery alarm activates at 10.5V DC, while low-battery shutdown occurs at 9.5V DC to help reduce excessive battery discharge.
5. Multiple AC Output Options
The TANK3000 provides 120V/20A and 115V/15A AC outlets together with a 110V direct-connect terminal, giving compatible applications multiple AC connection options.
6. Remote Power Control
The included remote on/off switch allows the inverter to be controlled from a more convenient location when the main unit is positioned away from the operator.
7. Disconnect When Not in Use
The user guide recommends disconnecting the inverter when it is not in use to help prevent accidental battery discharge. The USB ports remain active even when the inverter is switched off.
Built for Reliability
1. Low-Battery Protection
The TANK3000 provides a low-battery alarm at 10.5V DC and shuts down at 9.5V DC to help protect the connected battery from excessive discharge.
2. High-Voltage Protection
The inverter shuts down if battery voltage rises above its safe operating range. The specified high-voltage shutdown point is 15.5V DC.
3. Over-Temperature Protection
The TANK3000 monitors operating temperature and automatically shuts down if the inverter exceeds its safe temperature threshold.
4. Temperature-Controlled Cooling
The built-in temperature-controlled cooling system operates as needed to help manage heat and support stable operation under load.
5. Overload & Short-Circuit Protection
The inverter shuts down when connected power demand exceeds its rated output or when a short circuit is detected.
6. AC Outlet Reset Protection
Each reset-equipped AC outlet uses a manual reset button that functions as a built-in circuit breaker. If an overload or short circuit occurs on the connected device, the affected outlet can shut off to help protect the system.
7. LCD Fault Monitoring
The LCD display provides fault information and warning messages when abnormal operating conditions are detected, helping users identify the issue and take corrective action.
8. Remote On / Off Control
The included remote on/off switch provides convenient control when the inverter is positioned away from the main operating area.
Compatibility
| Compatibility | Typical Equipment | Compatibility Details |
|---|---|---|
| 12V Battery Systems | Compatible 12V vehicle, RV, mobile-work, and standalone battery systems | The TANK3000 is designed to connect directly to a compatible 12V battery using the supplied terminal input cables. Always observe correct battery polarity. |
| Laptops & Electronics | Laptop adapters, chargers, monitors, and compatible AC-powered electronics | Suitable for compatible equipment when the total connected load remains within the TANK3000's rated output and the equipment supports modified sine wave power. |
| Phones & Tablets | Smartphones, tablets, and compatible USB-powered electronics | USB-A and USB-C provide 5V DC output with up to 3.1A shared current for compatible USB devices. |
| Power Tools | Compatible corded tools and battery chargers | Check both normal operating wattage and startup demand before use. Total connected demand must remain within the TANK3000's documented output limits. |
| Small & Medium Appliances | Compatible household, RV, travel, and mobile-work appliances | Appliances may be used when their operating power and startup requirements remain within the TANK3000's rated capacity and they are compatible with modified sine wave output. |
| Multiple Devices | AC and USB-powered electronics operating together | Multiple compatible devices may be connected at the same time as long as their combined demand remains within the TANK3000's rated output. |
| 120V / 20A Equipment | Compatible equipment designed for the TANK3000's 120V / 20A AC outlet | Verify the connected equipment's voltage, current, wattage, and waveform requirements before use. |
| Direct-Connect AC Applications | Compatible external AC output systems | The TANK3000 includes a 110V direct-connect terminal. Wiring must follow the terminal instructions in the user guide, including correct Line, Neutral, and Ground connections. |
| Modified Sine Wave Equipment | Compatible AC-powered equipment designed to operate with modified sine wave power | The TANK3000 produces modified sine wave AC output. Confirm compatibility before connecting equipment that requires pure sine wave or another specific waveform. |
| Remote-Control Applications | RV, truck, van, mobile-work, and battery installations where the inverter is positioned away from the operator | The included remote on/off switch allows convenient power control without requiring direct access to the inverter's main power button. |
| Medical & Life-Support Equipment | Life-support systems and medical devices | Not intended for use. The user guide states that the inverter is not certified for use with life-support or medical devices. |
Important Compatibility Note: The ERAYAK TANK3000 provides up to 3000W continuous power according to the current user guide and is designed for use with a compatible 12V battery. It produces modified sine wave AC output. Always verify connected-device voltage, current, running wattage, startup requirements, and waveform compatibility before use.
Maintenance Guide
Simple Care. Reliable Power.
Keeping your ERAYAK TANK3000 in good operating condition is straightforward. Routine maintenance mainly involves checking battery and AC connections, monitoring battery voltage and connected load, keeping the cooling system clear, and inspecting the remote control, direct-connect terminal, and AC outlet reset system when needed.
| Maintenance Item | When to Check | What to Do |
|---|---|---|
| Battery Connections | Before each use | Check the positive (+) and negative (-) threaded terminals and terminal input cables for secure connection, correct polarity, wear, or visible damage. |
| Battery Voltage | Before and during use | Monitor battery condition using the LCD display and respond to low- or high-voltage warnings when they occur. |
| Connected Load | Before and during use | Keep the total connected demand within the TANK3000's rated output and verify device startup requirements before use. |
| Cooling Fans & Ventilation | During use | Keep the cooling system and ventilation openings unobstructed and maintain at least 3 inches of clearance around the inverter. |
| AC Outlet Reset Buttons | After an outlet overload or short circuit | Disconnect the affected device, wait a few seconds, and press the applicable AC outlet reset button before resuming operation. |
| Direct-Connect AC Terminal | Before use or after wiring service | Check that Line, Neutral, and Ground conductors are securely connected and that no exposed copper strands are outside the terminal block. |
| Remote On / Off Switch | As needed | Check the remote switch and its connection to the inverter if remote operation becomes intermittent or unavailable. |
| LCD & Fault Indicators | During use | Monitor battery level, AC output power, input voltage, and warning messages for signs of abnormal operation. |
| Physical Condition | Before use | Inspect the housing, battery cables, terminals, AC connections, cooling system, remote connection, and outlets for visible damage. |
| Storage | When not in use | Disconnect the inverter from the battery and store it in a dry indoor area away from direct sunlight, heat, moisture, and conductive dust. |
Service Note: The TANK3000 does not require engine-style scheduled maintenance. Regular inspection of battery connections, ventilation, AC connections, remote-control connection, connected load, outlet reset system, and physical condition is the primary maintenance requirement.
1. Battery Connections — Check Before Use
Inspect the terminal input cables and threaded positive (+) and negative (-) terminals before use. Make sure all battery connections are secure and correctly polarized before turning on the inverter.
2. Battery Voltage — Monitor Operating Condition
The TANK3000 provides a low-battery alarm at 10.5V DC and shuts down at 9.5V DC.
If a low-voltage shutdown occurs, recharge or replace the battery and make sure the inverter is connected to a fully charged compatible 12V battery.
The inverter also provides high-voltage shutdown at 15.5V DC. Disconnect any charging source that causes battery voltage to exceed the safe operating range.
3. Load Management — Stay Within Rated Power
The current TANK3000 user guide specifies 3000W continuous power.
If an overload or short-circuit shutdown occurs, disconnect high-power devices and verify that the total connected demand is within the inverter's rated output.
To manually reset the inverter after correcting an overload or short-circuit condition, press and hold the power button for approximately 2 seconds to turn it off, then turn it back on.
4. AC Outlet Reset Buttons — Reset the Affected Outlet
The TANK3000 AC outlets include manual reset buttons that function as built-in circuit breakers.
If an overload or short circuit causes an outlet reset button to pop out, disconnect the connected device, wait a few seconds, and press the reset button to restore operation after the fault has been corrected.
Other AC outlets can continue to function normally when only one outlet has been affected.
5. Cooling & Ventilation — Keep Airflow Clear
Do not cover or block ventilation openings. Allow at least 3 inches (7.5 cm) of clearance around the TANK3000 for proper airflow.
If an over-temperature shutdown occurs, turn off connected devices and allow the inverter to cool for at least 10 minutes. Make sure the cooling system is not blocked and that air can circulate freely before restarting.
6. Direct-Connect AC Terminal — Inspect Wiring Carefully
The TANK3000 includes a 110V direct-connect AC terminal with Line (L), Neutral (N), and Ground (GN) connections.
Before use, make sure each conductor is securely fastened and that no loose copper strands are exposed outside the terminal block.
7. Remote Control — Check Connection When Needed
The TANK3000 includes a remote on/off switch. If remote operation becomes unavailable, inspect the remote switch and its connection to the inverter before further troubleshooting.
8. Battery Discharge — Disconnect When Not in Use
Disconnect the TANK3000 from the battery when it is not in use to help prevent accidental battery discharge.
The user guide notes that the USB ports remain active even when the inverter itself is switched off.
9. Cleaning & Storage — Keep It Dry
Disconnect the inverter from the battery before cleaning, inspection, or storage.
- Keep the inverter away from moisture and conductive dust.
- Do not cover or obstruct the ventilation openings.
- Keep the unit away from direct sunlight and heat sources.
- Do not operate near propane, gasoline, or other flammable gases or fumes.
- Store the TANK3000 in a dry indoor environment.
- Keep the inverter away from children.
10. Battery Safety — Use Proper Precautions
- Follow the battery manufacturer's safety instructions.
- Wear protective gloves and eyewear during installation or maintenance.
- Never smoke or expose batteries to open flames or sparks.
- Do not drop metal tools or conductive objects near the battery terminals.
- Keep soap and water nearby when working around lead-acid batteries.
Important Reminder: Use the TANK3000 with a compatible 12V battery, keep connected demand within the rated output specified in the current user guide, maintain at least 3 inches of ventilation clearance, monitor battery voltage, use the AC outlet reset buttons when required, follow the direct-connect AC terminal instructions, and disconnect the inverter from the battery when it is not in use.
Description
ERAYAK TANK3000
3000W 12V Power Inverter6000W Surge · Modified Sine Wave
Convert 12V battery power into 115V AC modified sine wave output with 3000W continuous power. Maximum TANK Series output with expanded AC connections and a 110V direct-connect terminal.
3000WContinuous power
6000WSurge power
12VBattery input
115V ACNominal output
7.2 lbProduct weight
Output & Monitoring
AC and USB Power with LCD Visibility
Monitor connected-battery level, AC output power, input voltage and fault messages directly on the inverter display.
Connections and System Information
Confirm every connected device supports modified sine wave power and remains within the inverter ratings.
AC Output120V/20A and 115V/15A AC sockets
USB-A + USB-C5V DC, 3.1A shared output
LCD ToggleAC output watts or battery input volts
Remote ControlIncluded
Expanded AC Output
Includes 120V/20A and 115V/15A AC socket groups.
Outlet Reset Buttons
Each AC outlet has its own manual reset button acting as a built-in circuit breaker.
110V Direct Connect
A line, neutral and ground terminal supports external AC output-system connection.
Protection System
Automatic Response Around the 12V System
The inverter monitors battery voltage, internal temperature, output demand and short-circuit conditions.
Low-Voltage ResponseAlarm at 10.5V DC; shutdown at 9.5V DC.
High-Voltage ShutdownShutdown threshold listed at 15.5V DC.
Over-Temperature ProtectionShuts down when internal temperature exceeds the threshold.
Temperature-Controlled FanCooling responds to temperature demand.
Overload ProtectionResponds when power demand exceeds 3000W.
Short-Circuit ProtectionShuts down during an abnormal short-circuit condition.
Low-Battery Alarm
Provides warning before shutdown.
Low-Battery Shutdown
Shuts down under low-input conditions.
High-Voltage Shutdown
Protects against excessive battery input voltage.
Specifications & Package
TANK3000 Product Details
Model-specific information transcribed from the TANK Series user guide.
What’s in the Box
- 1× TANK3000 inverter
- 1 pair terminal input cables
- 1× remote on/off switch
- 1× product brochure
Before Connecting a Load
- Confirm modified sine wave compatibility.
- Check continuous wattage and startup surge.
- Use a compatible 12V battery.
- Keep ventilation openings clear.
- Includes a remote on/off switch and a dedicated input port.
| Model | ERAYAK TANK3000 |
|---|---|
| Continuous Power | 3000W |
| Surge Power | 3000W |
| Input | 12V battery system |
| Nominal Output | 115V AC |
| Waveform | Modified sine wave |
| No-Load Draw | <0.45A DC |
| USB | 5V DC, 3.1A shared |
| AC Connections | 120V/20A and 115V/15A AC sockets |
| Remote On/Off | Included |
| Fuse | N/A in manual table |
| Cooling | Temperature-controlled fan |
| Protection | Low/high voltage, over-temperature, overload and short circuit |
| Weight | 7.2 lb / 3.3 kg |
Installation note: The 110V direct-connect terminal uses line, neutral and ground connections. Follow the manual and applicable electrical codes; use a qualified installer where required.
Electrical, Battery & Ventilation Safety
High-current inverter performance depends on correct battery condition, cable connection, ventilation and load management.
- Use only in a dry indoor environment with at least 3 inches (7.5 cm) of ventilation clearance.
- Never cover vents or install the inverter in a fully enclosed compartment.
- Keep away from heat, moisture, conductive dust, flammable gases and fuel fumes.
- Use a compatible 12V battery; do not use frozen or damaged batteries.
- Treat AC outlets like household sockets and keep away from children.
- This inverter is not certified for life-support or medical devices.
- Direct-connect AC wiring must follow the manual, applicable codes and qualified-installation requirements.
Buyer Questions
TANK3000 FAQ
Key checks before installation and operation.
Is TANK3000 pure sine wave?
No. The user guide specifies modified sine wave output. Confirm connected-equipment compatibility before use.
What is the difference between continuous and surge power?
3000W is the continuous rating and 3000W is the surge rating published in the manual. Connected equipment must stay within both limits.
What does the LCD display?
The LCD shows connected-battery level, AC output power in watts, battery input voltage and fault or warning messages.
Why is TANK3000 surge power also listed as 3000W?
The uploaded user guide lists both continuous power and surge power as 3000W. This PDP preserves the published value without assuming a higher surge rating.
How do the AC outlet reset buttons work?
Each AC outlet has a manual reset button acting as a built-in circuit breaker. After an outlet trips, unplug the connected device, wait a few seconds, then press that outlet’s reset button.
What happens during low voltage, overload or overheating?
The inverter displays a fault indication and shuts down under the listed abnormal conditions. Follow the reset procedure in the user guide after correcting the cause.
Can it be used for medical equipment?
No. The manual states that the product is not certified for life-support or medical devices.
ERAYAK Product Support
For product information and support, use the contact address listed in the manual.
support@erayakpower.com
Warranty
| Warranty & Support | Coverage Details |
|---|---|
| Warranty Duration | 1-Year Limited Warranty for eligible ERAYAK TANK3000 purchases, subject to applicable warranty terms, proof of purchase, product condition, and technical verification. |
| Warranty Coverage | Coverage applies to eligible manufacturing defects and product malfunctions that occur under normal use during the applicable warranty period. |
| Technical Diagnosis | ERAYAK Technical Support may assist with troubleshooting issues such as no power output, low-voltage shutdown, high-voltage shutdown, overload or short-circuit shutdown, over-temperature protection, cooling-fan issues, AC outlet reset issues, remote-control issues, and battery-connection problems before confirming the appropriate warranty solution. |
| Replacement Parts Support | For eligible warranty issues, ERAYAK may provide applicable replacement parts, troubleshooting assistance, or other appropriate service solutions after technical verification and warranty review. |
| AC Outlet Reset Support | The TANK3000 includes manual AC outlet reset buttons that function as built-in circuit breakers. ERAYAK Support can assist with reset procedures and related troubleshooting. |
| Battery Connection Support | Support is available for the threaded positive (+) and negative (-) terminals, terminal input cables, compatible 12V battery connection, and related input-power troubleshooting. |
| Remote Control Support | The TANK3000 includes a remote on/off switch and dedicated remote-control input port. ERAYAK Support can assist with remote-control setup and operating questions. |
| Direct-Connect AC Terminal Support | The TANK3000 includes a 110V direct-connect AC terminal. Installation and connection should follow the TANK3000 user guide and applicable electrical requirements. |
| Technical Support | ERAYAK provides assistance with product setup, 12V battery connection, load planning, modified sine wave compatibility, LCD monitoring, remote operation, AC outlet reset procedures, fault diagnosis, ventilation guidance, and after-sales support for the TANK3000. |
| Email Support | support@erayakpower.com Customers may submit proof of purchase, order information, photos, videos, product details, and a description of the issue for technical review. |
| English Phone Support | +1 (573) 455-4565 English-speaking support is available for setup, troubleshooting, warranty questions, replacement-part assistance, and after-sales service. |
| WhatsApp Support | +1 (573) 455-4565 Contact ERAYAK via WhatsApp for convenient technical and after-sales assistance. |
| Warranty Claim Process | Contact ERAYAK Support with your proof of purchase, product model, order information, and a description of the issue. Photos, videos, battery information, connected-device details, installation information, or troubleshooting results may be requested before the appropriate warranty solution is confirmed. |
| Proper Use Requirement | Warranty service is subject to proper operation with a compatible 12V battery, correct polarity, adequate ventilation, appropriate connected loads, and operation within the TANK3000's documented power limits. |
| Service & Repair | Do not perform unauthorized internal repairs or modifications. If the inverter, cables, terminals, remote switch, cooling system, AC outlets, housing, or electrical connections show serious damage, discontinue use and contact ERAYAK Support or qualified service personnel. |
Warranty Note: Warranty service is subject to the applicable ERAYAK warranty terms, proof of purchase, proper operation and maintenance, technical verification, and applicable exclusions. Misuse, incorrect polarity, excessive load, blocked ventilation, improper direct-connect wiring, moisture exposure, unauthorized modification or repair, physical damage, or other operation outside the TANK3000 user guide may affect warranty eligibility.
Shipping Policy
| U.S. Shipping | Details |
|---|---|
| U.S. Warehouses | ERAYAK provides local U.S. fulfillment from warehouses in California, New Jersey, and Georgia. |
| Order Processing | Most orders are confirmed and prepared for shipment within 24 hours after order verification. |
| Tracking Number | A tracking number is provided after the order is shipped so customers can follow the delivery status online. |
| Standard Delivery | Most standard orders are estimated to arrive within 2–4 business days after shipment. |
| Expedited Processing | Expedited service is available for eligible orders. Expedited orders receive priority order confirmation, faster warehouse processing, and priority logistics handling. |
| 2-Business-Day Delivery Option | A 2-business-day delivery option may be available for eligible products and destinations. Availability and any additional shipping charges should be confirmed before ordering. |
| Shipping Coverage | Delivery is available across most locations within the contiguous United States. |
| Hawaii & Offshore Areas | For Hawaii, U.S. islands, offshore territories, or other locations outside the contiguous United States, please contact ERAYAK Support before placing your order to confirm shipping availability and cost. |
| Warehouse Assignment | Orders are fulfilled from the most suitable U.S. warehouse based on product availability and the customer's delivery location. |
| Shipping Support | Email: support@erayakpower.com Phone: +1 (573) 455-4565 WhatsApp: +1 (573) 455-4565 |
Shipping Note: Delivery times are estimates and may vary based on inventory availability, destination, carrier conditions, weather, holidays, and other logistics factors. For urgent, remote-area, or special delivery requests, contact ERAYAK Support before placing your order.
Specifications
| Specification | Details |
|---|---|
| Model | ERAYAK TANK3000 |
| Product Type | 3000W Power Inverter |
| Continuous Power | 3000W |
| Surge Power | 3000W |
| Compatible Power Source | Compatible 12V Battery |
| Nominal AC Output Voltage | 115V AC |
| AC Output Waveform | Modified Sine Wave |
| 120V AC Outlet | 120V / 20A AC Socket |
| 115V AC Outlets | 115V / 15A AC Sockets |
| AC Outlet Reset Buttons | Yes — Manual Reset / Built-In Circuit Breaker Function |
| Direct-Connect AC Terminal | 110V Direct-Connect Terminal |
| USB Ports | USB-A + USB-C |
| USB Output | 5V DC, 3.1A Shared |
| No-Load Power Draw | <0.45A DC |
| LCD Display | Yes |
| Battery Level Indicator | Yes |
| Output Power / Input Voltage Display | Yes |
| Fault Indicator & Warning Messages | Yes |
| Remote On / Off Switch | Yes |
| Remote Control Input Port | Yes |
| Ground Connection | Yes |
| Low Battery Alarm | 10.5V DC |
| Low Battery Shutdown | 9.5V DC |
| High Battery Voltage Shutdown | 15.5V DC |
| Over-Temperature Protection | Yes |
| Cooling Fan | Yes — Temperature-Controlled |
| Cooling Layout | Dual-Fan Rear Cooling Layout |
| Overload & Short-Circuit Protection | Yes |
| Fuse Specification | N/A in User Guide Specification Table |
| Battery Connection | Threaded Positive (+) / Negative (-) Terminals with Terminal Input Cables |
| Dimensions | 11.1 × 12.1 × 3.7 in / 28.3 × 30.8 × 9.5 cm |
| Weight | 7.2 lb / 3.3 kg |
| Package Contents | 1 × TANK3000 Inverter, 1 Pair × Terminal Input Cables, 1 × Remote On/Off Switch, 1 × Product Brochure |
Performance Note: Actual operation depends on battery condition, connected load, startup demand, input voltage, temperature, ventilation, connection method, and device compatibility. The TANK3000 produces modified sine wave AC output, so always verify the connected device's voltage, wattage, startup requirements, and waveform compatibility before use.
Power Efficiency
1. 3000W Continuous Power
The TANK3000 provides up to 3000W of continuous AC power for compatible 12V battery-powered applications.
2. Low No-Load Power Draw
With a no-load power draw of less than 0.45A DC, the TANK3000 helps limit unnecessary battery consumption when the inverter is powered on without a significant connected AC load.
3. Real-Time Power Monitoring
The LCD display lets you monitor battery level, battery input voltage, and AC output power, helping you understand available battery capacity and connected power demand during use.
4. Low-Battery Protection
A low-battery alarm activates at 10.5V DC, while low-battery shutdown occurs at 9.5V DC to help reduce excessive battery discharge.
5. Multiple AC Output Options
The TANK3000 provides 120V/20A and 115V/15A AC outlets together with a 110V direct-connect terminal, giving compatible applications multiple AC connection options.
6. Remote Power Control
The included remote on/off switch allows the inverter to be controlled from a more convenient location when the main unit is positioned away from the operator.
7. Disconnect When Not in Use
The user guide recommends disconnecting the inverter when it is not in use to help prevent accidental battery discharge. The USB ports remain active even when the inverter is switched off.
Built for Reliability
1. Low-Battery Protection
The TANK3000 provides a low-battery alarm at 10.5V DC and shuts down at 9.5V DC to help protect the connected battery from excessive discharge.
2. High-Voltage Protection
The inverter shuts down if battery voltage rises above its safe operating range. The specified high-voltage shutdown point is 15.5V DC.
3. Over-Temperature Protection
The TANK3000 monitors operating temperature and automatically shuts down if the inverter exceeds its safe temperature threshold.
4. Temperature-Controlled Cooling
The built-in temperature-controlled cooling system operates as needed to help manage heat and support stable operation under load.
5. Overload & Short-Circuit Protection
The inverter shuts down when connected power demand exceeds its rated output or when a short circuit is detected.
6. AC Outlet Reset Protection
Each reset-equipped AC outlet uses a manual reset button that functions as a built-in circuit breaker. If an overload or short circuit occurs on the connected device, the affected outlet can shut off to help protect the system.
7. LCD Fault Monitoring
The LCD display provides fault information and warning messages when abnormal operating conditions are detected, helping users identify the issue and take corrective action.
8. Remote On / Off Control
The included remote on/off switch provides convenient control when the inverter is positioned away from the main operating area.
Compatibility
| Compatibility | Typical Equipment | Compatibility Details |
|---|---|---|
| 12V Battery Systems | Compatible 12V vehicle, RV, mobile-work, and standalone battery systems | The TANK3000 is designed to connect directly to a compatible 12V battery using the supplied terminal input cables. Always observe correct battery polarity. |
| Laptops & Electronics | Laptop adapters, chargers, monitors, and compatible AC-powered electronics | Suitable for compatible equipment when the total connected load remains within the TANK3000's rated output and the equipment supports modified sine wave power. |
| Phones & Tablets | Smartphones, tablets, and compatible USB-powered electronics | USB-A and USB-C provide 5V DC output with up to 3.1A shared current for compatible USB devices. |
| Power Tools | Compatible corded tools and battery chargers | Check both normal operating wattage and startup demand before use. Total connected demand must remain within the TANK3000's documented output limits. |
| Small & Medium Appliances | Compatible household, RV, travel, and mobile-work appliances | Appliances may be used when their operating power and startup requirements remain within the TANK3000's rated capacity and they are compatible with modified sine wave output. |
| Multiple Devices | AC and USB-powered electronics operating together | Multiple compatible devices may be connected at the same time as long as their combined demand remains within the TANK3000's rated output. |
| 120V / 20A Equipment | Compatible equipment designed for the TANK3000's 120V / 20A AC outlet | Verify the connected equipment's voltage, current, wattage, and waveform requirements before use. |
| Direct-Connect AC Applications | Compatible external AC output systems | The TANK3000 includes a 110V direct-connect terminal. Wiring must follow the terminal instructions in the user guide, including correct Line, Neutral, and Ground connections. |
| Modified Sine Wave Equipment | Compatible AC-powered equipment designed to operate with modified sine wave power | The TANK3000 produces modified sine wave AC output. Confirm compatibility before connecting equipment that requires pure sine wave or another specific waveform. |
| Remote-Control Applications | RV, truck, van, mobile-work, and battery installations where the inverter is positioned away from the operator | The included remote on/off switch allows convenient power control without requiring direct access to the inverter's main power button. |
| Medical & Life-Support Equipment | Life-support systems and medical devices | Not intended for use. The user guide states that the inverter is not certified for use with life-support or medical devices. |
Important Compatibility Note: The ERAYAK TANK3000 provides up to 3000W continuous power according to the current user guide and is designed for use with a compatible 12V battery. It produces modified sine wave AC output. Always verify connected-device voltage, current, running wattage, startup requirements, and waveform compatibility before use.
Maintenance Guide
Simple Care. Reliable Power.
Keeping your ERAYAK TANK3000 in good operating condition is straightforward. Routine maintenance mainly involves checking battery and AC connections, monitoring battery voltage and connected load, keeping the cooling system clear, and inspecting the remote control, direct-connect terminal, and AC outlet reset system when needed.
| Maintenance Item | When to Check | What to Do |
|---|---|---|
| Battery Connections | Before each use | Check the positive (+) and negative (-) threaded terminals and terminal input cables for secure connection, correct polarity, wear, or visible damage. |
| Battery Voltage | Before and during use | Monitor battery condition using the LCD display and respond to low- or high-voltage warnings when they occur. |
| Connected Load | Before and during use | Keep the total connected demand within the TANK3000's rated output and verify device startup requirements before use. |
| Cooling Fans & Ventilation | During use | Keep the cooling system and ventilation openings unobstructed and maintain at least 3 inches of clearance around the inverter. |
| AC Outlet Reset Buttons | After an outlet overload or short circuit | Disconnect the affected device, wait a few seconds, and press the applicable AC outlet reset button before resuming operation. |
| Direct-Connect AC Terminal | Before use or after wiring service | Check that Line, Neutral, and Ground conductors are securely connected and that no exposed copper strands are outside the terminal block. |
| Remote On / Off Switch | As needed | Check the remote switch and its connection to the inverter if remote operation becomes intermittent or unavailable. |
| LCD & Fault Indicators | During use | Monitor battery level, AC output power, input voltage, and warning messages for signs of abnormal operation. |
| Physical Condition | Before use | Inspect the housing, battery cables, terminals, AC connections, cooling system, remote connection, and outlets for visible damage. |
| Storage | When not in use | Disconnect the inverter from the battery and store it in a dry indoor area away from direct sunlight, heat, moisture, and conductive dust. |
Service Note: The TANK3000 does not require engine-style scheduled maintenance. Regular inspection of battery connections, ventilation, AC connections, remote-control connection, connected load, outlet reset system, and physical condition is the primary maintenance requirement.
1. Battery Connections — Check Before Use
Inspect the terminal input cables and threaded positive (+) and negative (-) terminals before use. Make sure all battery connections are secure and correctly polarized before turning on the inverter.
2. Battery Voltage — Monitor Operating Condition
The TANK3000 provides a low-battery alarm at 10.5V DC and shuts down at 9.5V DC.
If a low-voltage shutdown occurs, recharge or replace the battery and make sure the inverter is connected to a fully charged compatible 12V battery.
The inverter also provides high-voltage shutdown at 15.5V DC. Disconnect any charging source that causes battery voltage to exceed the safe operating range.
3. Load Management — Stay Within Rated Power
The current TANK3000 user guide specifies 3000W continuous power.
If an overload or short-circuit shutdown occurs, disconnect high-power devices and verify that the total connected demand is within the inverter's rated output.
To manually reset the inverter after correcting an overload or short-circuit condition, press and hold the power button for approximately 2 seconds to turn it off, then turn it back on.
4. AC Outlet Reset Buttons — Reset the Affected Outlet
The TANK3000 AC outlets include manual reset buttons that function as built-in circuit breakers.
If an overload or short circuit causes an outlet reset button to pop out, disconnect the connected device, wait a few seconds, and press the reset button to restore operation after the fault has been corrected.
Other AC outlets can continue to function normally when only one outlet has been affected.
5. Cooling & Ventilation — Keep Airflow Clear
Do not cover or block ventilation openings. Allow at least 3 inches (7.5 cm) of clearance around the TANK3000 for proper airflow.
If an over-temperature shutdown occurs, turn off connected devices and allow the inverter to cool for at least 10 minutes. Make sure the cooling system is not blocked and that air can circulate freely before restarting.
6. Direct-Connect AC Terminal — Inspect Wiring Carefully
The TANK3000 includes a 110V direct-connect AC terminal with Line (L), Neutral (N), and Ground (GN) connections.
Before use, make sure each conductor is securely fastened and that no loose copper strands are exposed outside the terminal block.
7. Remote Control — Check Connection When Needed
The TANK3000 includes a remote on/off switch. If remote operation becomes unavailable, inspect the remote switch and its connection to the inverter before further troubleshooting.
8. Battery Discharge — Disconnect When Not in Use
Disconnect the TANK3000 from the battery when it is not in use to help prevent accidental battery discharge.
The user guide notes that the USB ports remain active even when the inverter itself is switched off.
9. Cleaning & Storage — Keep It Dry
Disconnect the inverter from the battery before cleaning, inspection, or storage.
- Keep the inverter away from moisture and conductive dust.
- Do not cover or obstruct the ventilation openings.
- Keep the unit away from direct sunlight and heat sources.
- Do not operate near propane, gasoline, or other flammable gases or fumes.
- Store the TANK3000 in a dry indoor environment.
- Keep the inverter away from children.
10. Battery Safety — Use Proper Precautions
- Follow the battery manufacturer's safety instructions.
- Wear protective gloves and eyewear during installation or maintenance.
- Never smoke or expose batteries to open flames or sparks.
- Do not drop metal tools or conductive objects near the battery terminals.
- Keep soap and water nearby when working around lead-acid batteries.
Important Reminder: Use the TANK3000 with a compatible 12V battery, keep connected demand within the rated output specified in the current user guide, maintain at least 3 inches of ventilation clearance, monitor battery voltage, use the AC outlet reset buttons when required, follow the direct-connect AC terminal instructions, and disconnect the inverter from the battery when it is not in use.
Frequently asked questions
-
What devices can I power with the ERAYAK TANK3000 Power Inverter?
The TANK3000 is designed for compatible AC and USB-powered devices with a combined continuous load of up to 3000W. It can support many electronics, tools, chargers, and compatible appliances, provided their power requirements remain within the inverter’s rated output and they are compatible with modified sine wave power.
-
How much power does the ERAYAK TANK3000 provide?
The current TANK3000 user guide specifies 3000W of continuous power. Always check the connected device’s running wattage and startup requirements before use.
-
What type of battery should I use with the TANK3000?
The TANK3000 is designed to connect directly to a compatible 12V battery using the supplied terminal input cables. Always make sure the positive and negative battery connections are secure and correctly polarized before turning on the inverter.
-
What does the LCD display show?
The LCD display shows battery level and can switch between AC output power in watts and battery input voltage. It also displays fault information and warning messages when abnormal operating conditions are detected.
-
Does the TANK3000 include remote on/off control?
Yes. The TANK3000 includes a remote on/off switch and a dedicated remote-control input port, allowing you to control the inverter from a more convenient location when the main unit is positioned farther away.
-
What are the AC outlet reset buttons used for?
The TANK3000’s AC outlets include manual reset buttons that function as built-in circuit breakers. If an overload or short circuit occurs on a connected device, the affected outlet may shut off. After correcting the issue, disconnect the device, wait a few seconds, and press the reset button to restore that outlet.
-
What is the 110V direct-connect terminal for?
The TANK3000 includes a 110V direct-connect AC terminal for compatible external AC output systems. The terminal uses Line (L), Neutral (N), and Ground (GN) connections. Wiring should follow the instructions in the user guide, with secure connections and no exposed copper strands outside the terminals.
-
What happens if the battery voltage becomes too low or too high?
The TANK3000 provides a low-battery alarm at 10.5V DC and shuts down at 9.5V DC. It also provides high-voltage shutdown at 15.5V DC. These protections help protect the inverter and connected battery system.
-
What should I do if the TANK3000 overheats or shuts down?
Turn off or disconnect connected devices and allow the inverter to cool for at least 10 minutes. Make sure the cooling system is not blocked and maintain adequate airflow around the inverter before restarting it. The manual recommends at least 3 inches (7.5 cm) of ventilation clearance.
T
This power inverter is called the TANK 3000, and let me tell you this thing is a tank. My previous power inverter was a small 140W unit. Moving to this bad boy is a huge jump. 3000W is a ton of power. There were plenty of things that my last inverter couldn't handle. I don't think I'll ever come across that issue with this 3000W unit. This will really come in handy for when I go camping, for my blow up mattress, portable shower, as well as the little things like my phone and powe bank. This unit is versatile with 3 115v ac outlets and also a few usb outlets for the smaller stuff. Its got two fans on the back to help with any over heating. This is the first inverter ive used that has a screen, which is awesome to have real time info on hand. The cables it came with are really beefy 0AWG. Although I want to mount it in my cab under the seat, and the cables it came with are definitely too short for that so I'll be getting new cables for that. Overall I'm very excited to get to put this thing to use!
S

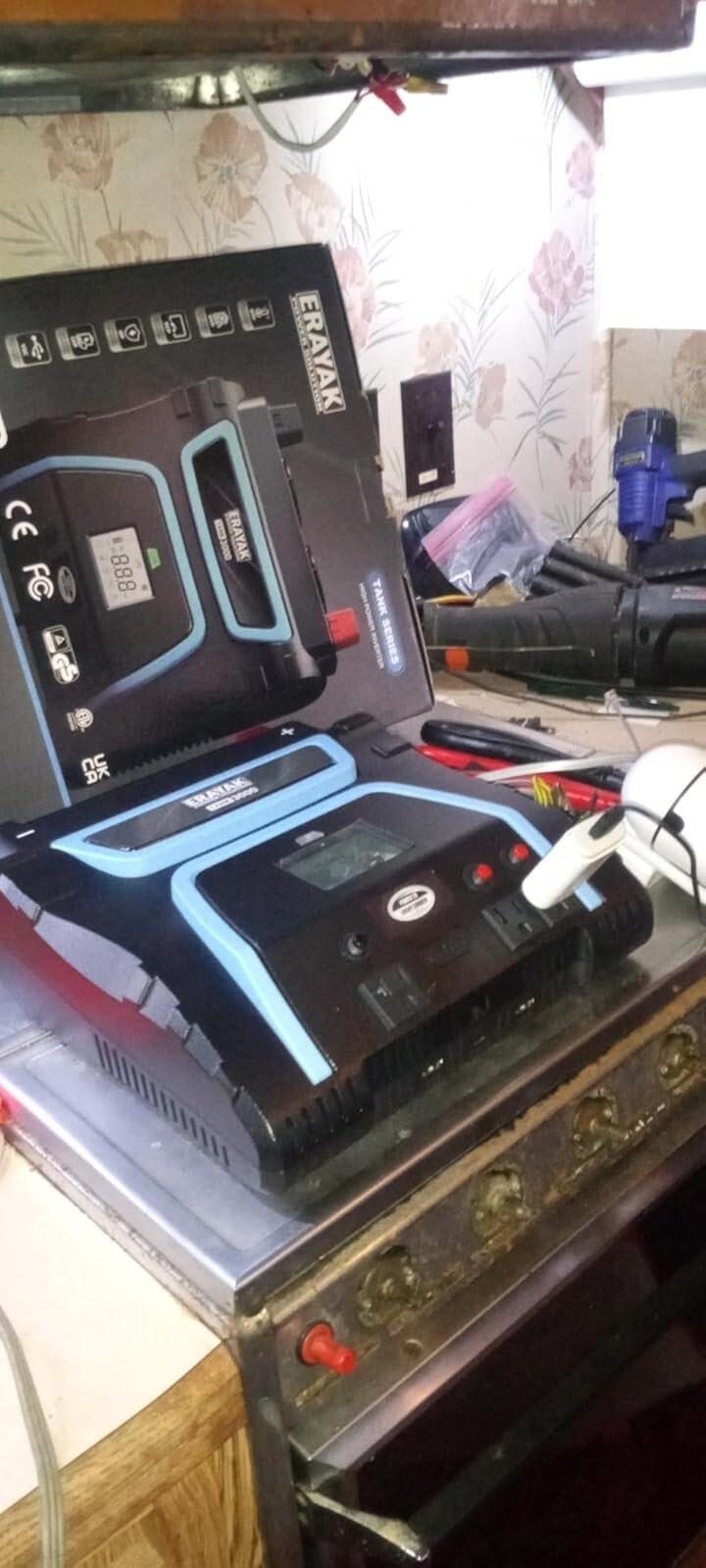

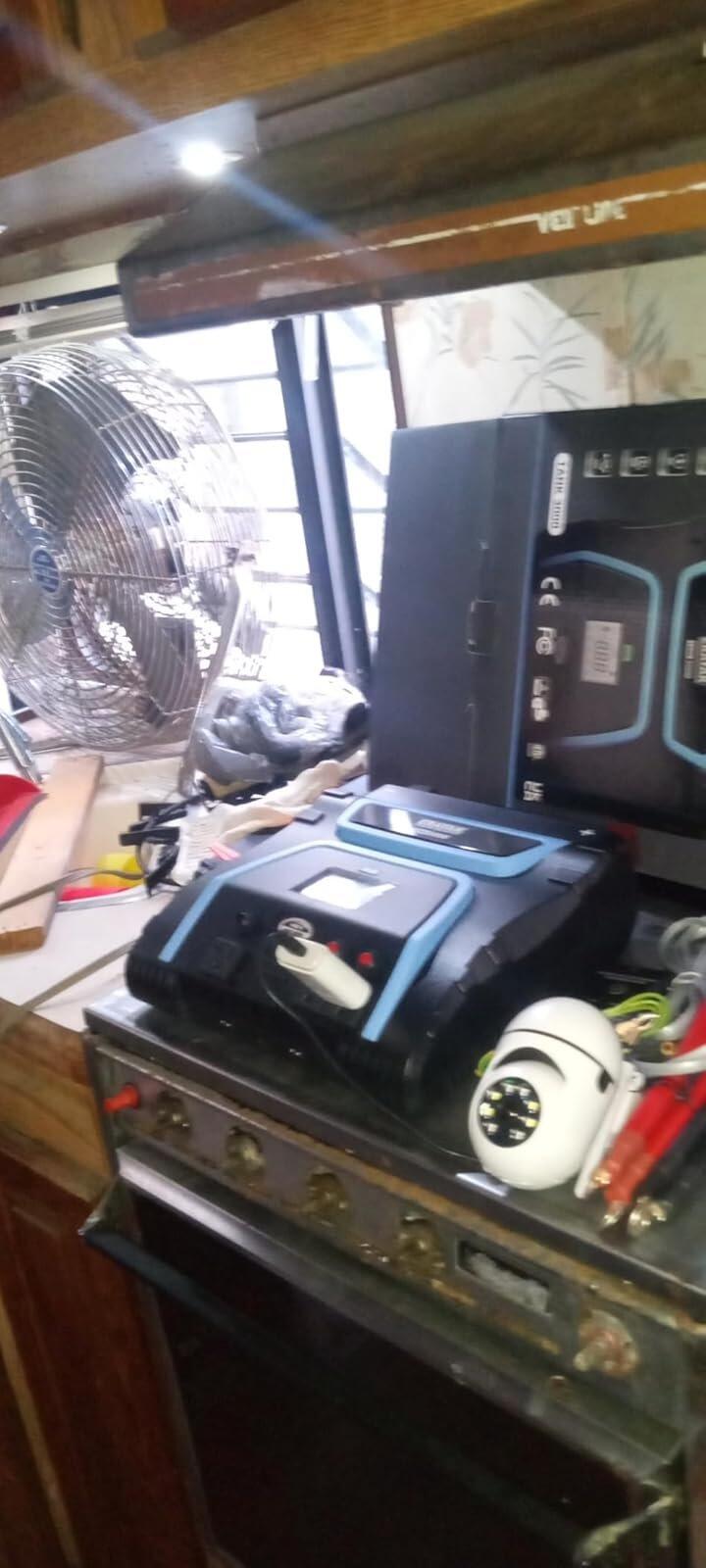

I buy this power inverter 3000 watts install in my camper which being remodeled inside with all new wiring update this only my tips on how I will used power inverter 3000 watts on power inverter it's got three plugs in build in breaker switch on all three plugs in have good have for safety .... I am not licensed electrician or mechanic please be careful wen install of you don't know what you doing you can start fire for your safety have license mechanic install in your camper or semi truck or batteries backup system .... This kit comes all wires are going need too install your power inverter 3000 watts I really like got caps on battery terminals and it's got + and -sign on case so no mix up on battery wires .... Wen I installed power inverter I add on battery line power inverter cut switch from battery on power inverter got cut off switch and remote control switch I add battery cut off switch for safety and wen not around kill power going power inverter ..... On power inverter it's got USB C charging for fast charging and USB charger .... You can hot wire into camper 110v power to do that you are going need transfer switch without you will hurt power inverter .... You really don't need it's because you can used 3 plug in on power inverter ..... Of you don't plan on using sure power you can connect to camper without transfer switch run your camper on battery bank up power with solar system... On running coffee machine power tools refrigerators cooktops air fryers induction cooktops it's run all with no problem just check your watts on all appliances before plugging in don't go over 3000 watts total on power inverter ... On battery size you can used 100ah be it's only 1200 watts you are going need very big battery bank run this one and running on semi truck or cars you can power it's by semi truck or car as long vehicle running .... Of you are planning on using for emergency power to run on battery for off grid used with heat used small heater it's work just fine .... It's great diy kit please remember safety comes first for it's quality very good on build of power inverter very nice ... You will have for many years to come on power inverter itself got to build in fan and it's auto turn off of volt low and volt too high that's for safety of your battery at 10.5 volt it's beep at you turn your inverter off so it's don't kill your battery .... On power inverter it's led screen very nice it's give you reading of voltage used and battery voltage left on your battery wen turning on power inverter you will have hold button 10 to 15 seconds because it's children safety lock on power inverter and on remote control too green light on and red light failed on turn on .... Of you see red light check wires of have bad wire power inverter will not come on .... I am going be hooking up too lifepo4 battery with 600ah of battery as battery backup system used for off grid used in camper I am very happy power inverter
