Key Data at a Glance
View input voltage, output voltage, output power and error messages directly on the display.











Convert 12V battery power into stable 110–120V, 60Hz AC output with 2000W continuous power, 4000W peak power and over 90% conversion efficiency.

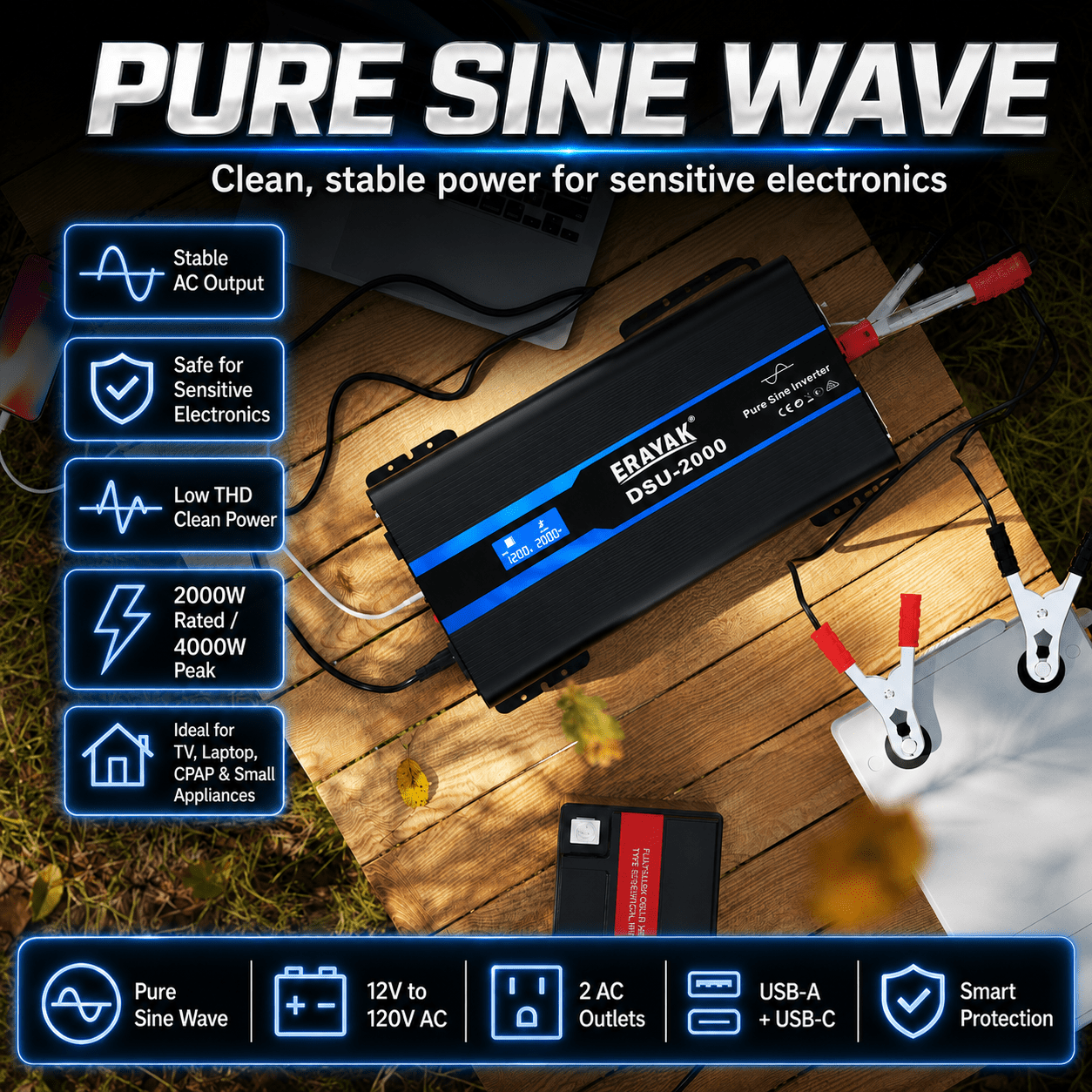

Pure sine wave AC is designed to support a broad range of electrical and sensitive electronic devices when their running and startup requirements remain within the inverter’s rated limits.

Use the available AC and USB connections for compatible devices while staying within the DSU-2000’s supported output.

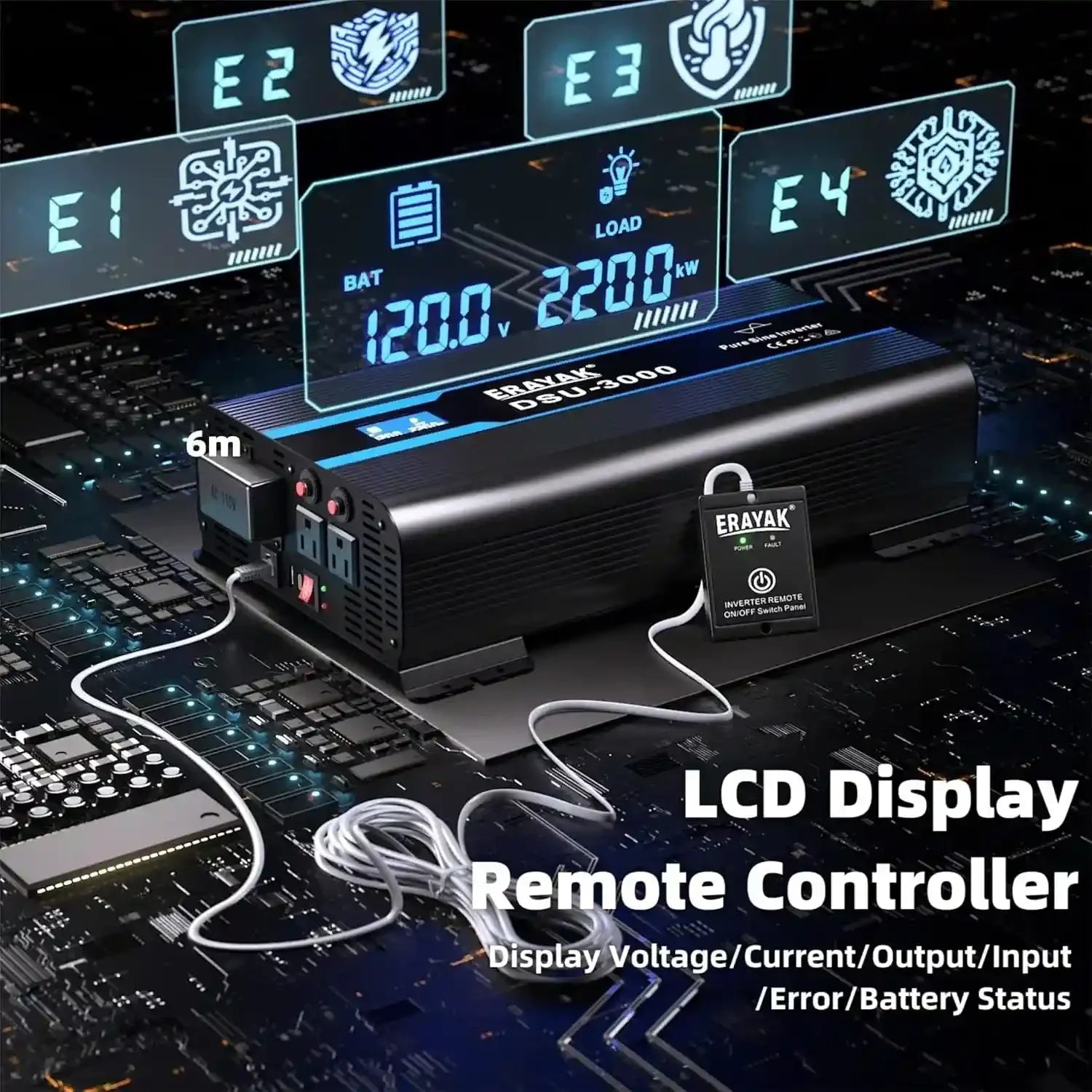

Monitor key operating information on the LCD and use the included remote panel with its 6-meter cable for more convenient on/off control.
View input voltage, output voltage, output power and error messages directly on the display.
The included remote control panel and 6-meter cable support operation from a more practical installed location.
The DSU-2000 converts 12V battery power into AC power. It does not charge batteries or include a solar charge controller.
Designed to convert more battery energy into usable AC output.

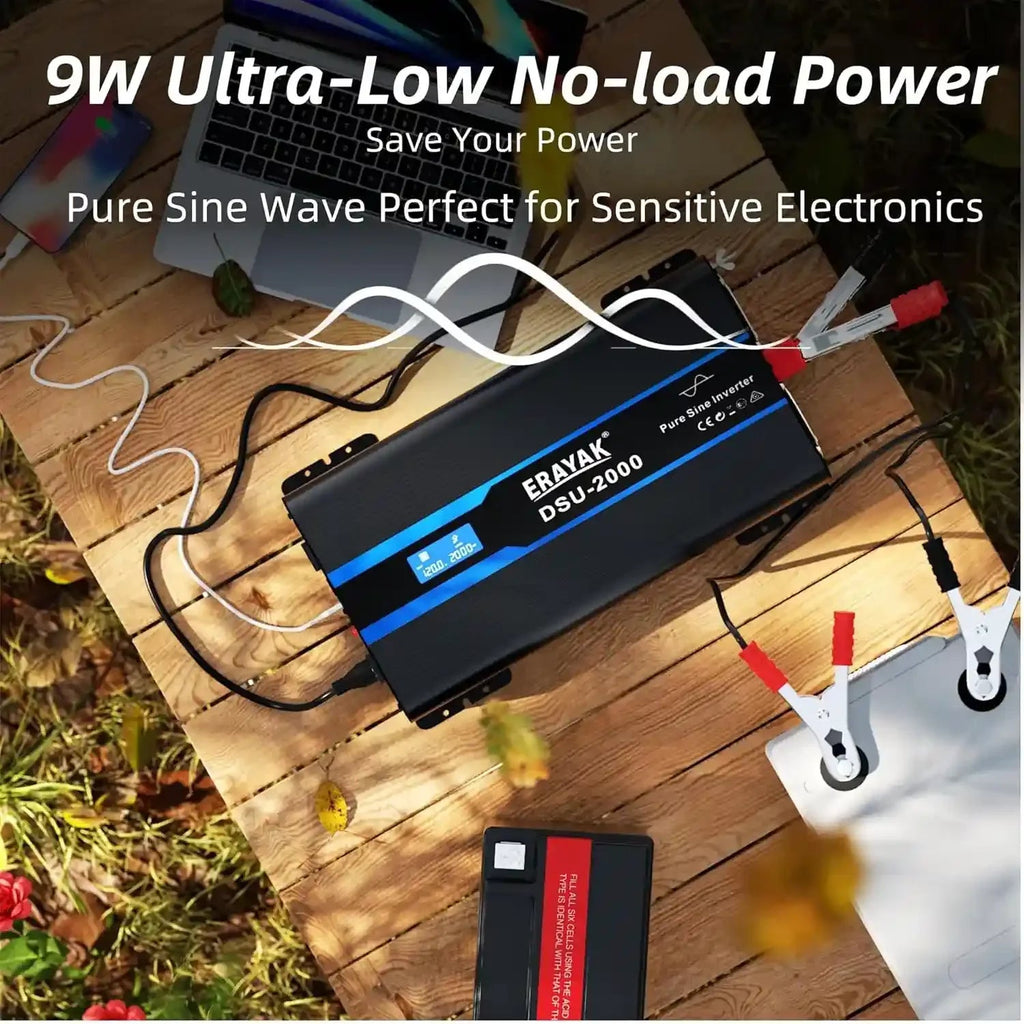

Lower stated no-load draw helps reduce unnecessary battery consumption when no device is drawing output power.
2000W continuous output with a stated 4000W peak rating for compatible loads.

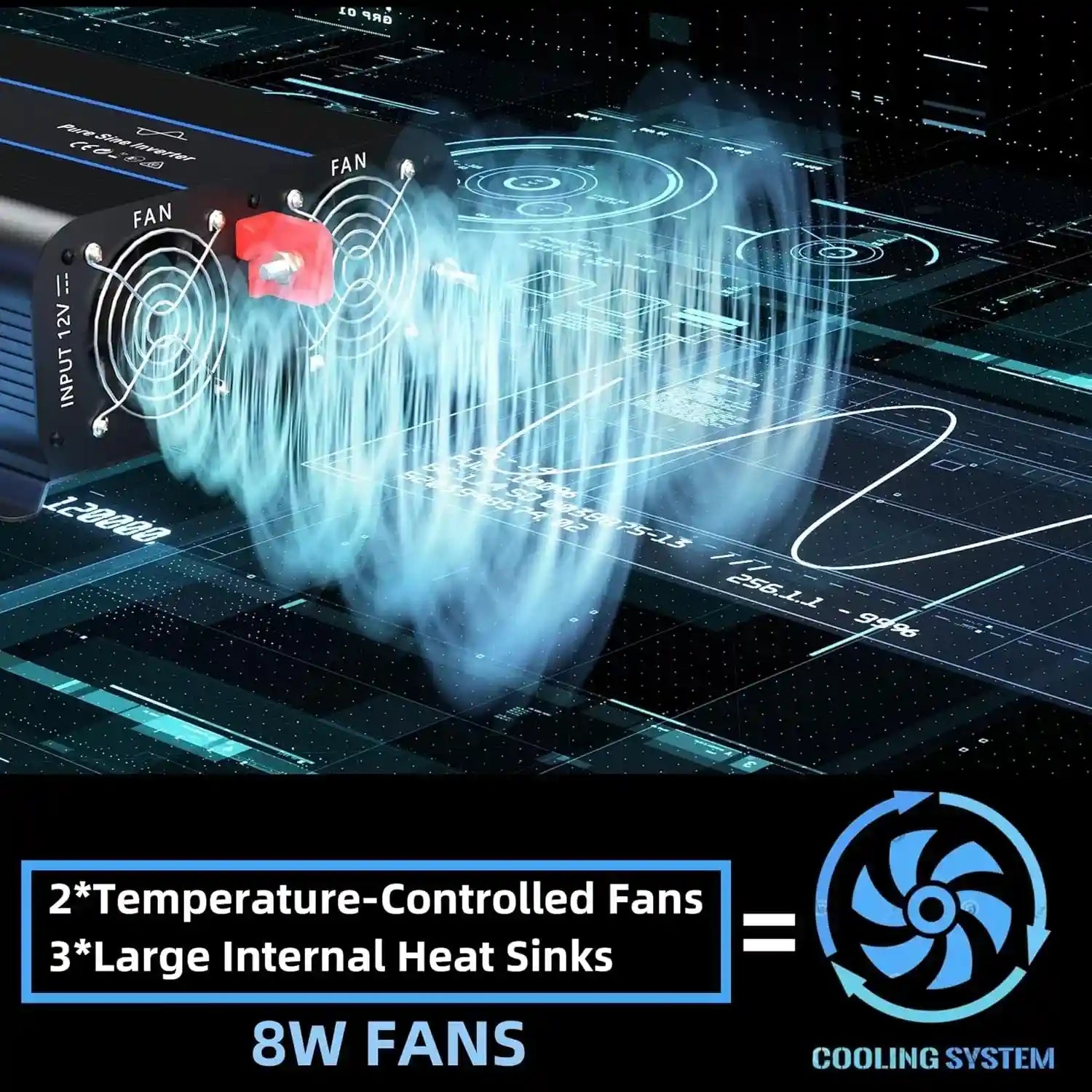

Built-in fusing, electrical safeguards, isolation design, soft-start technology and temperature-controlled cooling support reliable operation.

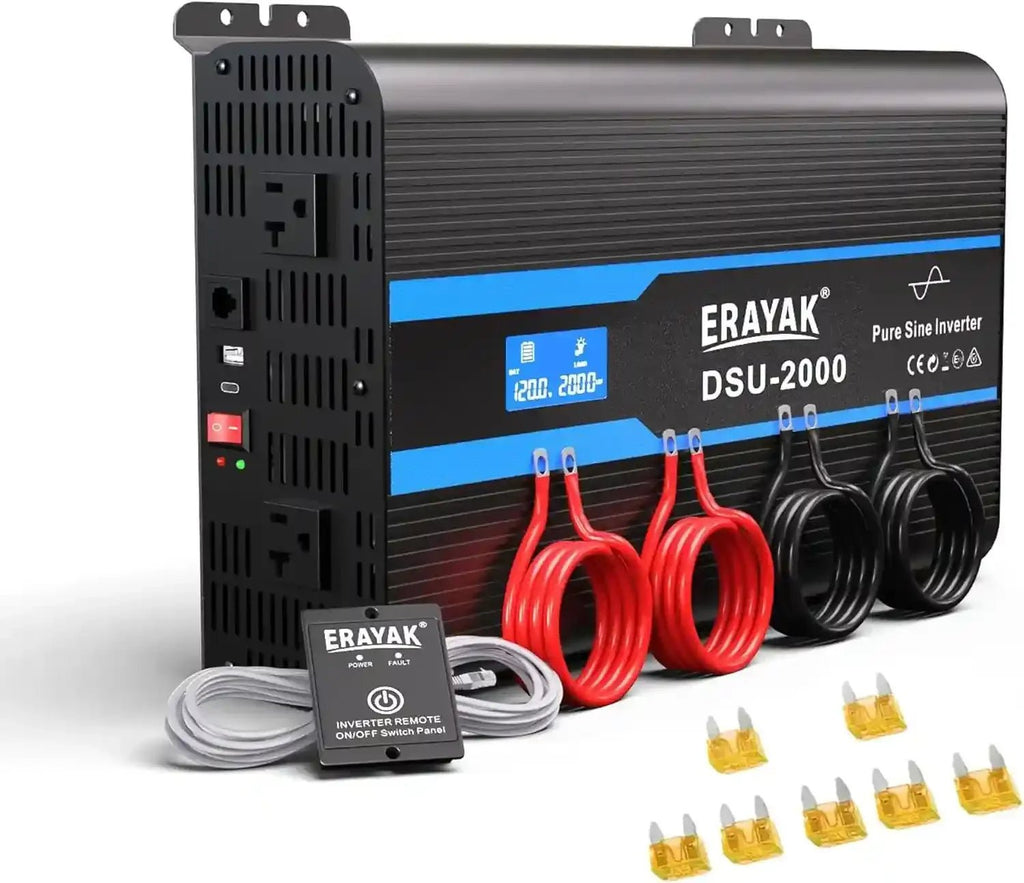

Seven built-in 35A fuses form part of the inverter’s internal protection system.

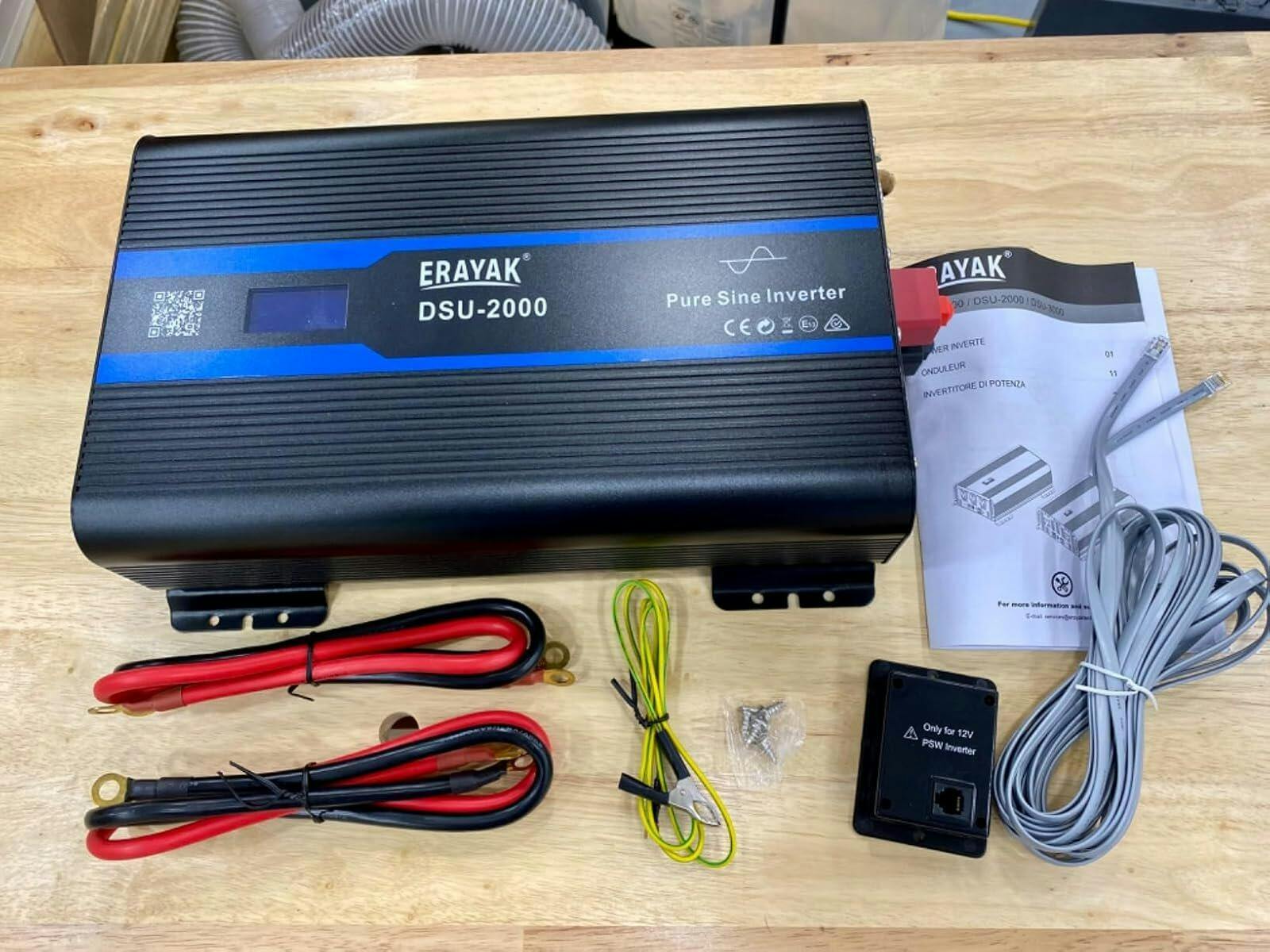

Key specifications and included items for the ERAYAK DSU-2000.
| Model | ERAYAK DSU-2000 pure sine wave inverter |
|---|---|
| Input | 12V DC battery power |
| AC Output | 110–120V AC, 60Hz |
| Power | 2000W continuous / 4000W peak |
| Conversion Efficiency | Over 90% |
| No-Load Draw | Less than 9W |

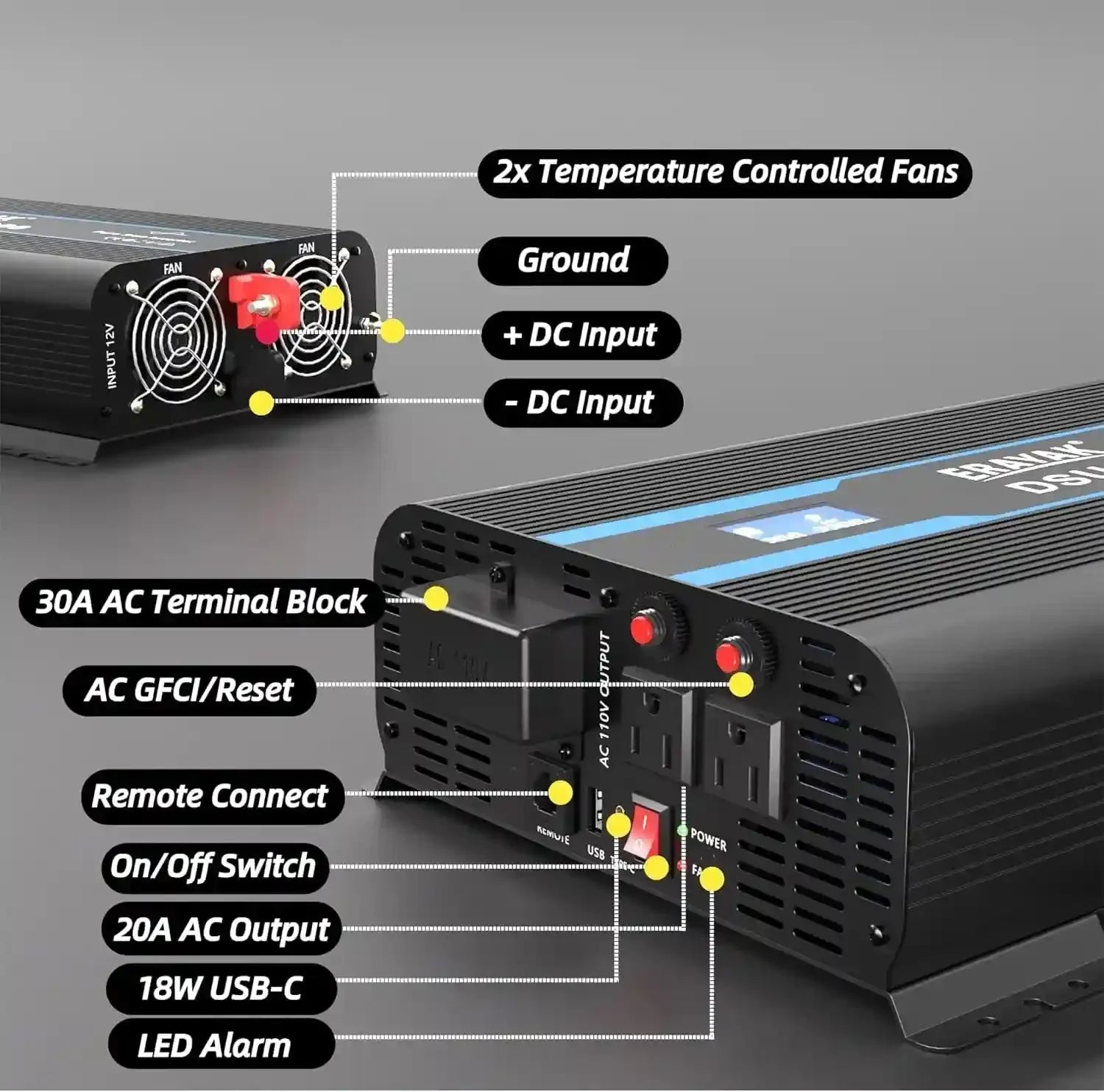

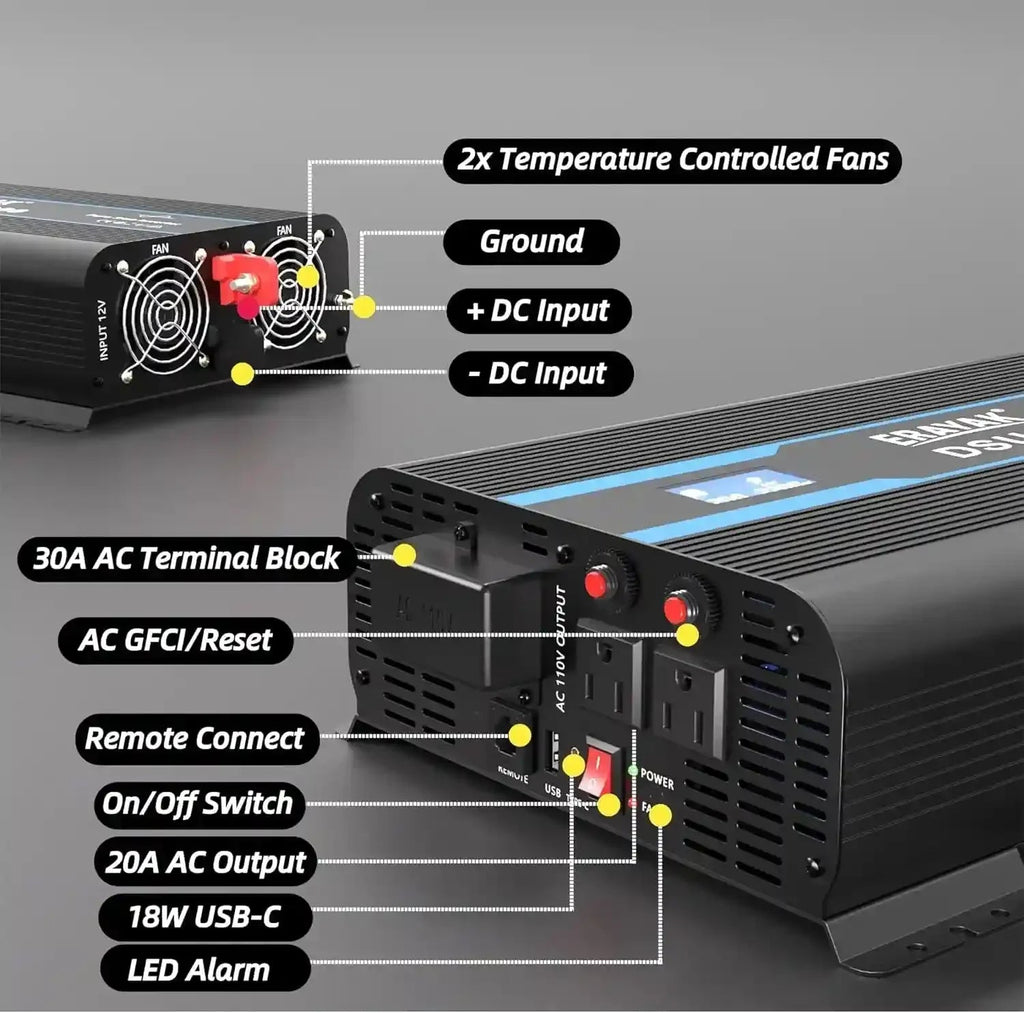

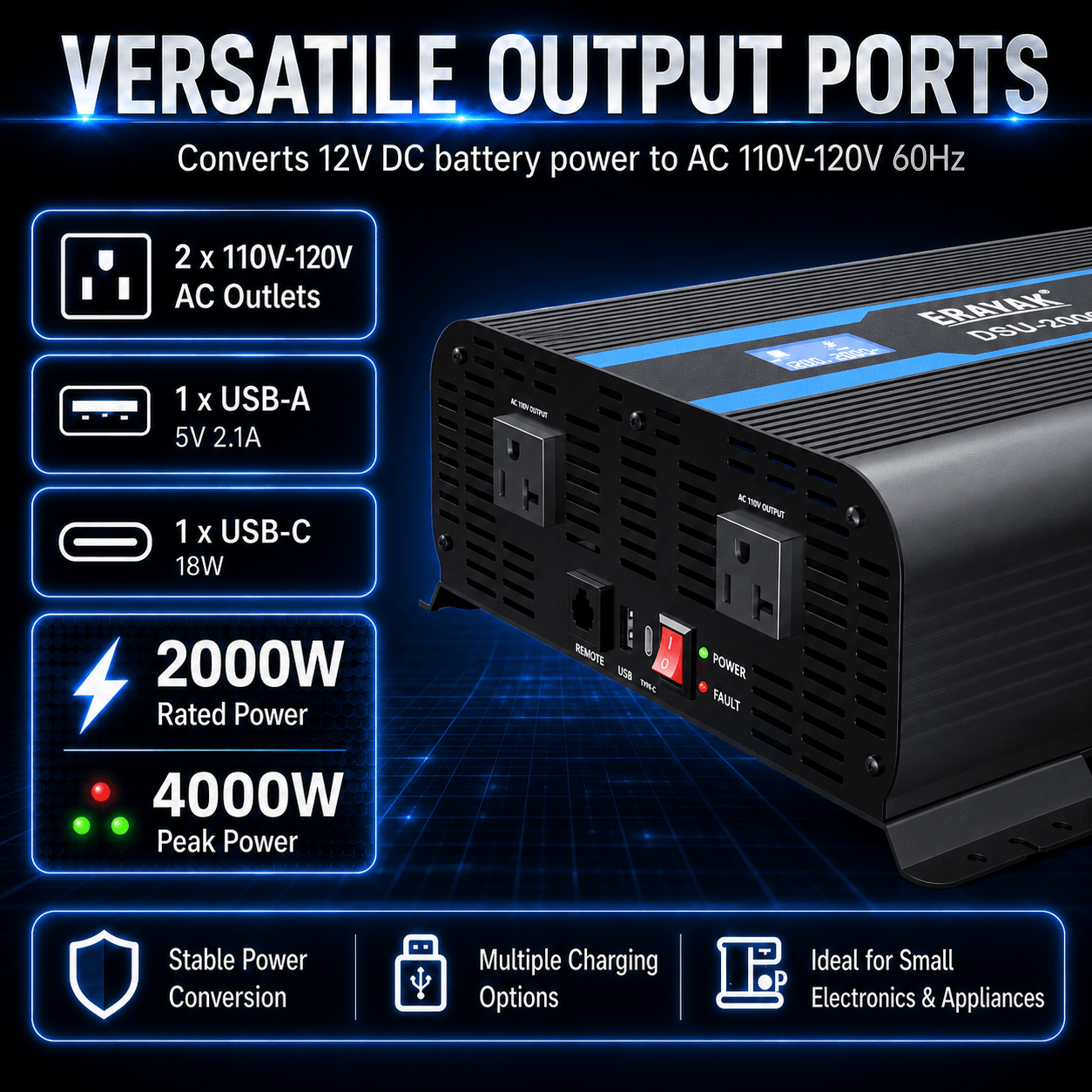

| Connections | 2× AC outlets; 1× 5V 2.1A USB-A; 1× 18W USB-C |
| Display | Input voltage, output voltage, power and error messages |
| Remote Control | Remote panel with 6m cable |

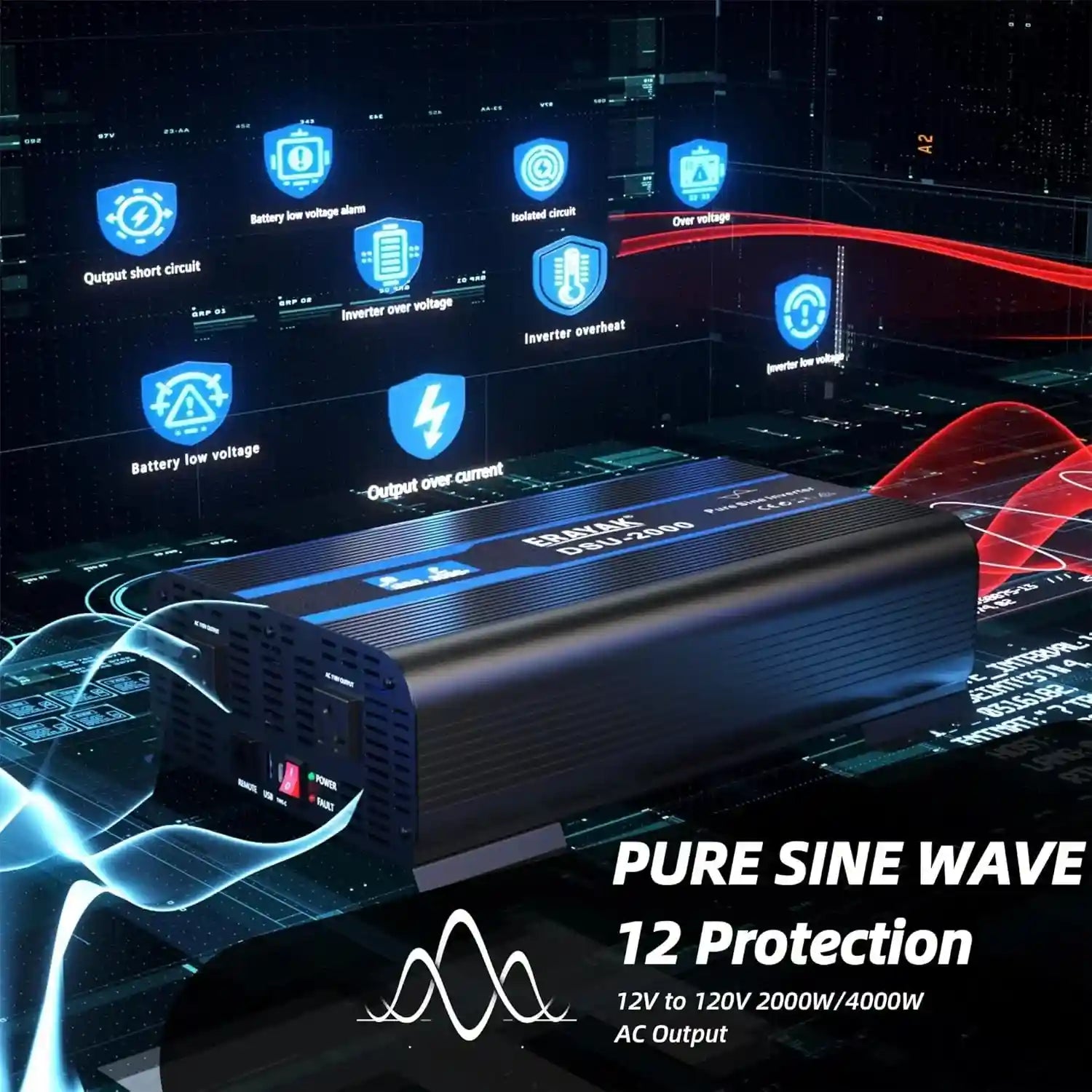

| Protection | 7×35A built-in fuses; overload, overheat, short-circuit and under-voltage protection |
| Additional Design | Soft start, input/output isolation and temperature-controlled cooling fans |

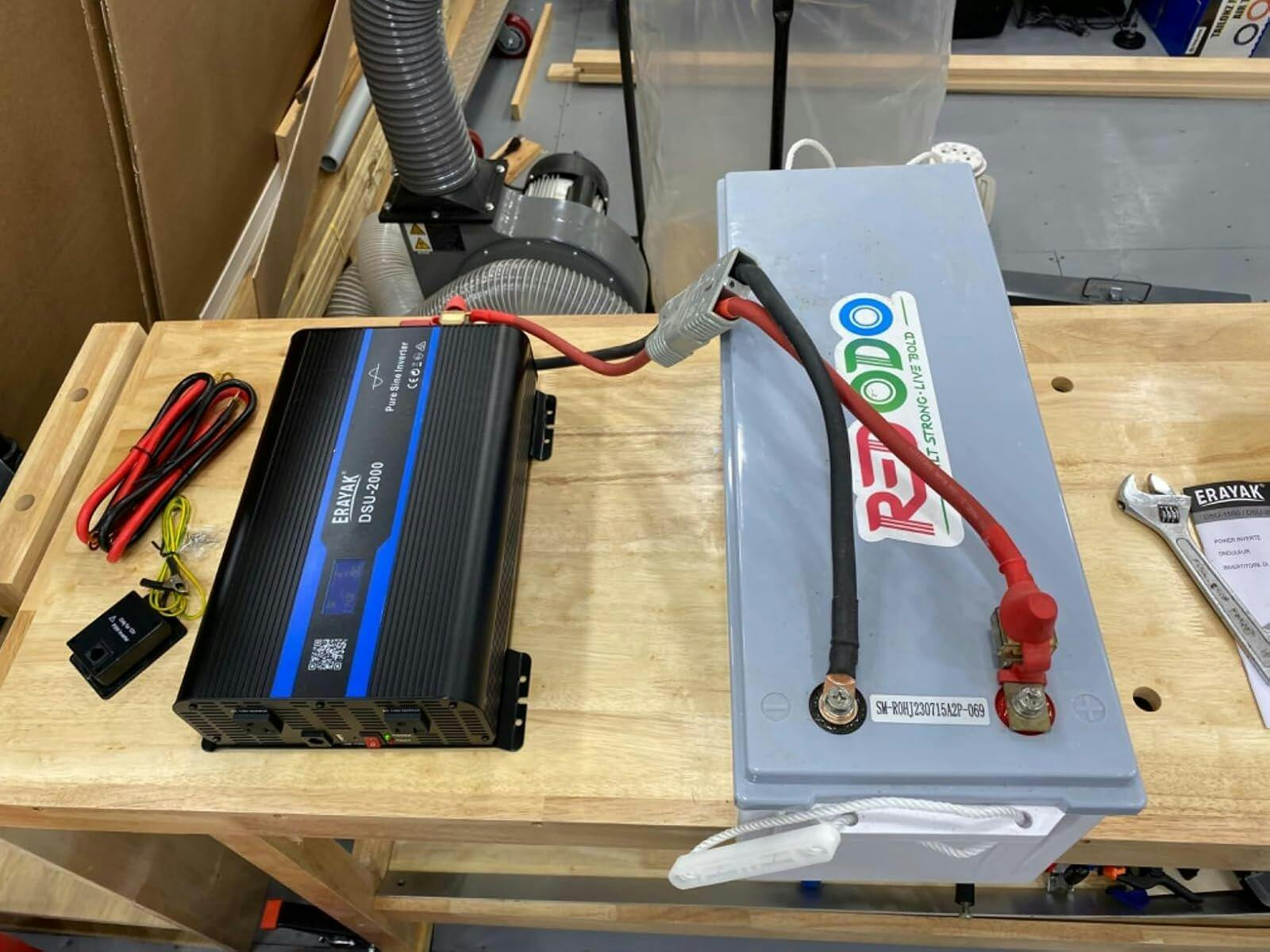

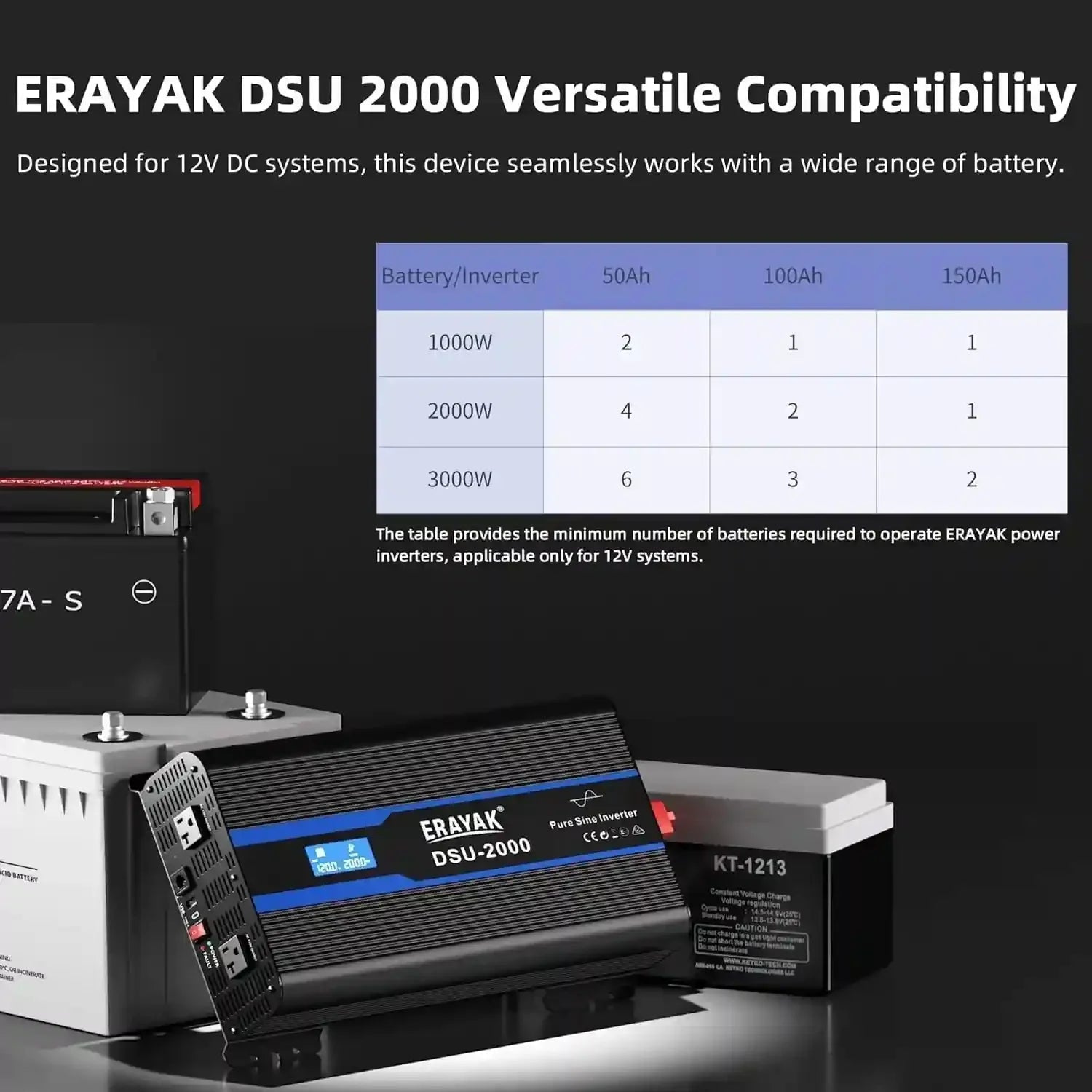

A 2000W inverter is part of a high-current 12V electrical system. Correct battery capacity, cable sizing, overcurrent protection, polarity and ventilation are essential.
Important details to confirm before installing and connecting equipment.
It is designed for a 12V DC battery system. Do not connect it to a battery bank with a different nominal voltage.
2000W is the stated continuous output rating. 4000W is the stated peak rating for short-duration startup demand. Connected equipment must remain within both limits.

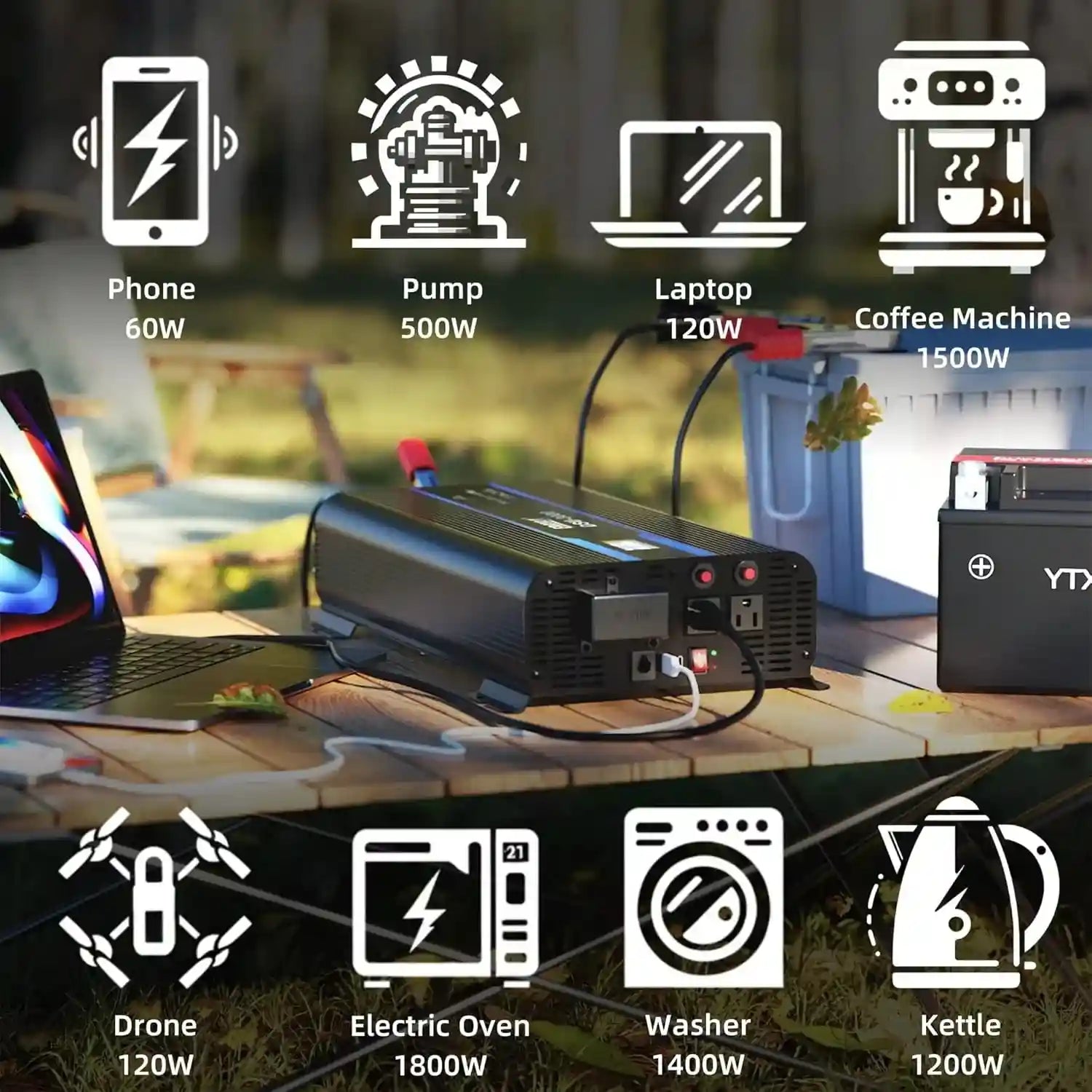

Compatibility depends on the equipment’s running wattage and startup surge. Check the equipment label and manual before use; do not rely only on its product category.
The LCD shows input voltage, output voltage, output power and error messages.
No. The DSU-2000 is a DC-to-AC inverter, not a battery charger, and it does not include a solar charge controller.
The included remote panel uses the supplied 6-meter cable for connected on/off control.
Includes 36-month warranty support and ERAYAK after-service assistance. Coverage remains subject to the applicable warranty terms and purchase channel.
