ERAYAK 4500 Watt Inverter Generator for RV Camping | 4500P

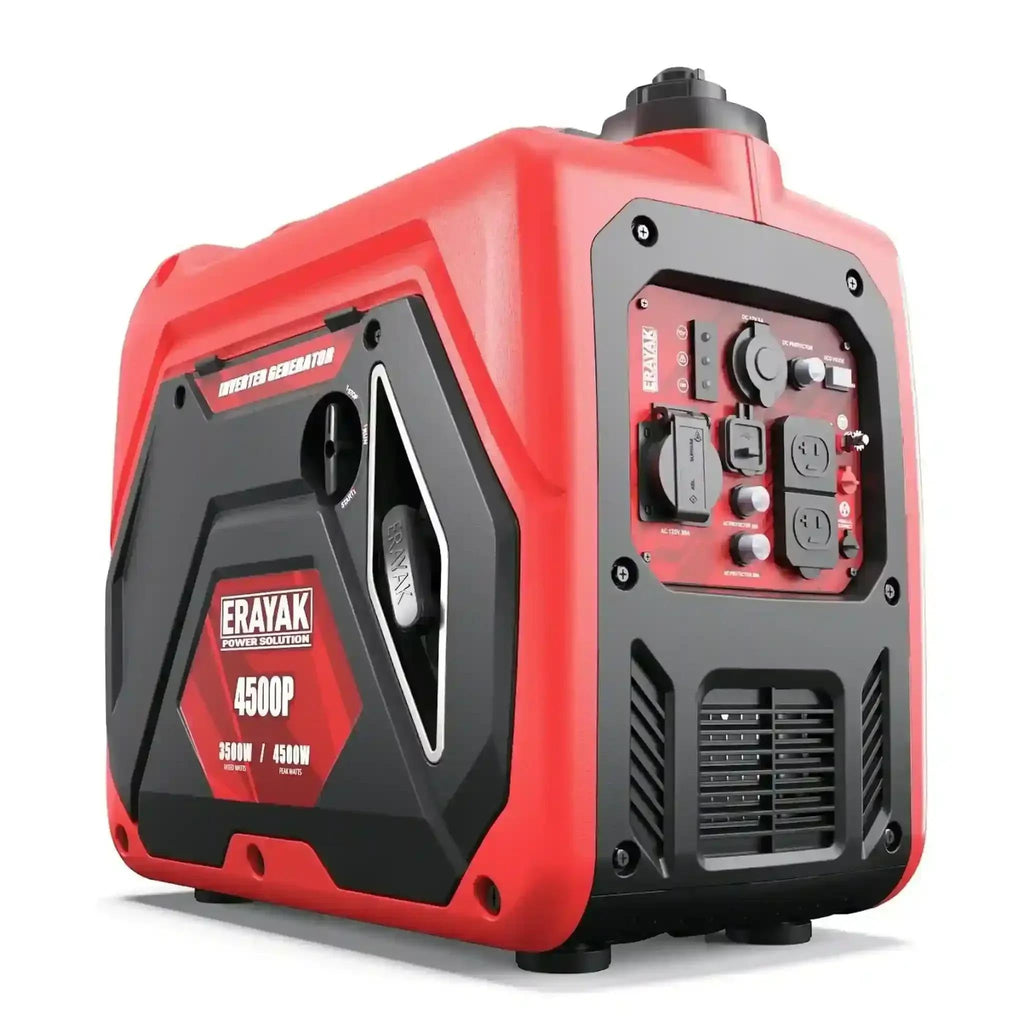

ERAYAK 4500P · Gas Only Inverter Generator
Lightweight Gas Power for Real Outdoor Use.
The ERAYAK 4500P is built for RV camping, portable AC planning, outdoor events, and 120V home essentials backup. It gives you 4500W peak / 3500W running inverter power in a compact 55 lb gas-only design.
Best Fit
Choose the 4500P when you want a quiet enclosed 120V gas inverter generator for RV weekends, camping, portable AC planning, and basic backup loads.
Compatibility First
What Can the ERAYAK 4500P Run?
Use this as a buying guide before checkout. Check the running watts and starting watts on your own appliance nameplates, especially for compressor-based loads such as air conditioners, refrigerators, and freezers.
| Appliance / Use Case | Typical Running Watts | 4500P Fit | Buying Note |
|---|---|---|---|
| RV air conditioner | Varies by model | Often Suitable | Many RV AC units can be supported when starting surge is within rating and other large loads are limited. |
| Portable air conditioner | 900-1,600W | Usually Suitable | Check compressor startup surge. Avoid starting multiple motor loads at the same time. |
| Refrigerator / freezer | 400-800W | Yes | Leave headroom for compressor startup and add smaller loads after the compressor is running. |
| Microwave or small kitchen appliance | 1,000-1,500W | One at a Time | Run one high-watt appliance at a time instead of stacking it with AC startup surge. |
| Router, lights, phones, TV, laptop | 100-500W combined | Yes | Low-THD inverter output is a strong fit for many everyday electronics. |
| Whole-home or 240V backup | Varies | Choose Larger | The 4500P is for 120V selected essentials, not 120V/240V transfer switch or whole-home backup. |
Load-planning tip: Start the appliance with the highest surge first, then add smaller loads. If you need a portable AC, refrigerator, microwave, and other essentials at the same time, compare total running watts and startup surge before choosing a generator size.

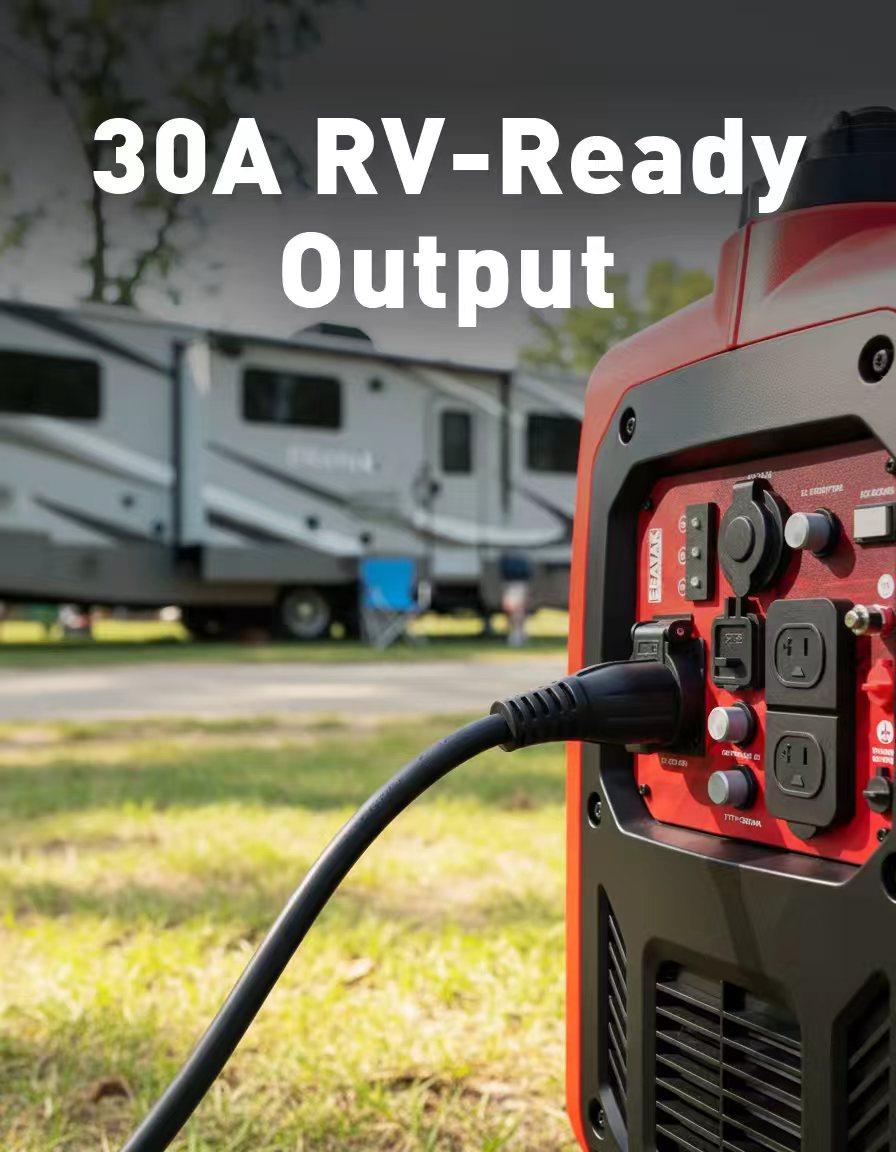

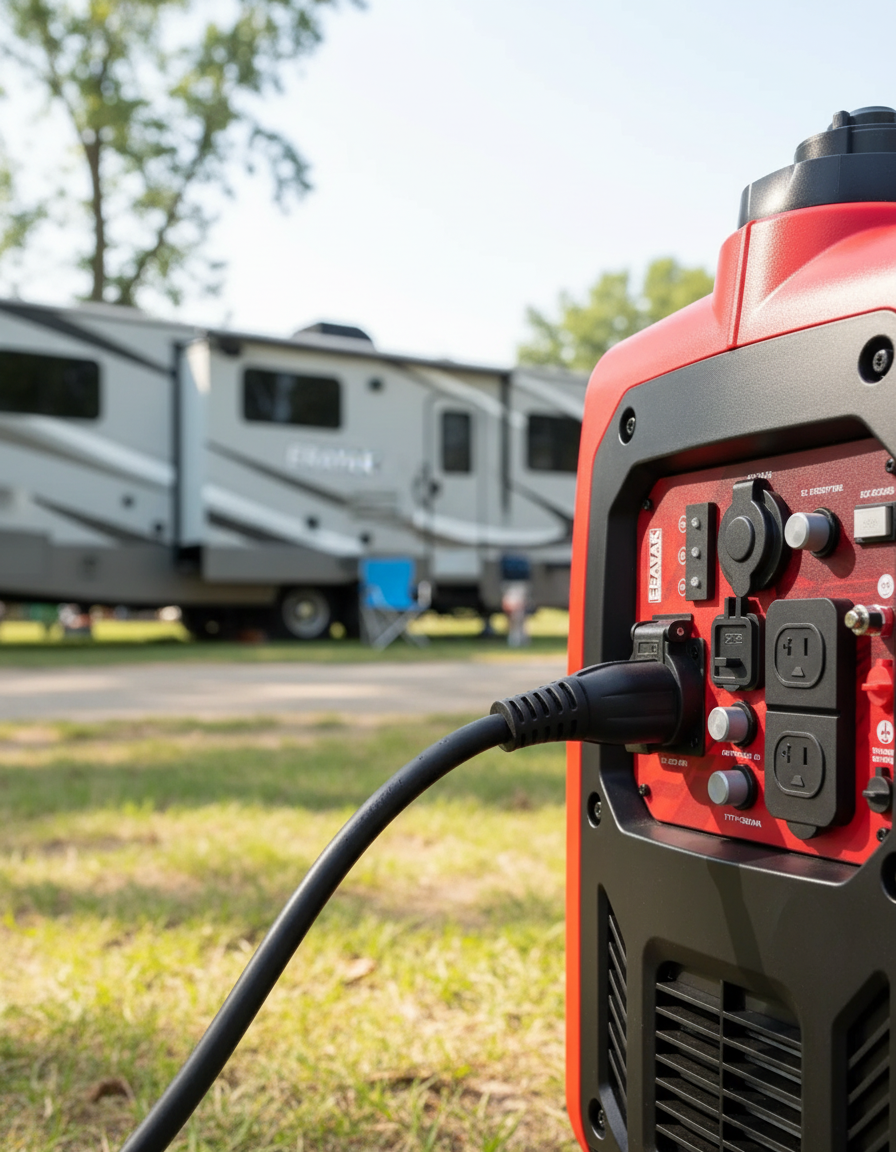

30A RV Setup
Understand the 4500P 30A Connection.

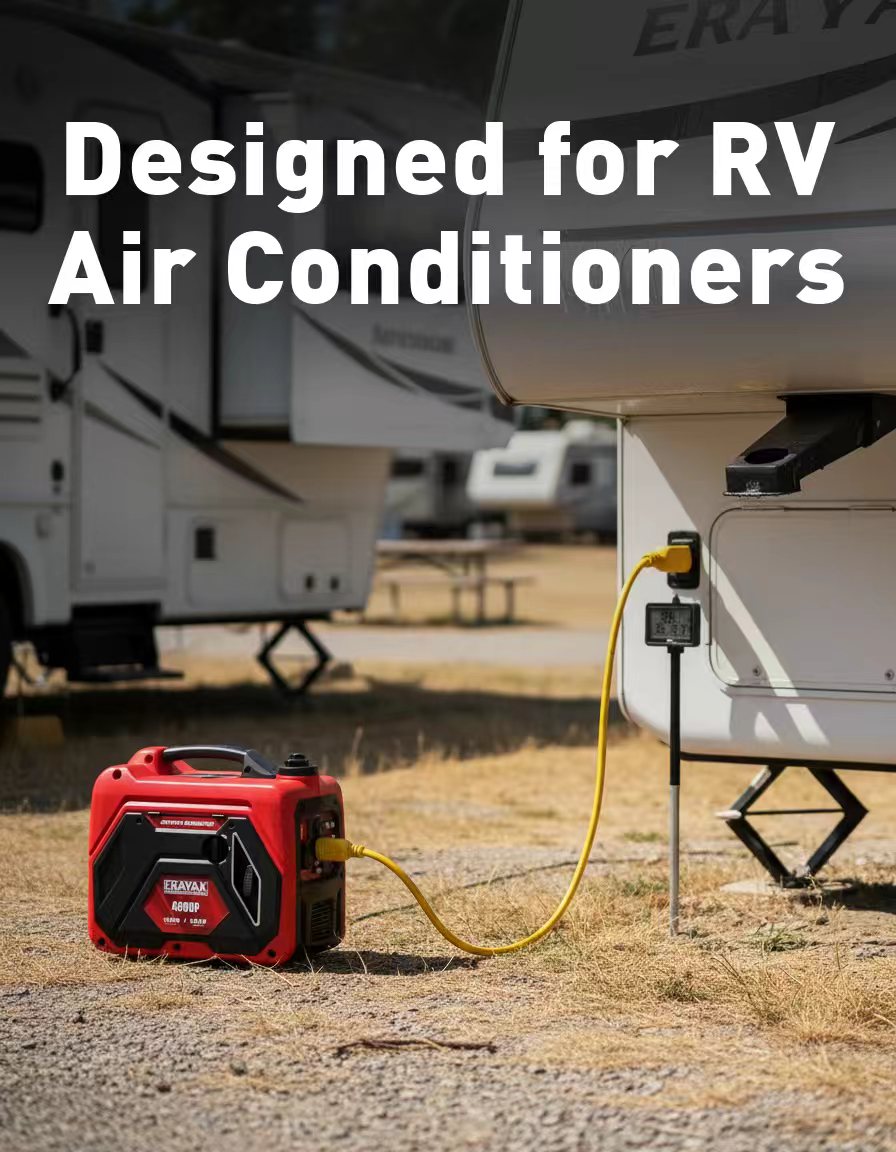

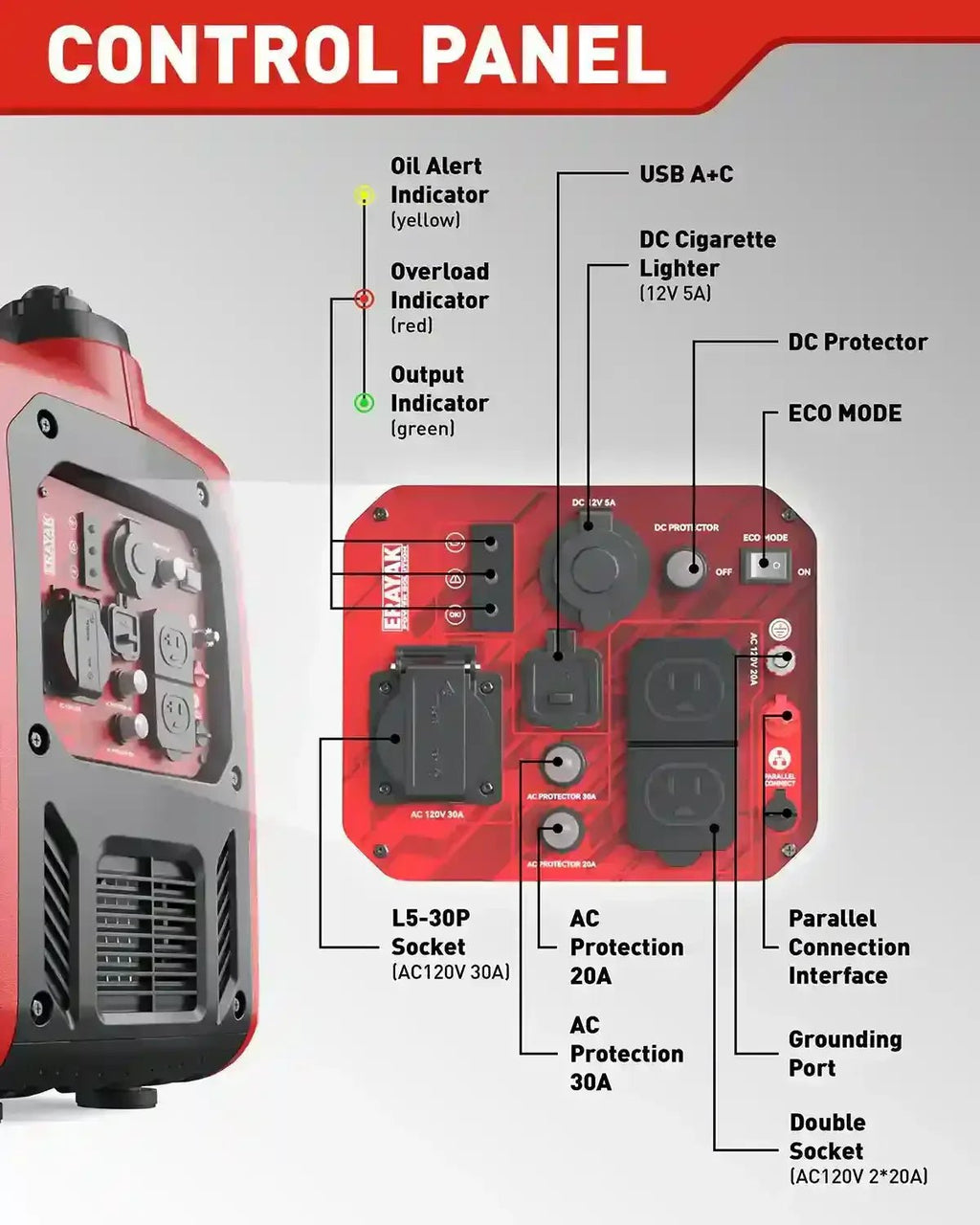

The 4500P has a 120V 30A NEMA L5-30R locking outlet. It does not have a built-in TT-30R receptacle and it is not a 120V/240V L14-30 generator. The included L5-30P to TT-30R adapter helps compatible 30A RV users connect more easily.

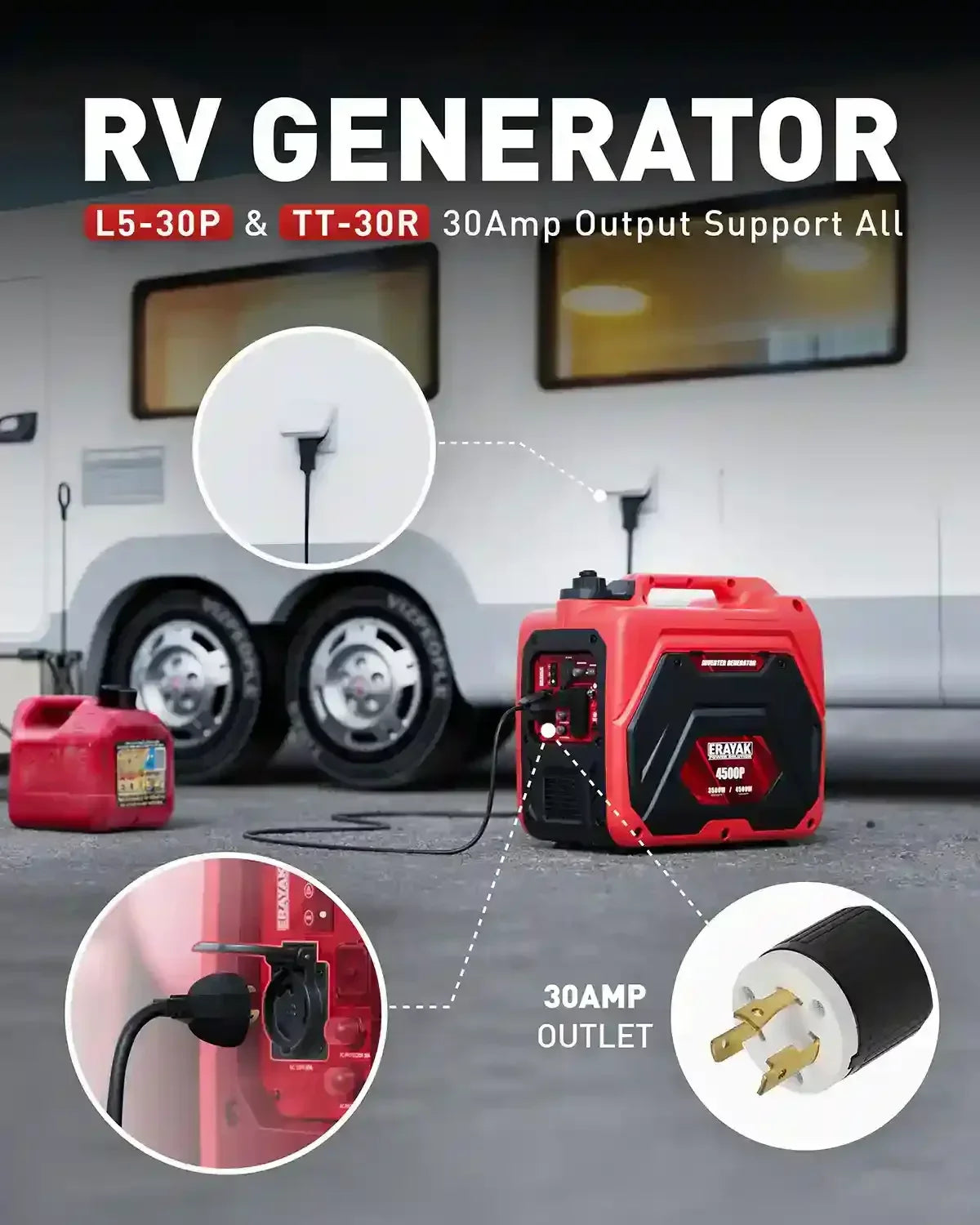

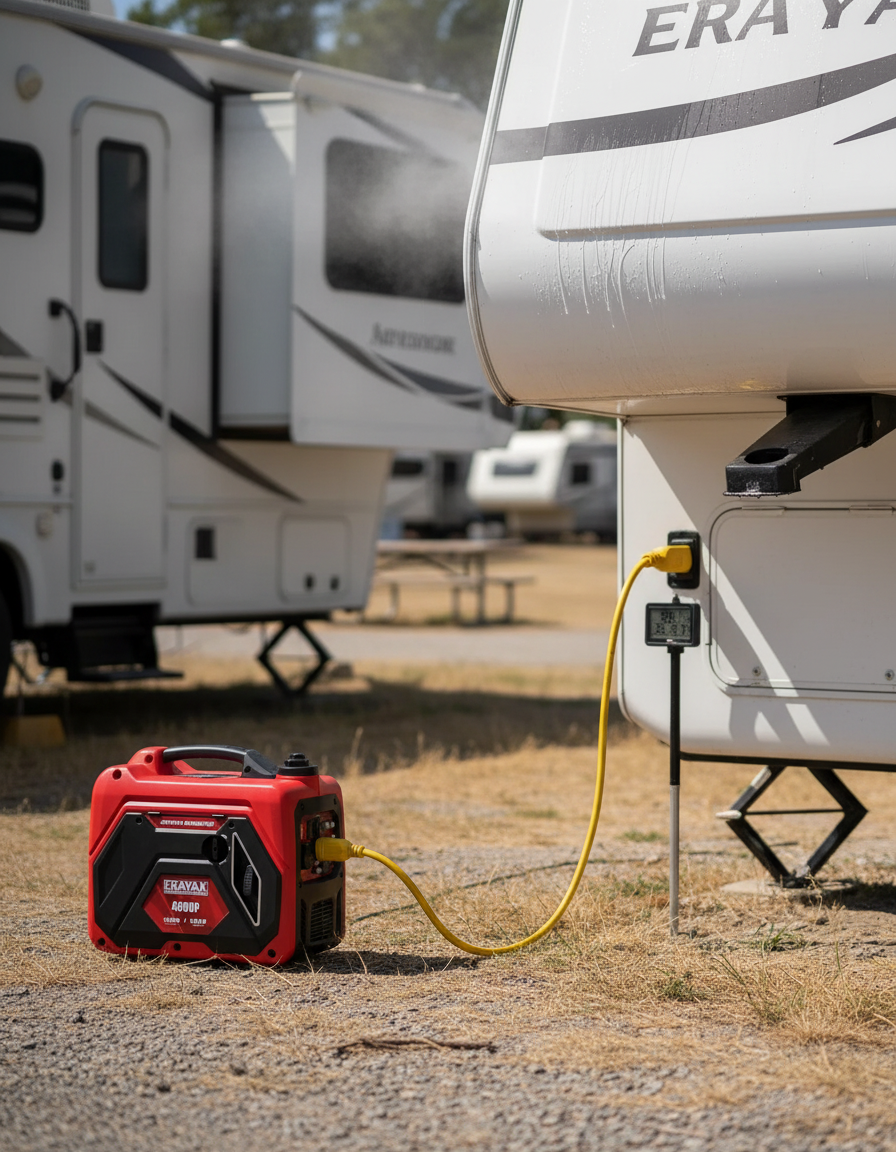

30A L5-30R Output with TT-30R Adapter
Use the generator's L5-30R locking outlet with the included L5-30P to TT-30R adapter for compatible 30A RV cords. Stay within the generator's 4500W peak / 3500W running output.
120V Power for Everyday Backup
The 4500P is a 120V generator for RV use and selected home essentials. It is not intended for 240V appliances, 240V transfer switch setups, or full 50A RV service.
| Connection Item | What It Means | Customer Benefit | Important Limit |
|---|---|---|---|
| 30A L5-30R outlet | 120V locking generator outlet | Secure 30A portable power connection | Not a 120V/240V L14-30 outlet |
| Included RV adapter | L5-30P to TT-30R adapter | Helps compatible 30A RV users connect their RV cord | Use only within rated output |
| 30A RV use | Common RV-style 120V connection with adapter | Useful for RV AC, fridge, lights, TV, charging, and essentials | Actual AC performance depends on starting surge and other connected loads |
Real Use Cases
Power That Fits the Way You Actually Use It.
The 4500P is strongest when the job is clear: RV comfort loads, camping weekends, outdoor power, and selected home essentials.
RV Camping
Run compatible RV essentials such as AC, refrigerator, lights, TV, charging, and small appliances when total load is planned correctly.
Portable AC Planning
Support many portable AC setups with room for smaller essentials when startup surge and total running watts stay within rating.

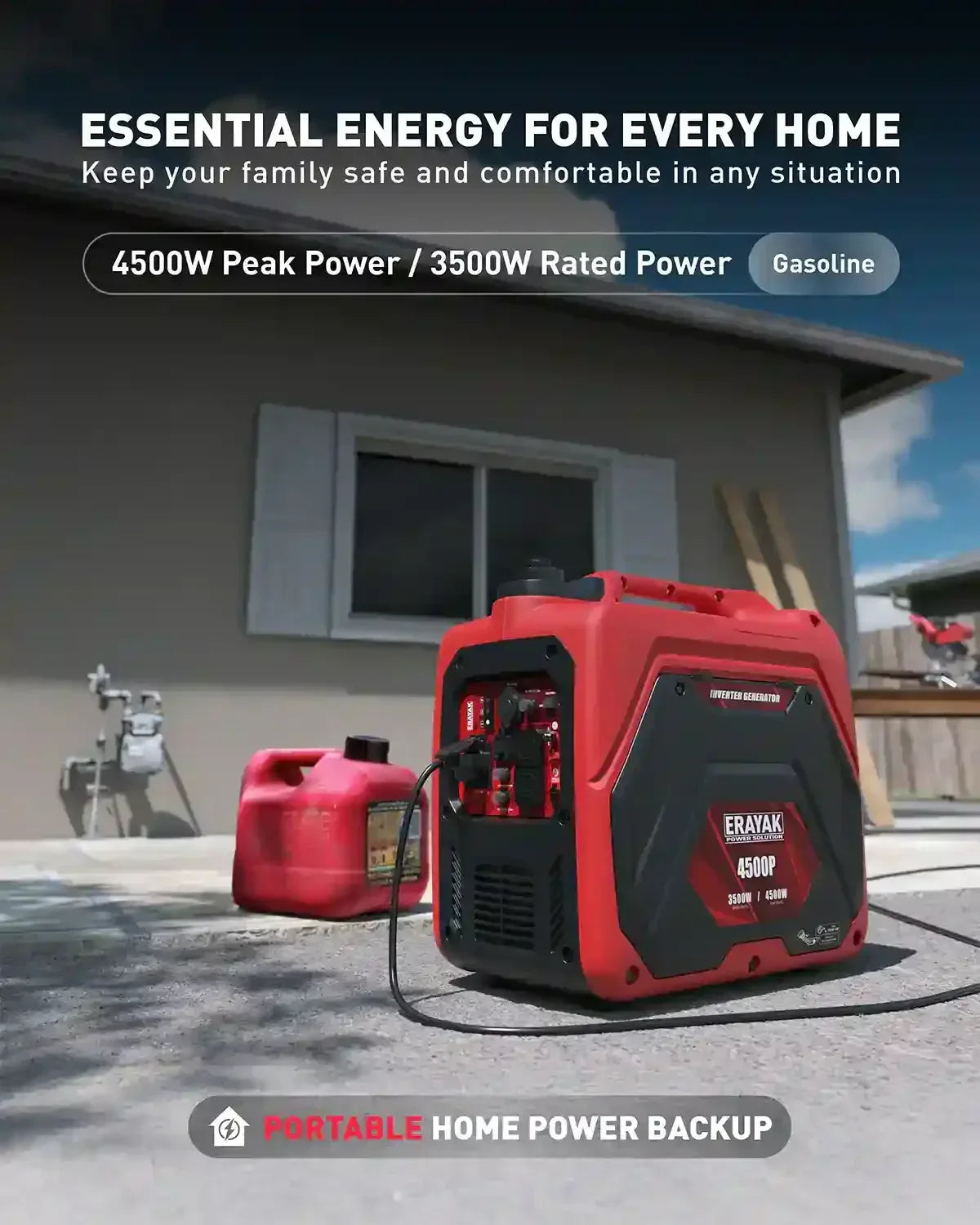

Home Essentials
Keep refrigerators, freezers, routers, lights, phones, TV, and compatible CPAP devices powered during outages.
Quieter Outdoor Power
60.5 dB operation and Eco Mode help reduce noise compared with many open-frame generators.
Electronics and Clean Power
Pure sine wave inverter output with THD < 1.2% supports many sensitive electronics and everyday devices.

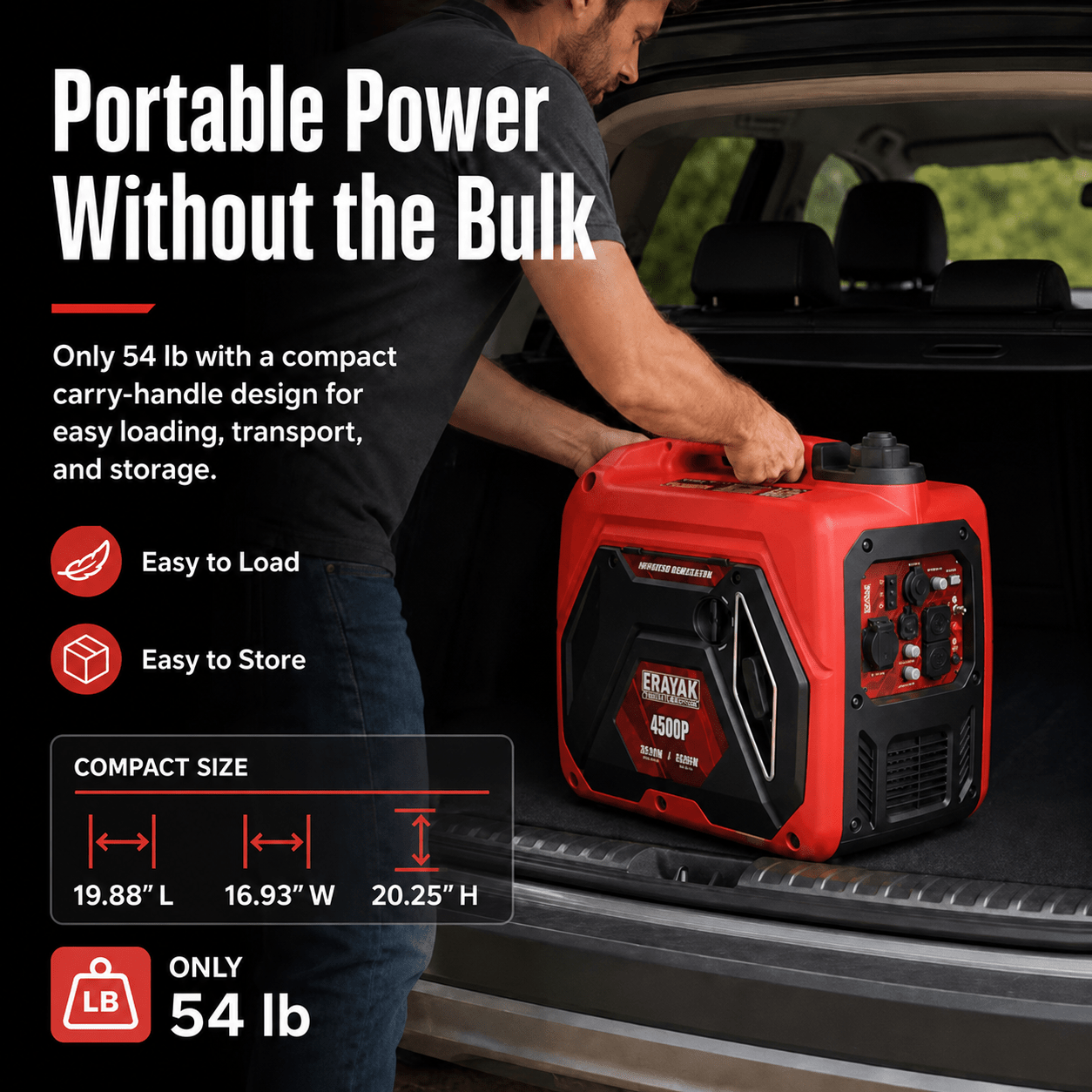

Portable Setup
At about 55 lb, the 4500P is easier to move, store, and load than many larger backup generators.
Choose the Right Erayak
4500P vs 4500PD vs 6800PD/PT
The right generator depends on fuel preference, RV setup, backup load, and whether you need 120V only or 120V/240V planning.
| Model | Best For | Fuel Type | Why Choose It |
|---|---|---|---|
| ERAYAK 4500P | RV camping, gas-only shoppers, portable AC planning, 120V essentials | Gasoline only | Choose it when you want a lightweight 4500W-class enclosed inverter generator without propane or 240V complexity. |
| ERAYAK 4500PD Series | RV backup, portable AC plus fridge, storm preparation, propane flexibility | Gasoline + propane | Choose it when dual-fuel flexibility matters for RV trips or outage planning. |
| ERAYAK 6800PD/PT Series | Higher-capacity selected loads, 120V/240V planning, sump/well pump scenarios | Dual fuel or tri-fuel depending on model | Choose it when you need more capacity, 120V/240V output, or a larger home backup plan. |
Simple Buying Rule
Choose 4500P for Gas-Only Simplicity. Step Up When Your Backup Plan Gets Bigger.
The 4500P is the right fit for shoppers who want straightforward 120V gas inverter power. If you want propane flexibility, compare the 4500PD. If you need 120V/240V output or larger selected-load backup, compare the 6800PD/PT Series.
Generator Safety
Operate Outdoors With Proper Ventilation.
The ERAYAK 4500P is a fuel-powered outdoor generator. Follow the user manual and basic carbon monoxide safety rules every time you operate it.
- Never run indoors.
- Never run in a garage.
- Never run near open windows, doors, or vents.
- Always operate outdoors with proper ventilation.
FAQ
ERAYAK 4500P Frequently Asked Questions
Is the ERAYAK 4500P gas only?
Yes. The ERAYAK 4500P is a gas-only inverter generator. It is not dual fuel, tri-fuel, propane powered, or natural gas powered.
Does the 4500P have electric start or remote start?
No. The 4500P uses manual recoil start. It does not have electric start or remote start.
What type of 30A outlet does the ERAYAK 4500P have?
The ERAYAK 4500P has a 120V 30A NEMA L5-30R locking outlet. It also includes an L5-30P to TT-30R RV adapter for compatible 30A RV cords.
Is the 4500P a 120V/240V generator?
No. The 4500P is a 120V generator. It is not a 120V/240V L14-30 generator and is not intended for 240V transfer switch setups.

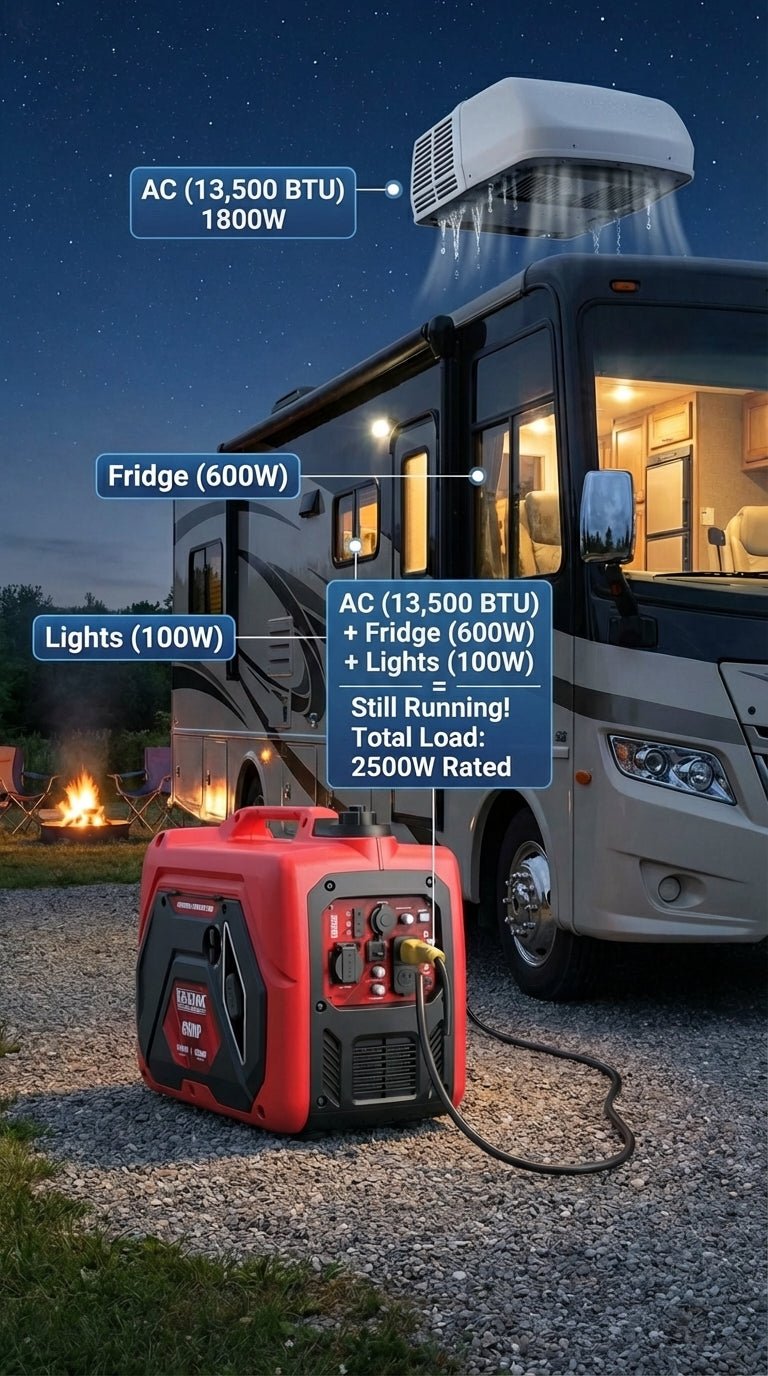

Can the 4500P run an RV air conditioner?
It can support many RV air conditioners when the AC starting surge is within the generator rating and other large loads are limited. Always check your AC nameplate and total connected load.
Can it run a portable AC and refrigerator?
Often yes, but both appliances may have compressor startup surge. Start the highest-surge appliance first, then add smaller loads one by one.
Can it power sensitive electronics?
Yes. The 4500P produces pure sine wave inverter output with THD < 1.2%, making it suitable for many sensitive devices such as laptops, phones, routers, TVs, cameras, and compatible CPAP machines.
How quiet is the ERAYAK 4500P?
The 4500P operates at 60.5 dB under rated test conditions. Eco Mode can help reduce engine speed, noise, and fuel consumption when the connected load is lower.
How long can it run?
With a 2.25-gallon fuel tank, the ERAYAK 4500P can run up to 8 hours depending on load, environment, and operating conditions.
Can I use it indoors?
No. Never run a fuel generator indoors, in a garage, near open windows, or in any enclosed or partially enclosed space. Always operate outdoors with proper ventilation.
| Warranty & Support | Coverage Details |
|---|---|
| Warranty Duration | 3-Year Limited Warranty for eligible ERAYAK 4500P purchases, subject to applicable warranty terms and verification. |
| 1-Year Core Component Protection | If a covered core-component failure is confirmed within the first year, the 4500P may qualify for ERAYAK replacement-unit service after technical diagnosis and warranty verification. |
| 3-Year Free Replacement Parts | For eligible warranty issues during the 3-year coverage period, ERAYAK provides covered replacement parts at no charge after technical verification. |
| Covered Core Parts | Covered replacement parts may include the carburetor, control or starting module, fuel tank, and other qualifying model-specific components. |
| Technical Support | ERAYAK provides troubleshooting assistance, fault diagnosis, replacement-part identification, setup guidance, and warranty support for the 4500P. |
| Email Support | support@erayakpower.com Customers can submit photos, videos, serial numbers, order information, and fault descriptions for technical review. |
| English Phone Support | (208) 242-7286 English-speaking support is available for product setup, troubleshooting, warranty, replacement parts, and service assistance. |
| WhatsApp Support | (208) 242-7286 Contact ERAYAK via WhatsApp for convenient technical and after-sales support. |
| Warranty Claim Process | Contact ERAYAK Technical Support with your proof of purchase, model number, serial number, and a description of the issue. Photos, videos, or troubleshooting information may be requested before the appropriate warranty solution is confirmed. |
Warranty Note: Warranty service is subject to the applicable ERAYAK warranty terms, proper operation and maintenance, proof of purchase, technical verification, and applicable exclusions.
| U.S. Shipping | Details |
|---|---|
| U.S. Warehouses | ERAYAK provides local U.S. fulfillment from warehouses in California, New Jersey, and Georgia. |
| Order Processing | Most orders are confirmed and prepared for shipment within 24 hours after order verification. |
| Tracking Number | A tracking number is provided after the order is shipped so customers can follow the delivery status online. |
| Standard Delivery | Most standard orders are estimated to arrive within 2–4 business days after shipment. |
| Expedited Processing | Expedited service is available for eligible orders. Expedited orders receive priority order confirmation, faster warehouse processing, and priority logistics handling. |
| 2-Business-Day Delivery Option | A 2-business-day delivery option may be available for eligible products and destinations. Availability and any additional shipping charges should be confirmed before ordering. |
| Shipping Coverage | Delivery is available across most locations within the contiguous United States. |
| Hawaii & Offshore Areas | For Hawaii, U.S. islands, offshore territories, or other locations outside the contiguous United States, please contact ERAYAK Support before placing your order to confirm shipping availability and cost. |
| Warehouse Assignment | Orders are fulfilled from the most suitable U.S. warehouse based on product availability and the customer's delivery location. |
| Shipping Support | Email: support@erayakpower.com Phone: (208) 242-7286 WhatsApp: (208) 242-7286 |
| Canada Shipping | Details |
|---|---|
| Canada Warehouses | ERAYAK provides local Canadian fulfillment from warehouses in Toronto and Vancouver. |
| Order Processing | Most orders are confirmed and prepared for shipment within 24 hours after order verification. |
| Tracking Number | A tracking number is provided after shipment so customers can monitor the delivery status online. |
| Shipping Coverage | Delivery is available across mainland Canada from ERAYAK's Toronto and Vancouver warehouse network. |
| Expedited Processing | Expedited service is available for eligible orders and provides priority order confirmation, faster warehouse processing, and priority logistics handling. |
| 2-Business-Day Delivery Option | A 2-business-day delivery option may be available for selected destinations and eligible products. Availability and additional shipping charges should be confirmed before ordering. |
| Warehouse Assignment | Orders are automatically assigned to the most suitable warehouse based on inventory availability and delivery destination. |
| Special Delivery Requests | Customers with remote-area, special-access, or urgent delivery requirements should contact ERAYAK Support before ordering. |
| Shipping Support | Email: support@erayakpower.com Phone: (208) 242-7286 WhatsApp: (208) 242-7286 |

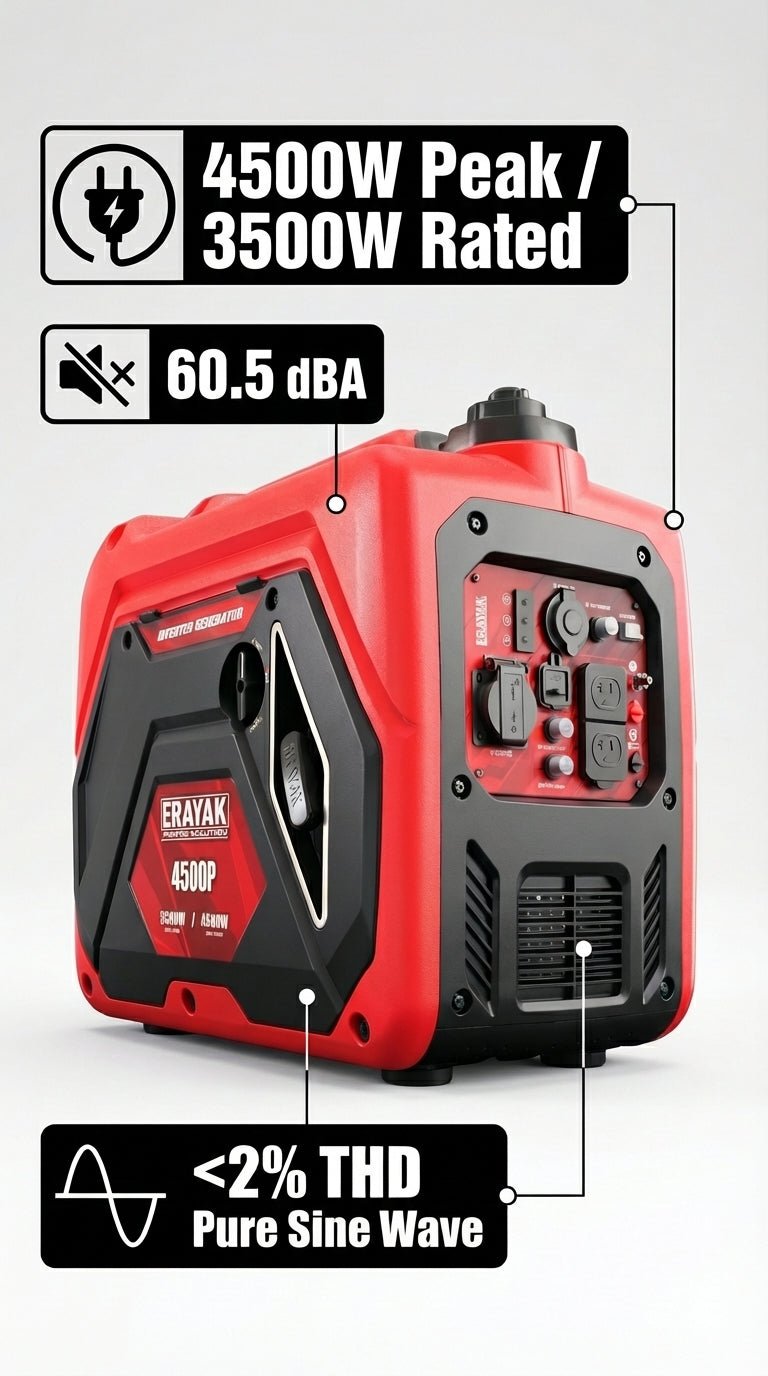

| Specification | Details |
|---|---|
| Model | ERAYAK 4500P |
| Peak Power | 4500W |
| Running Power | 3500W |
| Rated Voltage | 120V |
| Frequency | 60Hz |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 2.25 US gal (8.5L) |
| Recommended Gasoline | Unleaded Gasoline |
| ECO Mode | Load-based speed control for fuel savings and lower noise |
| Engine Displacement | 149.3cc |
| Engine Oil Capacity | 0.16 US gal (0.6L / 600mL) |
| Protection System | Low Oil + Overload Protection |

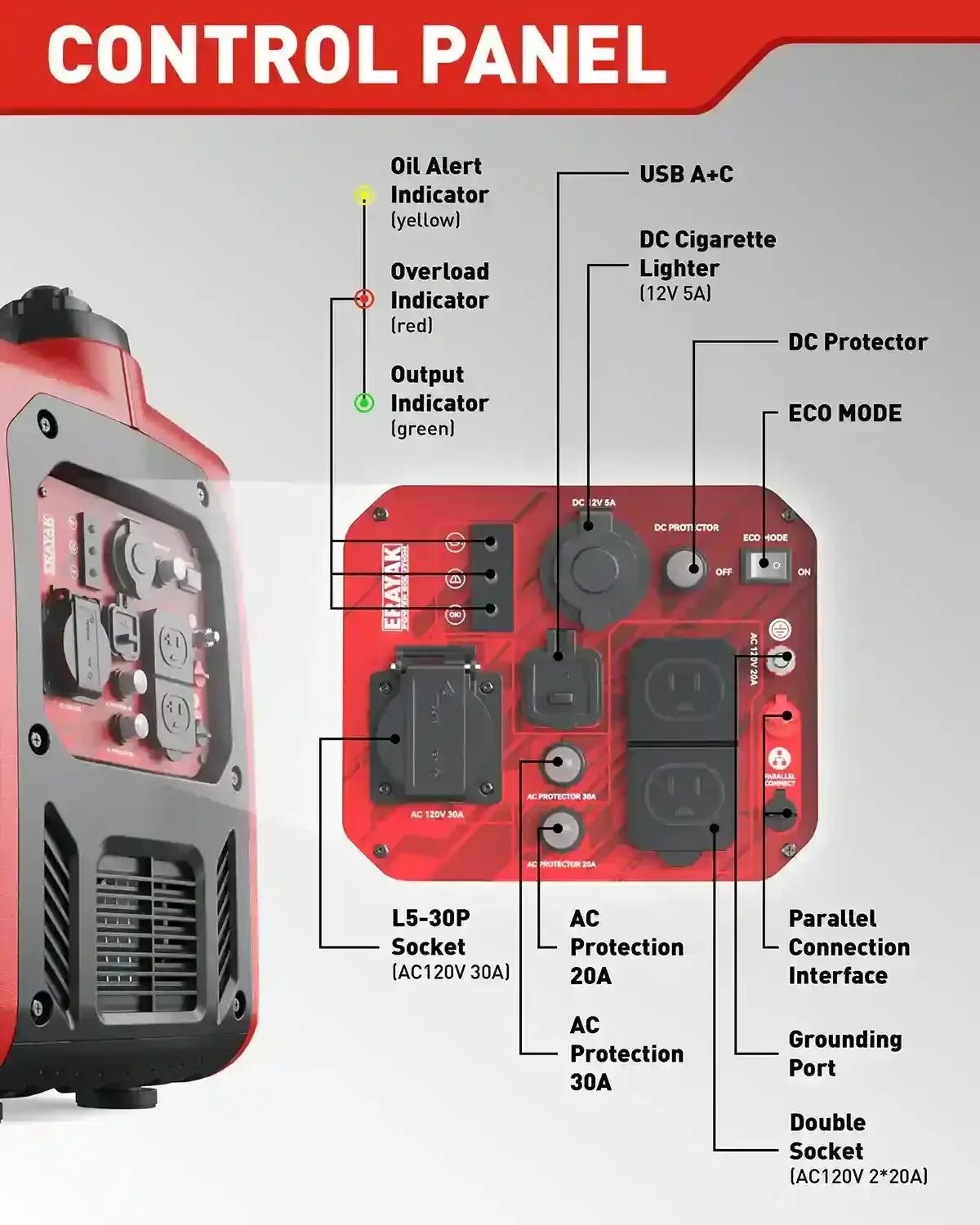

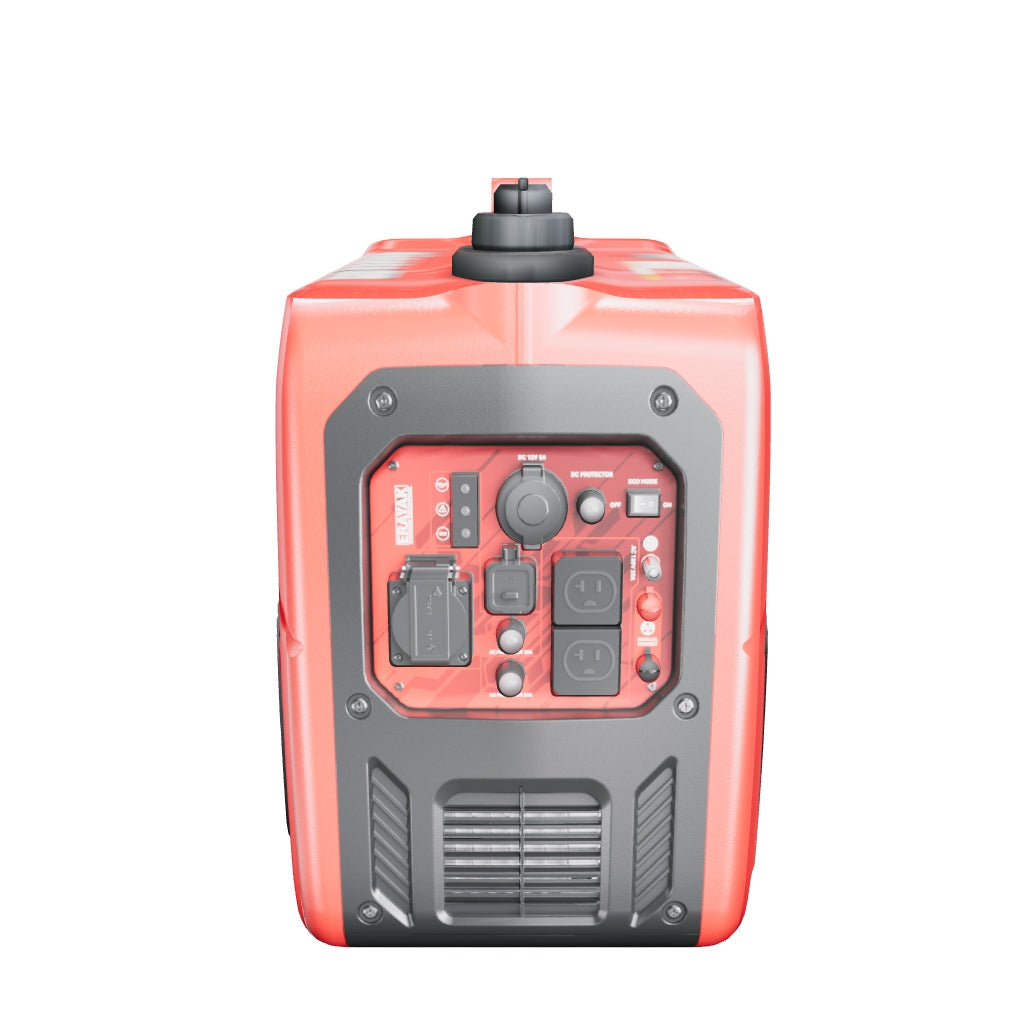

| 120V 30A Outlet | 1 × L5-30R |
| 120V 20A Outlets | 2 × 120V / 20A Household Receptacles |
| USB Ports | USB-A + USB-C |
| Parallel Connection | Yes — Built-in Parallel Interface |
| Ground Terminal | Yes |
| Starting System | Recoil Start |
| Weight | 54 lb (24.5 kg) |
| Dimensions | 19.88 × 16.93 × 20.25 in |
Performance Note: Runtime, fuel consumption, available output, and noise may vary with electrical load, fuel type, altitude, ambient temperature, maintenance condition, and operating environment.
1. ECO Mode
Adjusts engine speed according to electrical demand, helping reduce fuel consumption during lighter loads.
2. Load-Based Engine Speed
The engine doesn't need to operate at full speed continuously when power demand is low.
3. 2.25-Gallon Fuel Tank
The 8.5L tank provides practical runtime for RV, outdoor, and backup applications.
1. Low-Oil Protection
Helps protect internal engine components when the oil level becomes too low.
2. Overload Protection
Helps prevent electrical damage when connected loads exceed the generator's operating capacity.
3. Serviceable Engine Components
Routine oil, air filter, and spark plug maintenance helps support reliable long-term operation.
| Compatibility | Typical Equipment | Compatibility Details |
|---|---|---|
| RV Power | Travel trailers, RV refrigerators, converters, lighting and appliances | Suitable for many RV power applications. Always verify total running load and appliance starting surge before use. |
| 8,000–13,500 BTU RV / Portable AC | Small to medium RV air conditioners and portable AC units | Suitable for many AC units in this range when power requirements remain within generator capacity. Check compressor starting watts before use. |
| Home Backup | Refrigerator, freezer, lights, router, TV, chargers and selected small appliances | Suitable for essential 120V backup loads. Avoid operating multiple high-demand appliances at the same time. |
| Sump Pump | Basement sump pumps and drainage pumps | Suitable for many sump-pump applications when running and starting requirements remain within generator capacity. |
| Refrigerator & Freezer | Refrigerator, freezer and refrigerator-freezer combinations | Suitable for household refrigeration backup. Allow additional generator capacity for compressor startup. |
| Microwave & Small Appliances | Microwave, coffee maker, fan and other compatible appliances | Can power many common household appliances. Check rated and starting wattage before combining loads. |
| Sensitive Electronics | Computers, routers, TVs, chargers and compatible electronics | Suitable for many sensitive electronic loads. Always verify device voltage and power requirements before use. |
| Medical Equipment | Selected CPAP devices, monitoring equipment and other electrically powered devices | Confirm the equipment manufacturer's voltage, frequency and backup-power requirements before use. Do not use as the sole emergency source for life-critical equipment. |
| 120V Equipment | Compatible household, RV and outdoor equipment |
Supports compatible 120V equipment within the generator's available output. Verify running and starting watts before use. |
Important compatibility note: The ERAYAK 4500P provides up to 3500W rated / 4500W peak gasoline output. Appliance compatibility depends on total running load, motor or compressor starting surge, temperature, altitude and operating conditions. Always verify equipment power requirements before use.
• Simple Care. Reliable Power.
Keeping your ERAYAK 4500P in good condition is simple. Routine maintenance mainly involves engine oil, air filter, and spark plug.
Regular maintenance helps improve starting reliability, engine performance, and service life.
| Maintenance Item | When to Service | What to Do |
|---|---|---|
| Engine Oil | Before every use | Check oil level |
| First Oil Change | First 10 hours / 1 month | Replace engine oil |
| Regular Oil Change | Every 100 hours / 6 months | Replace engine oil |
| Air Filter | Before every use | Inspect |
| Air Filter Cleaning | Every 50 hours / 3 months | Clean |
| Spark Plug | Every 100 hours / 6 months | Inspect, clean & adjust |
| Spark Plug Replacement | Every 300 hours / 2 years | Replace |
| Spark Arrester | Every 100 hours / 6 months | Clean |
| Fuel Tank & Filter | Every year | Clean |
| Fuel Line | Every 2 years | Inspect / replace if needed |
Use whichever comes first: operating hours or calendar time.
1. Engine Oil — Essential Routine Maintenance
Check the oil level before every use.
First Oil Change
Change after 10 operating hours or 1 month.
Regular Oil Changes
Change every 100 operating hours or 6 months.
Oil Capacity: 0.16 gal (0.6L)
Recommended Oil: 10W-30 / 15W-40
Basic Oil Change
- Stop the generator and remove the maintenance cover.
- Remove the oil filler cap.
- Drain the used oil while the engine is still warm.
- Add the recommended engine oil.
- Check the oil level.
- Reinstall the oil filler cap and maintenance cover.
2. Air Filter — Inspect and Clean Regularly
Check the air filter before every use.
Clean it every 50 operating hours or 3 months.
Basic Cleaning
- Remove the maintenance and air cleaner covers.
- Remove the filter element.
- Clean it with a non-flammable or high-flash-point solvent.
- Allow it to dry.
- Soak it lightly in clean engine oil and squeeze out excess oil.
- Reinstall the filter and covers.
Never operate the generator without the air filter installed.
3. Spark Plug — Periodic Inspection
Inspect, clean and adjust the spark plug every:
100 operating hours or 6 months
Replace it every:
300 operating hours or 2 years
Recommended Spark Plug: F7RTC
Spark Plug Gap: 0.6–0.7 mm (0.024–0.028 in)
Check for:
- Carbon buildup
- Cracked insulation
- Electrode wear
- Incorrect gap
Clean the spark plug when necessary and replace it if damaged.
Dusty or Heavy-Use Conditions
More frequent maintenance is recommended when the generator is operated in dusty environments or for extended periods.
- Inspect and clean the air filter more frequently.
- Base maintenance intervals on actual operating hours for frequent or commercial use.
Important Reminder
Always stop the engine before performing maintenance. Use genuine or equivalent-quality replacement parts, and keep the generator properly maintained for reliable operation.
ERAYAK 4500P · Gas Only Inverter Generator
Lightweight Gas Power for Real Outdoor Use.
The ERAYAK 4500P is built for RV camping, portable AC planning, outdoor events, and 120V home essentials backup. It gives you 4500W peak / 3500W running inverter power in a compact 55 lb gas-only design.
Best Fit
Choose the 4500P when you want a quiet enclosed 120V gas inverter generator for RV weekends, camping, portable AC planning, and basic backup loads.
Compatibility First
What Can the ERAYAK 4500P Run?
Use this as a buying guide before checkout. Check the running watts and starting watts on your own appliance nameplates, especially for compressor-based loads such as air conditioners, refrigerators, and freezers.
| Appliance / Use Case | Typical Running Watts | 4500P Fit | Buying Note |
|---|---|---|---|
| RV air conditioner | Varies by model | Often Suitable | Many RV AC units can be supported when starting surge is within rating and other large loads are limited. |
| Portable air conditioner | 900-1,600W | Usually Suitable | Check compressor startup surge. Avoid starting multiple motor loads at the same time. |
| Refrigerator / freezer | 400-800W | Yes | Leave headroom for compressor startup and add smaller loads after the compressor is running. |
| Microwave or small kitchen appliance | 1,000-1,500W | One at a Time | Run one high-watt appliance at a time instead of stacking it with AC startup surge. |
| Router, lights, phones, TV, laptop | 100-500W combined | Yes | Low-THD inverter output is a strong fit for many everyday electronics. |
| Whole-home or 240V backup | Varies | Choose Larger | The 4500P is for 120V selected essentials, not 120V/240V transfer switch or whole-home backup. |
Load-planning tip: Start the appliance with the highest surge first, then add smaller loads. If you need a portable AC, refrigerator, microwave, and other essentials at the same time, compare total running watts and startup surge before choosing a generator size.
30A RV Setup
Understand the 4500P 30A Connection.
The 4500P has a 120V 30A NEMA L5-30R locking outlet. It does not have a built-in TT-30R receptacle and it is not a 120V/240V L14-30 generator. The included L5-30P to TT-30R adapter helps compatible 30A RV users connect more easily.
30A L5-30R Output with TT-30R Adapter

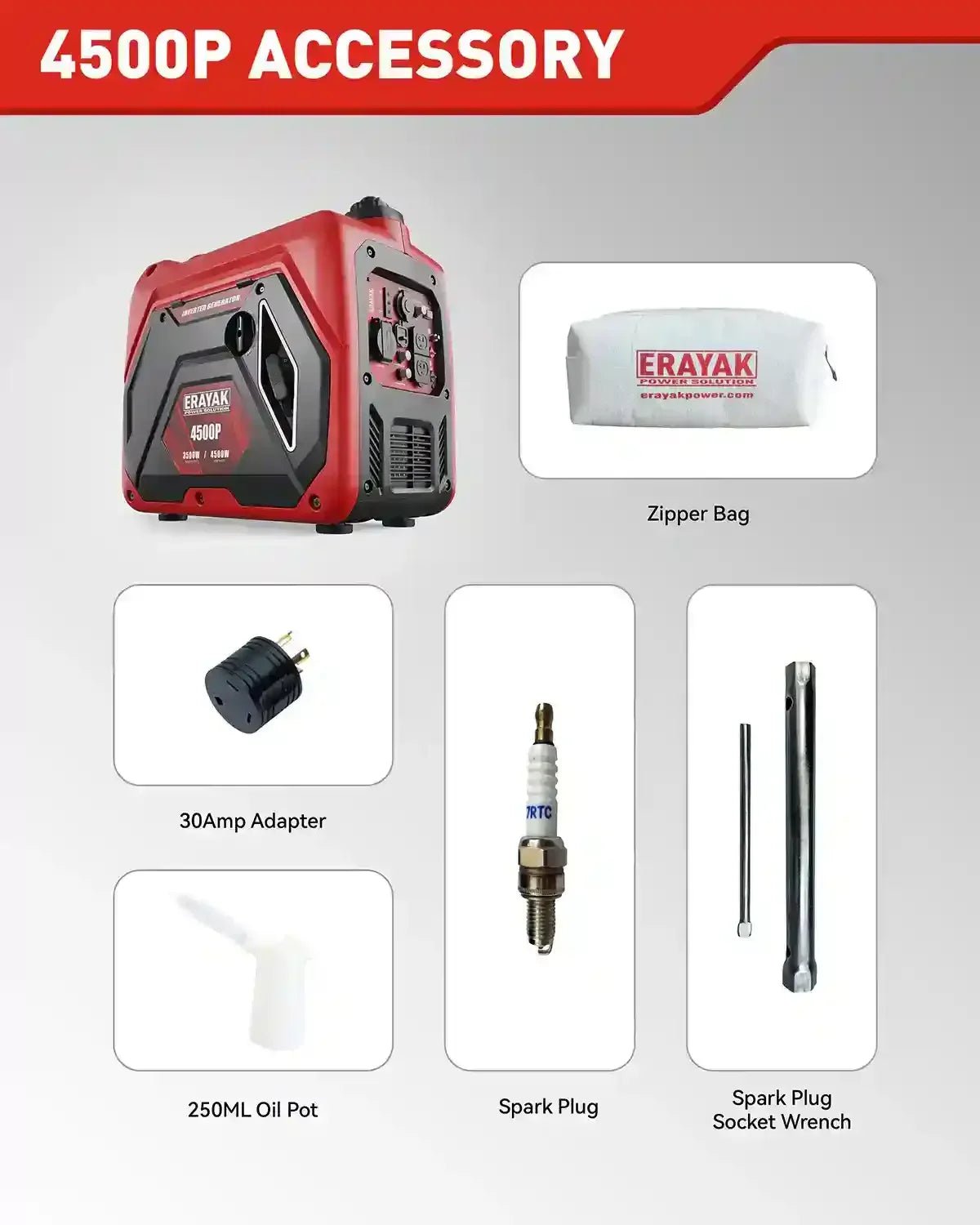

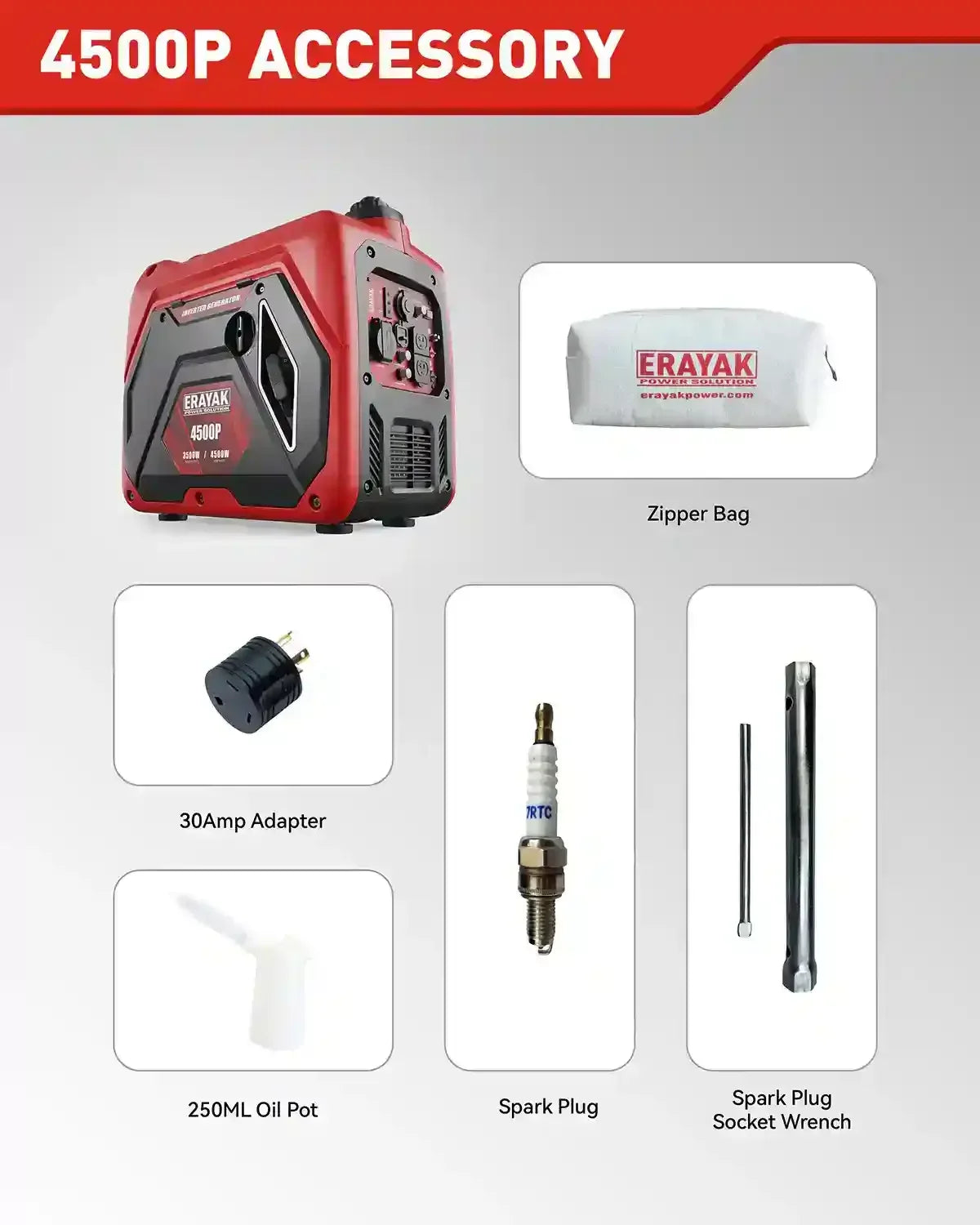

Use the generator's L5-30R locking outlet with the included L5-30P to TT-30R adapter for compatible 30A RV cords. Stay within the generator's 4500W peak / 3500W running output.
120V Power for Everyday Backup
The 4500P is a 120V generator for RV use and selected home essentials. It is not intended for 240V appliances, 240V transfer switch setups, or full 50A RV service.
| Connection Item | What It Means | Customer Benefit | Important Limit |
|---|---|---|---|
| 30A L5-30R outlet | 120V locking generator outlet | Secure 30A portable power connection | Not a 120V/240V L14-30 outlet |
| Included RV adapter | L5-30P to TT-30R adapter | Helps compatible 30A RV users connect their RV cord | Use only within rated output |
| 30A RV use | Common RV-style 120V connection with adapter | Useful for RV AC, fridge, lights, TV, charging, and essentials | Actual AC performance depends on starting surge and other connected loads |
Real Use Cases
Power That Fits the Way You Actually Use It.
The 4500P is strongest when the job is clear: RV comfort loads, camping weekends, outdoor power, and selected home essentials.
RV Camping
Run compatible RV essentials such as AC, refrigerator, lights, TV, charging, and small appliances when total load is planned correctly.
Portable AC Planning
Support many portable AC setups with room for smaller essentials when startup surge and total running watts stay within rating.
Home Essentials
Keep refrigerators, freezers, routers, lights, phones, TV, and compatible CPAP devices powered during outages.
Quieter Outdoor Power
60.5 dB operation and Eco Mode help reduce noise compared with many open-frame generators.
Electronics and Clean Power
Pure sine wave inverter output with THD < 1.2% supports many sensitive electronics and everyday devices.
Portable Setup
At about 55 lb, the 4500P is easier to move, store, and load than many larger backup generators.
Choose the Right Erayak
4500P vs 4500PD vs 6800PD/PT
The right generator depends on fuel preference, RV setup, backup load, and whether you need 120V only or 120V/240V planning.
| Model | Best For | Fuel Type | Why Choose It |
|---|---|---|---|
| ERAYAK 4500P | RV camping, gas-only shoppers, portable AC planning, 120V essentials | Gasoline only | Choose it when you want a lightweight 4500W-class enclosed inverter generator without propane or 240V complexity. |
| ERAYAK 4500PD Series | RV backup, portable AC plus fridge, storm preparation, propane flexibility | Gasoline + propane | Choose it when dual-fuel flexibility matters for RV trips or outage planning. |
| ERAYAK 6800PD/PT Series | Higher-capacity selected loads, 120V/240V planning, sump/well pump scenarios | Dual fuel or tri-fuel depending on model | Choose it when you need more capacity, 120V/240V output, or a larger home backup plan. |
Simple Buying Rule
Choose 4500P for Gas-Only Simplicity. Step Up When Your Backup Plan Gets Bigger.
The 4500P is the right fit for shoppers who want straightforward 120V gas inverter power. If you want propane flexibility, compare the 4500PD. If you need 120V/240V output or larger selected-load backup, compare the 6800PD/PT Series.
Generator Safety
Operate Outdoors With Proper Ventilation.
The ERAYAK 4500P is a fuel-powered outdoor generator. Follow the user manual and basic carbon monoxide safety rules every time you operate it.
- Never run indoors.
- Never run in a garage.
- Never run near open windows, doors, or vents.
- Always operate outdoors with proper ventilation.
FAQ
ERAYAK 4500P Frequently Asked Questions
Is the ERAYAK 4500P gas only?
Yes. The ERAYAK 4500P is a gas-only inverter generator. It is not dual fuel, tri-fuel, propane powered, or natural gas powered.
Does the 4500P have electric start or remote start?
No. The 4500P uses manual recoil start. It does not have electric start or remote start.
What type of 30A outlet does the ERAYAK 4500P have?
The ERAYAK 4500P has a 120V 30A NEMA L5-30R locking outlet. It also includes an L5-30P to TT-30R RV adapter for compatible 30A RV cords.
Is the 4500P a 120V/240V generator?
No. The 4500P is a 120V generator. It is not a 120V/240V L14-30 generator and is not intended for 240V transfer switch setups.
Can the 4500P run an RV air conditioner?
It can support many RV air conditioners when the AC starting surge is within the generator rating and other large loads are limited. Always check your AC nameplate and total connected load.
Can it run a portable AC and refrigerator?
Often yes, but both appliances may have compressor startup surge. Start the highest-surge appliance first, then add smaller loads one by one.
Can it power sensitive electronics?
Yes. The 4500P produces pure sine wave inverter output with THD < 1.2%, making it suitable for many sensitive devices such as laptops, phones, routers, TVs, cameras, and compatible CPAP machines.
How quiet is the ERAYAK 4500P?
The 4500P operates at 60.5 dB under rated test conditions. Eco Mode can help reduce engine speed, noise, and fuel consumption when the connected load is lower.
How long can it run?
With a 2.25-gallon fuel tank, the ERAYAK 4500P can run up to 8 hours depending on load, environment, and operating conditions.
Can I use it indoors?
No. Never run a fuel generator indoors, in a garage, near open windows, or in any enclosed or partially enclosed space. Always operate outdoors with proper ventilation.
| Warranty & Support | Coverage Details |
|---|---|
| Warranty Duration | 3-Year Limited Warranty for eligible ERAYAK 4500P purchases, subject to applicable warranty terms and verification. |
| 1-Year Core Component Protection | If a covered core-component failure is confirmed within the first year, the 4500P may qualify for ERAYAK replacement-unit service after technical diagnosis and warranty verification. |
| 3-Year Free Replacement Parts | For eligible warranty issues during the 3-year coverage period, ERAYAK provides covered replacement parts at no charge after technical verification. |
| Covered Core Parts | Covered replacement parts may include the carburetor, control or starting module, fuel tank, and other qualifying model-specific components. |
| Technical Support | ERAYAK provides troubleshooting assistance, fault diagnosis, replacement-part identification, setup guidance, and warranty support for the 4500P. |
| Email Support | support@erayakpower.com Customers can submit photos, videos, serial numbers, order information, and fault descriptions for technical review. |
| English Phone Support | (208) 242-7286 English-speaking support is available for product setup, troubleshooting, warranty, replacement parts, and service assistance. |
| WhatsApp Support | (208) 242-7286 Contact ERAYAK via WhatsApp for convenient technical and after-sales support. |
| Warranty Claim Process | Contact ERAYAK Technical Support with your proof of purchase, model number, serial number, and a description of the issue. Photos, videos, or troubleshooting information may be requested before the appropriate warranty solution is confirmed. |
Warranty Note: Warranty service is subject to the applicable ERAYAK warranty terms, proper operation and maintenance, proof of purchase, technical verification, and applicable exclusions.
| U.S. Shipping | Details |
|---|---|
| U.S. Warehouses | ERAYAK provides local U.S. fulfillment from warehouses in California, New Jersey, and Georgia. |
| Order Processing | Most orders are confirmed and prepared for shipment within 24 hours after order verification. |
| Tracking Number | A tracking number is provided after the order is shipped so customers can follow the delivery status online. |
| Standard Delivery | Most standard orders are estimated to arrive within 2–4 business days after shipment. |
| Expedited Processing | Expedited service is available for eligible orders. Expedited orders receive priority order confirmation, faster warehouse processing, and priority logistics handling. |
| 2-Business-Day Delivery Option | A 2-business-day delivery option may be available for eligible products and destinations. Availability and any additional shipping charges should be confirmed before ordering. |
| Shipping Coverage | Delivery is available across most locations within the contiguous United States. |
| Hawaii & Offshore Areas | For Hawaii, U.S. islands, offshore territories, or other locations outside the contiguous United States, please contact ERAYAK Support before placing your order to confirm shipping availability and cost. |
| Warehouse Assignment | Orders are fulfilled from the most suitable U.S. warehouse based on product availability and the customer's delivery location. |
| Shipping Support | Email: support@erayakpower.com Phone: (208) 242-7286 WhatsApp: (208) 242-7286 |
| Canada Shipping | Details |
|---|---|
| Canada Warehouses | ERAYAK provides local Canadian fulfillment from warehouses in Toronto and Vancouver. |
| Order Processing | Most orders are confirmed and prepared for shipment within 24 hours after order verification. |
| Tracking Number | A tracking number is provided after shipment so customers can monitor the delivery status online. |
| Shipping Coverage | Delivery is available across mainland Canada from ERAYAK's Toronto and Vancouver warehouse network. |
| Expedited Processing | Expedited service is available for eligible orders and provides priority order confirmation, faster warehouse processing, and priority logistics handling. |
| 2-Business-Day Delivery Option | A 2-business-day delivery option may be available for selected destinations and eligible products. Availability and additional shipping charges should be confirmed before ordering. |
| Warehouse Assignment | Orders are automatically assigned to the most suitable warehouse based on inventory availability and delivery destination. |
| Special Delivery Requests | Customers with remote-area, special-access, or urgent delivery requirements should contact ERAYAK Support before ordering. |
| Shipping Support | Email: support@erayakpower.com Phone: (208) 242-7286 WhatsApp: (208) 242-7286 |
| Specification | Details |
|---|---|
| Model | ERAYAK 4500P |
| Peak Power | 4500W |
| Running Power | 3500W |
| Rated Voltage | 120V |
| Frequency | 60Hz |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 2.25 US gal (8.5L) |
| Recommended Gasoline | Unleaded Gasoline |
| ECO Mode | Load-based speed control for fuel savings and lower noise |
| Engine Displacement | 149.3cc |
| Engine Oil Capacity | 0.16 US gal (0.6L / 600mL) |
| Protection System | Low Oil + Overload Protection |
| 120V 30A Outlet | 1 × L5-30R |
| 120V 20A Outlets | 2 × 120V / 20A Household Receptacles |
| USB Ports | USB-A + USB-C |
| Parallel Connection | Yes — Built-in Parallel Interface |
| Ground Terminal | Yes |
| Starting System | Recoil Start |
| Weight | 54 lb (24.5 kg) |
| Dimensions | 19.88 × 16.93 × 20.25 in |
Performance Note: Runtime, fuel consumption, available output, and noise may vary with electrical load, fuel type, altitude, ambient temperature, maintenance condition, and operating environment.
1. ECO Mode
Adjusts engine speed according to electrical demand, helping reduce fuel consumption during lighter loads.
2. Load-Based Engine Speed
The engine doesn't need to operate at full speed continuously when power demand is low.
3. 2.25-Gallon Fuel Tank
The 8.5L tank provides practical runtime for RV, outdoor, and backup applications.
1. Low-Oil Protection
Helps protect internal engine components when the oil level becomes too low.
2. Overload Protection
Helps prevent electrical damage when connected loads exceed the generator's operating capacity.
3. Serviceable Engine Components
Routine oil, air filter, and spark plug maintenance helps support reliable long-term operation.
| Compatibility | Typical Equipment | Compatibility Details |
|---|---|---|
| RV Power | Travel trailers, RV refrigerators, converters, lighting and appliances | Suitable for many RV power applications. Always verify total running load and appliance starting surge before use. |
| 8,000–13,500 BTU RV / Portable AC | Small to medium RV air conditioners and portable AC units | Suitable for many AC units in this range when power requirements remain within generator capacity. Check compressor starting watts before use. |
| Home Backup | Refrigerator, freezer, lights, router, TV, chargers and selected small appliances | Suitable for essential 120V backup loads. Avoid operating multiple high-demand appliances at the same time. |
| Sump Pump | Basement sump pumps and drainage pumps | Suitable for many sump-pump applications when running and starting requirements remain within generator capacity. |
| Refrigerator & Freezer | Refrigerator, freezer and refrigerator-freezer combinations | Suitable for household refrigeration backup. Allow additional generator capacity for compressor startup. |
| Microwave & Small Appliances | Microwave, coffee maker, fan and other compatible appliances | Can power many common household appliances. Check rated and starting wattage before combining loads. |
| Sensitive Electronics | Computers, routers, TVs, chargers and compatible electronics | Suitable for many sensitive electronic loads. Always verify device voltage and power requirements before use. |
| Medical Equipment | Selected CPAP devices, monitoring equipment and other electrically powered devices | Confirm the equipment manufacturer's voltage, frequency and backup-power requirements before use. Do not use as the sole emergency source for life-critical equipment. |
| 120V Equipment | Compatible household, RV and outdoor equipment |
Supports compatible 120V equipment within the generator's available output. Verify running and starting watts before use. |
Important compatibility note: The ERAYAK 4500P provides up to 3500W rated / 4500W peak gasoline output. Appliance compatibility depends on total running load, motor or compressor starting surge, temperature, altitude and operating conditions. Always verify equipment power requirements before use.
• Simple Care. Reliable Power.
Keeping your ERAYAK 4500P in good condition is simple. Routine maintenance mainly involves engine oil, air filter, and spark plug.
Regular maintenance helps improve starting reliability, engine performance, and service life.
| Maintenance Item | When to Service | What to Do |
|---|---|---|
| Engine Oil | Before every use | Check oil level |
| First Oil Change | First 10 hours / 1 month | Replace engine oil |
| Regular Oil Change | Every 100 hours / 6 months | Replace engine oil |
| Air Filter | Before every use | Inspect |
| Air Filter Cleaning | Every 50 hours / 3 months | Clean |
| Spark Plug | Every 100 hours / 6 months | Inspect, clean & adjust |
| Spark Plug Replacement | Every 300 hours / 2 years | Replace |
| Spark Arrester | Every 100 hours / 6 months | Clean |
| Fuel Tank & Filter | Every year | Clean |
| Fuel Line | Every 2 years | Inspect / replace if needed |
Use whichever comes first: operating hours or calendar time.
1. Engine Oil — Essential Routine Maintenance
Check the oil level before every use.
First Oil Change
Change after 10 operating hours or 1 month.
Regular Oil Changes
Change every 100 operating hours or 6 months.
Oil Capacity: 0.16 gal (0.6L)
Recommended Oil: 10W-30 / 15W-40
Basic Oil Change
- Stop the generator and remove the maintenance cover.
- Remove the oil filler cap.
- Drain the used oil while the engine is still warm.
- Add the recommended engine oil.
- Check the oil level.
- Reinstall the oil filler cap and maintenance cover.
2. Air Filter — Inspect and Clean Regularly
Check the air filter before every use.
Clean it every 50 operating hours or 3 months.
Basic Cleaning
- Remove the maintenance and air cleaner covers.
- Remove the filter element.
- Clean it with a non-flammable or high-flash-point solvent.
- Allow it to dry.
- Soak it lightly in clean engine oil and squeeze out excess oil.
- Reinstall the filter and covers.
Never operate the generator without the air filter installed.
3. Spark Plug — Periodic Inspection
Inspect, clean and adjust the spark plug every:
100 operating hours or 6 months
Replace it every:
300 operating hours or 2 years
Recommended Spark Plug: F7RTC
Spark Plug Gap: 0.6–0.7 mm (0.024–0.028 in)
Check for:
- Carbon buildup
- Cracked insulation
- Electrode wear
- Incorrect gap
Clean the spark plug when necessary and replace it if damaged.
Dusty or Heavy-Use Conditions
More frequent maintenance is recommended when the generator is operated in dusty environments or for extended periods.
- Inspect and clean the air filter more frequently.
- Base maintenance intervals on actual operating hours for frequent or commercial use.
Important Reminder
Always stop the engine before performing maintenance. Use genuine or equivalent-quality replacement parts, and keep the generator properly maintained for reliable operation.
Frequently Asked Questions
-
Is the ERAYAK 4500P inverter generator gas only?
Yes, the ERAYAK 4500P is a gas-only inverter generator. It does not operate on propane, natural gas, or other fuel types.
-
Does the 4500P have an electric or remote start feature?
No, the ERAYAK 4500P utilizes a manual recoil start. It does not come equipped with electric start or remote start capabilities.
-
What type of outlet does the ERAYAK 4500P provide for RV connections?
The ERAYAK 4500P features a 120V 30A NEMA L5-30R locking outlet, and it also includes an L5-30P to TT-30R adapter for compatible 30A RV cords.
-
Is the 4500P suitable for 240V appliances?
No, the ERAYAK 4500P is a 120V generator only. It is not designed for 240V transfer switch setups or to power 240V appliances.
-
Can the 4500P run an RV air conditioner?
Yes, the 4500P can support many RV air conditioners, provided that the AC's starting surge is within the generator's rated capacity and that other large loads are managed.
-
How quiet is the ERAYAK 4500P during operation?
The 4500P operates at a noise level of 60.5 dB under rated conditions. Its Eco Mode can help reduce noise further when the load is lower.
-
What is the runtime for the ERAYAK 4500P?
With its 2.25-gallon fuel tank, the ERAYAK 4500P can run for up to 8 hours, depending on the load and other operating conditions.
-
Can I use the ERAYAK 4500P indoors?
No, the 4500P should never be used indoors or in enclosed spaces, such as garages. Always operate it outdoors with proper ventilation to ensure safety.
